Emergency Override Button Inspection

EMERGENCY OVERRIDE BUTTON INSPECTION

1. Switch the ignition to off.

2. Verify that the selector lever is in the P position.

3. Without the brake pedal depressed, verify that the selector lever cannot be shifted from the P position.

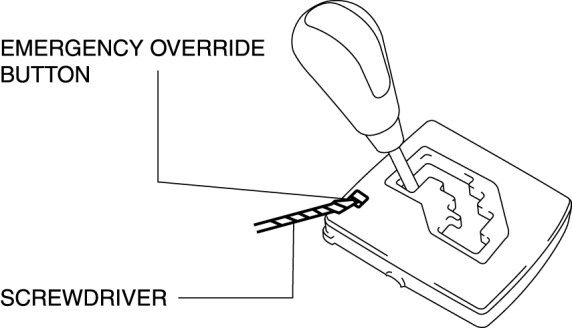

4. Remove the panel cover using a tape-wrapped flathead screwdriver as shown in the figure.






5. Insert the flathead screwdriver into the emergency override hole and push it down.

6. Verify that the selector lever can be shifted from the P position.

- If there is any malfunction, replace the selector lever component. Service and Repair
