Input/Turbine Speed Sensor Inspection [FS5A-EL]




INPUT/TURBINE SPEED SENSOR INSPECTION [FS5A-EL]

CAUTION:
- Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.

On-Vehicle Inspection

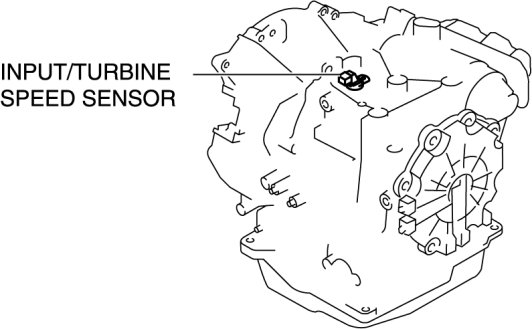

1. Disconnect the input/turbine speed sensor connector.
a. Disconnect the negative battery cable.

b. Remove the battery and battery tray. Removal and Replacement

c. Remove the air cleaner component. Service and Repair

d. Disconnect the input/turbine speed sensor connector.

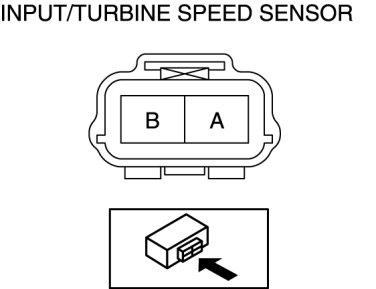

2. Measure the resistance between input/turbine speed sensor terminals A and B.






- If there is any malfunction, replace the input/turbine speed sensor. Input/Turbine Speed Sensor Removal/Installation [FS5A-EL]

Input/turbine speed sensor specification
- 250-600 ohms

Off-Vehicle Inspection

1. Measure the resistance between input/turbine speed sensor terminals A and B.






- If there is any malfunction, replace the input/turbine speed sensor. Input/Turbine Speed Sensor Removal/Installation [FS5A-EL]

Input/turbine speed sensor specification
- 250-600 ohms
