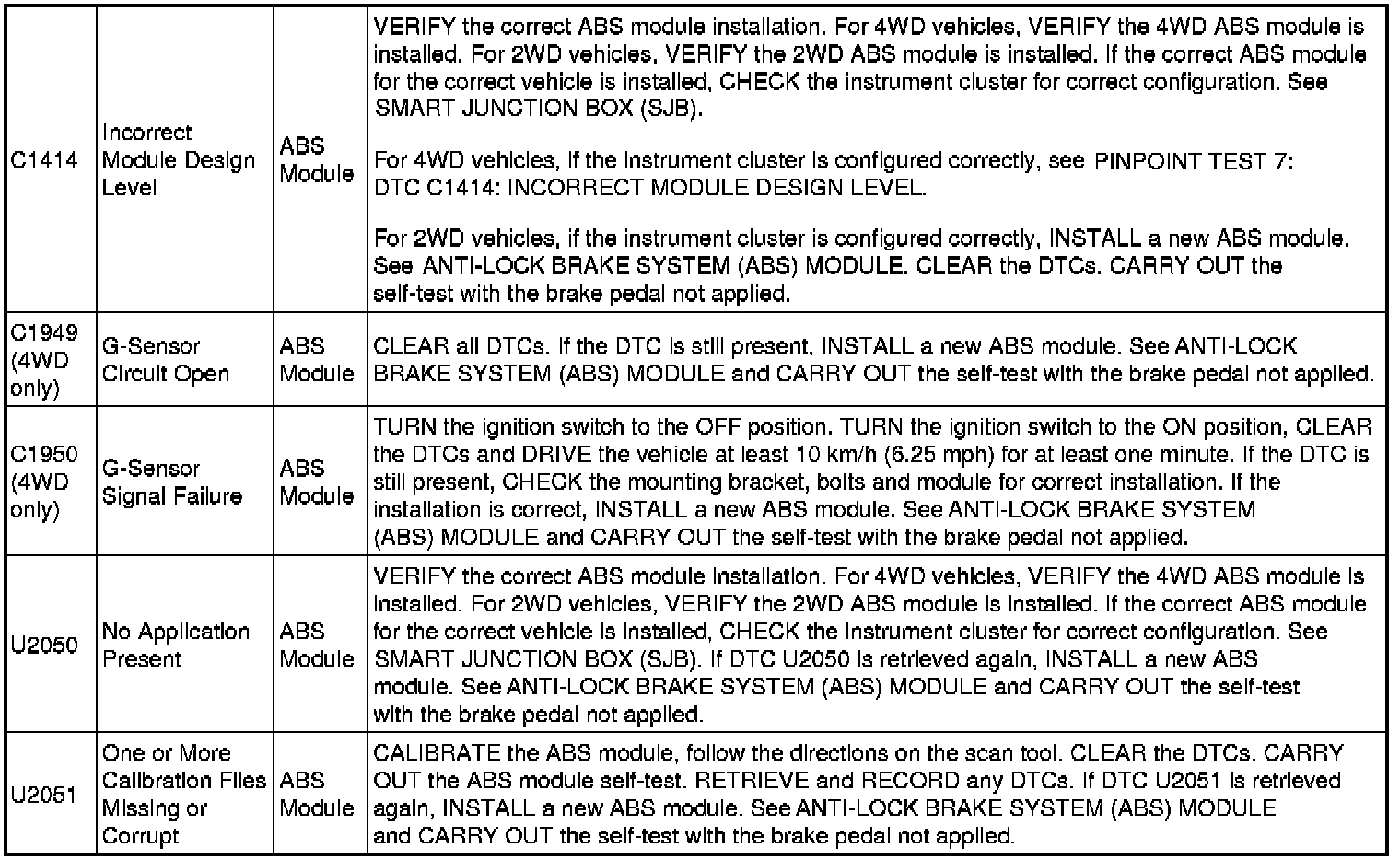

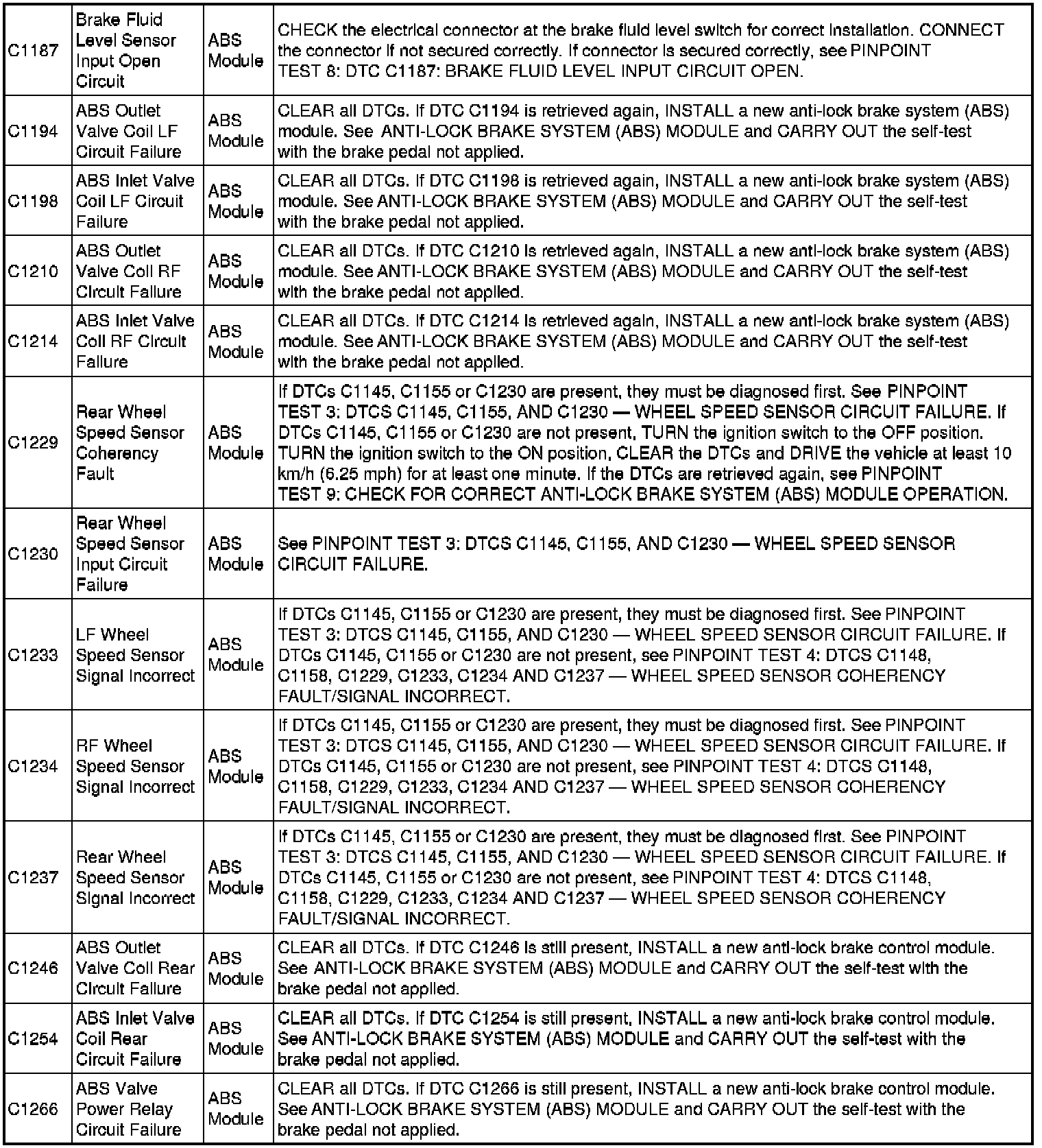

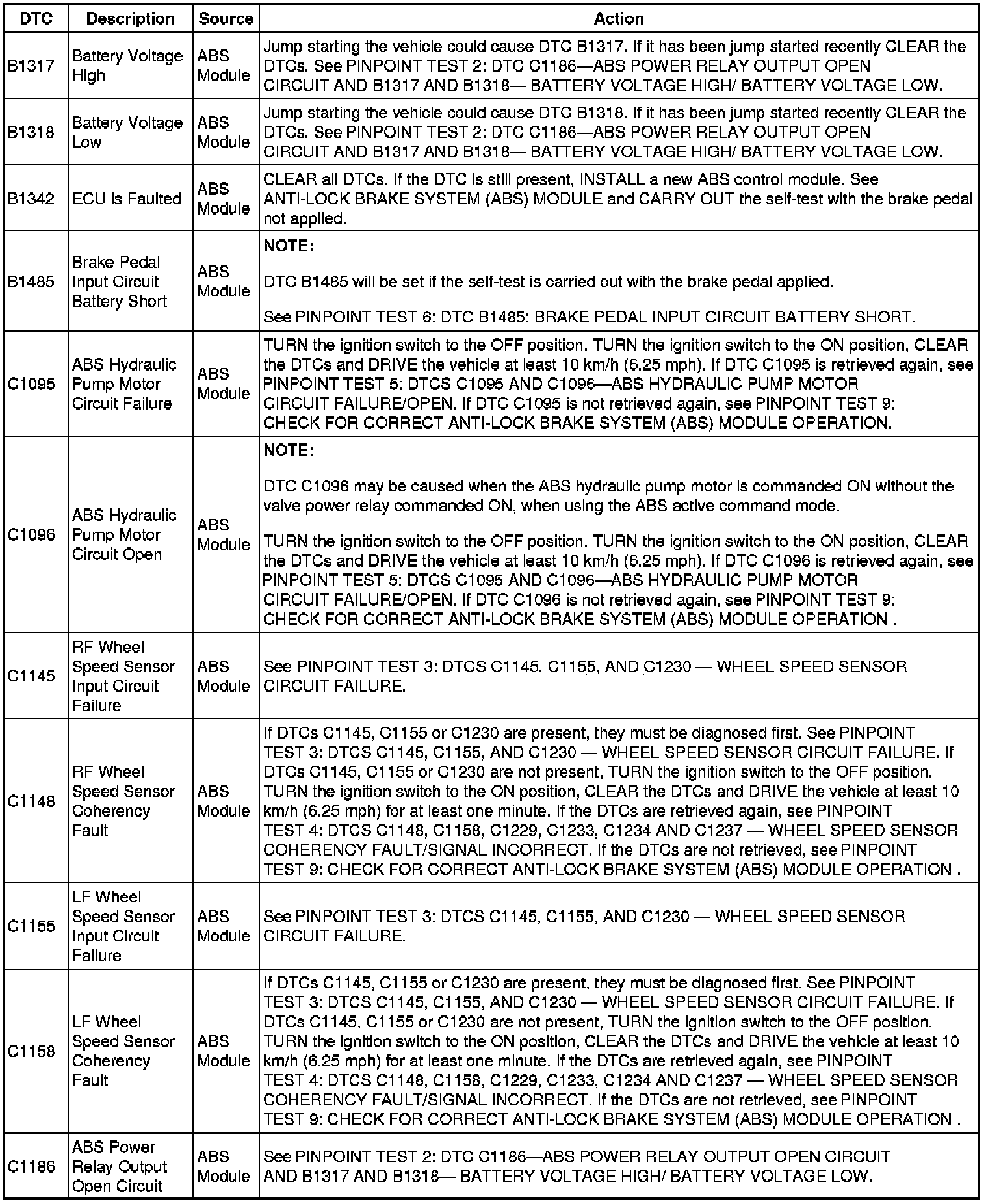

Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index
ANTI-LOCK BRAKE SYSTEM (ABS) MODULE DIAGNOSTIC TROUBLE CODE (DTC) INDEX
NOTE:If DTCs C1095, C1096, C1148, C1158, C1229 and C1950 are set, simply clearing the DTCs after a repair will not turn the yellow ABS/red brake warning light off. Turn the ignition switch to the OFF position. Turn the ignition switch to the ON position, clear the DTCs and drive the vehicle at least 10 km/h (6.25 mph) for the ABS module to confirm normal operation of the system. After this has been completed, the yellow ABS/red brake warning light will turn off.Anti-Lock Brake System (ABS) Module Diagnostic Trouble Code (DTC) Index
