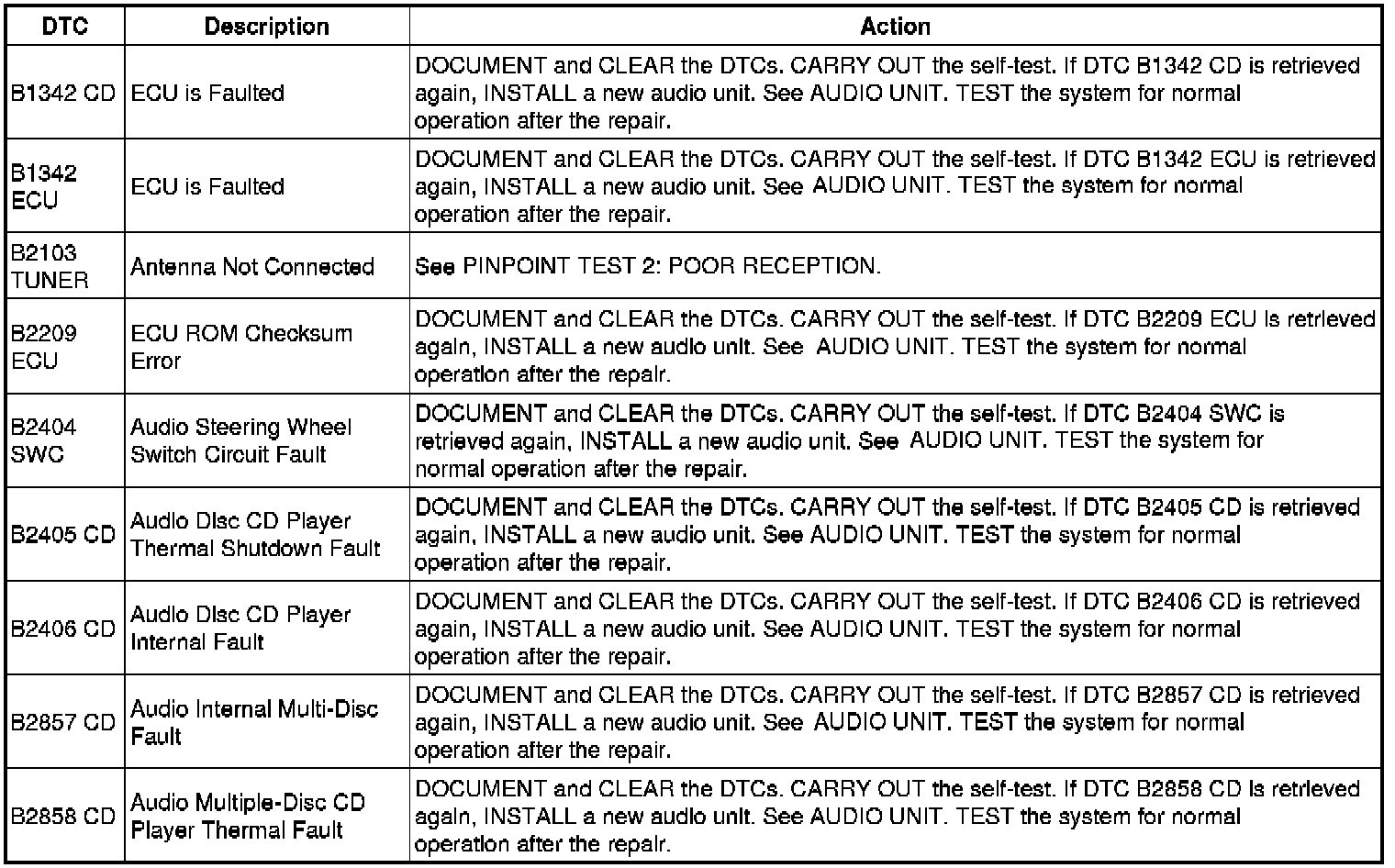

Audio Unit Diagnostic Trouble Code (DTC) Index
AUDIO UNIT DIAGNOSTIC TROUBLE CODE (DTC) INDEXCAUTION:For the CD6 the audio unit, must be placed in shipment mode before removal. See Programming and Relearning. Failure to follow this instruction may result in damage to the audio unit.NOTE:The audio unit DTCs are only retrieved by using the speaker walk-around test.
B1342-B2858:
