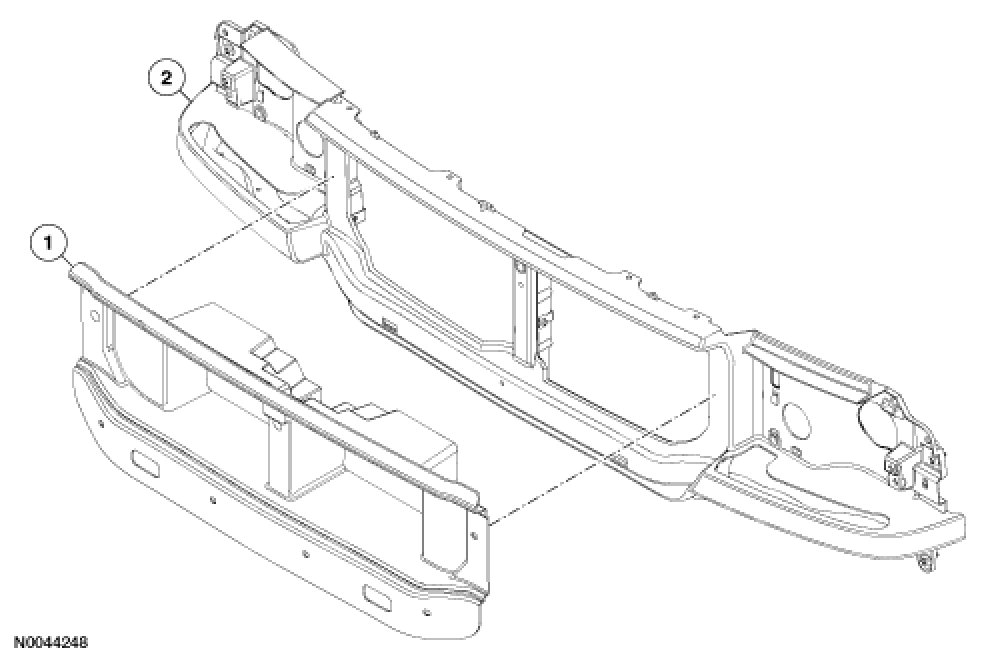

Radiator Grille Opening Panel
RADIATOR GRILLE OPENING PANELRemoval and Installation1. Remove the headlamp assemblies. See
Headlamp Bulb.
1. Remove the 4 screws from the top of the radiator grille.
1. Remove the radiator grille.
-
Position the radiator grille outward and release the retaining clips.
2. Remove the radiator grille opening panel by pulling outward on the panel.
3. To install, reverse the removal procedure.
