Headliner: Service and Repair

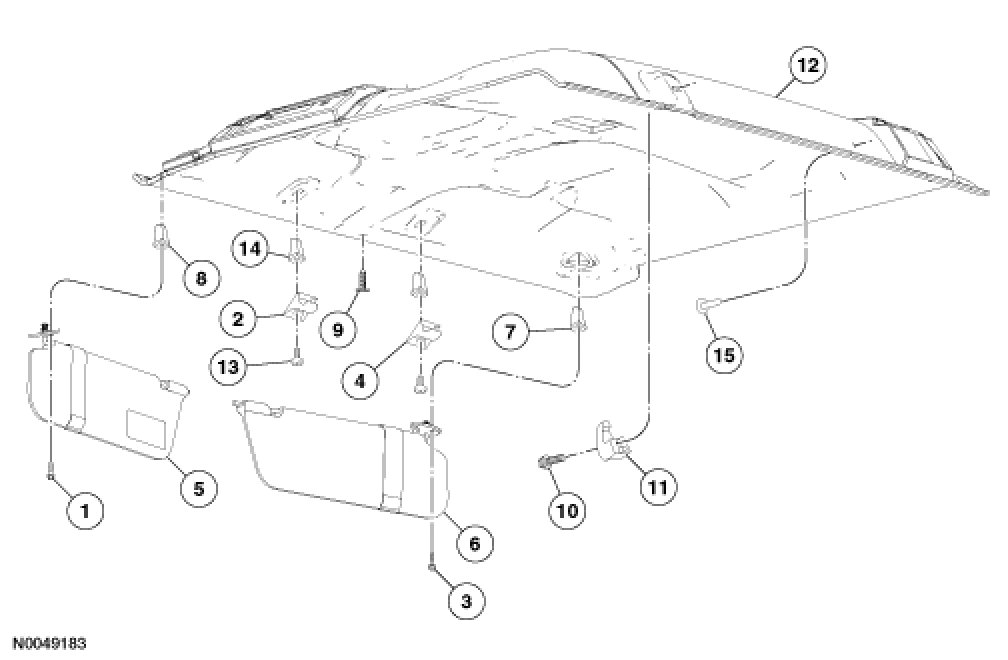

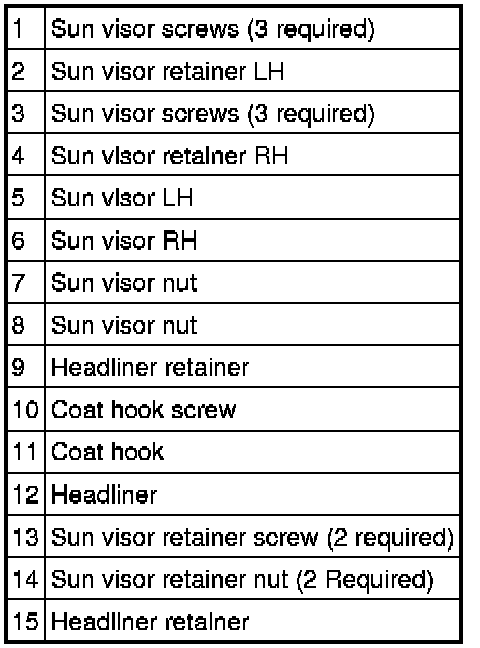

HEADLINER









Removal and Installation

All vehicles





1. Remove the sun visors.
1 Remove the 6 screws.
2 Remove the sun visors.

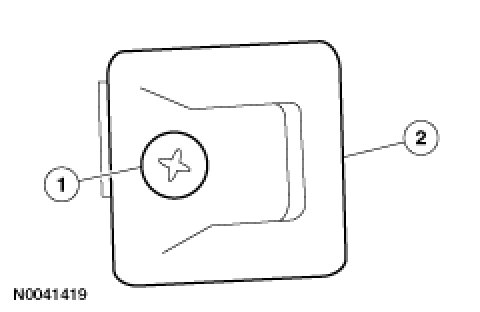

1. Remove the sun visor brackets.
1 Remove the screws.
2 Remove the sun visor brackets.

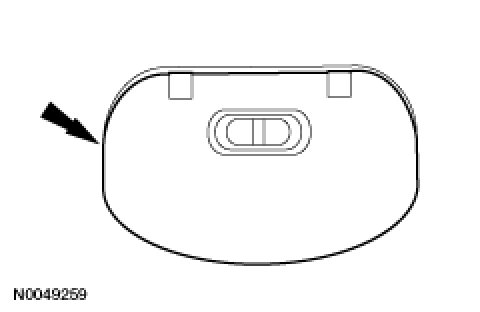

1. Remove the dome lamp lens.

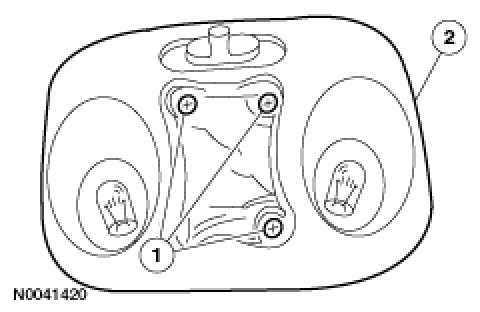

1. Remove the dome lamp.
1 Remove the 3 screws.
2 Remove the dome lamp.

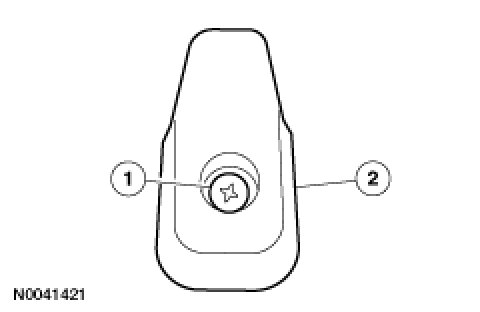

1. Remove the coat hooks.
1 Remove the screws.
2 Remove the coat hooks.

2-Door, Regular Cab

1. Remove the B-pillar trim panels. See - B-Pillar Trim Panel - 2 Door, Regular Cab.

4-Door Cab Plus

1. Remove the A-pillar trim panels. See A-Pillar Trim Panel.

2. Remove the C-pillar trim panels. See - C-Pillar Trim Panel - 4-Door, Cab Plus.

All vehicles

1. Remove the headliner.

2. To install, reverse the removal procedure.
