Wheel Speed Sensor - Rear



-
WHEEL SPEED SENSOR - REAR









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

2. Disconnect the negative battery cable. See Procedures.

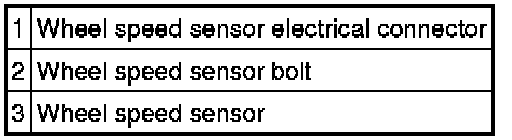

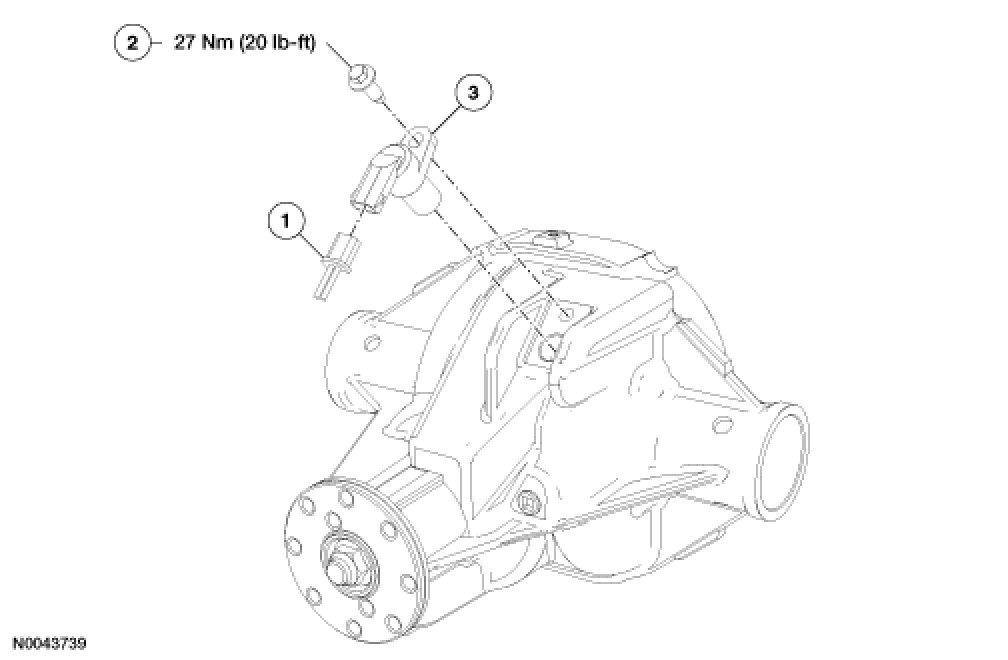

3. Disconnect the wheel speed sensor electrical connector.

4. Remove the wheel speed sensor bolt and the wheel speed sensor.

- To install, tighten to 27 Nm (2.8 kgf-m, 20 ft-lbf).

5.
NOTE:Plug the sensor cavity and thoroughly clean the sensor mounting surface.
NOTE:Inspect the anti-lock brake sensor O-ring for damage; lightly lubricate the O-ring with axle lubricant.
To install, reverse the removal procedure.
