Brake Caliper Anchor Plate

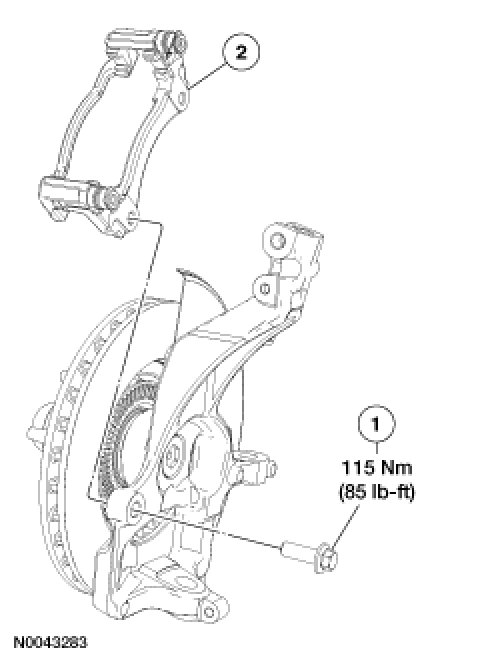

BRAKE CALIPER ANCHOR PLATENOTE:2WD shown, 4WD similar.
Removal and Installation1. Remove the
brake pads. See
Service and Repair.
2. Remove the 2
brake caliper anchor plate bolts and the brake caliper anchor plate.
-
To install, tighten to 115 N-m (11.7 kgf-m, 85 ft-lbf).
3. To install, reverse the removal procedure.
