Disc Brake Dust / Mud Shield: Service and Repair

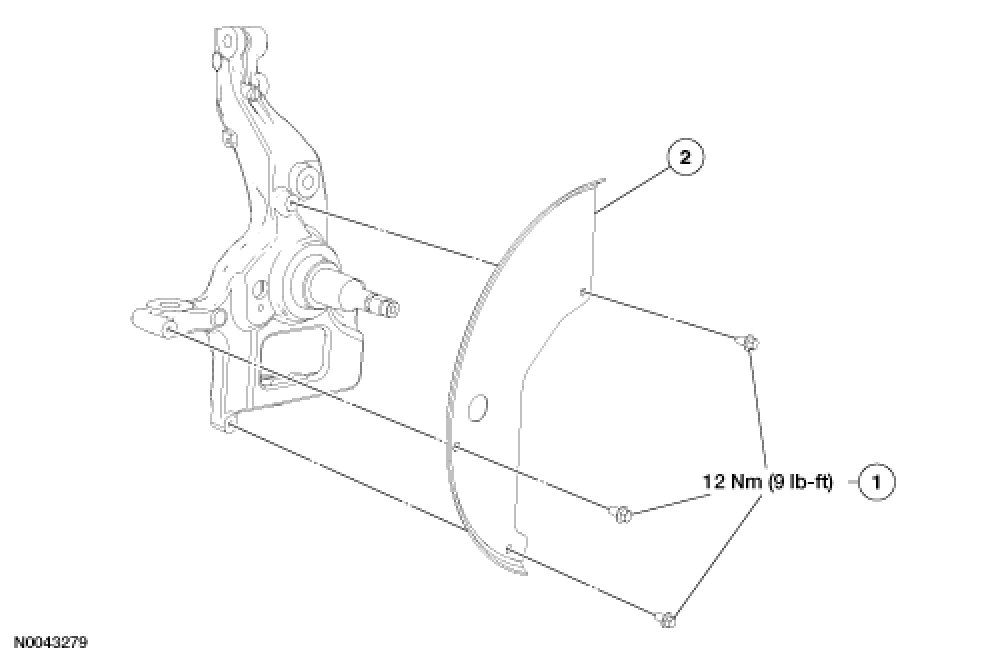

BRAKE DISC SHIELD

NOTE:2WD shown, 4WD similar.

Removal and Installation

1. Remove the brake disc. See Removal and Replacement.

2. Remove the 3 brake disc shield bolts and the brake disc shield.

- To install, tighten to 12 N-m (1.2 kgf-m, 9 ft-lbf).

3. To install, reverse the removal procedure.
