Pinpoint Test 1: Cruise Control Is Inoperative - No Flash Codes

-
CRUISE CONTROL SYSTEM PINPOINT TEST 1: CRUISE CONTROL IS INOPERATIVE - NO FLASH CODES

NOTE:It is important to use a voltage drop test on some of the tests where specified. Circuits may indicate a good voltage and continuity but may not be capable of carrying sufficient current.

Step 1-Step 5:

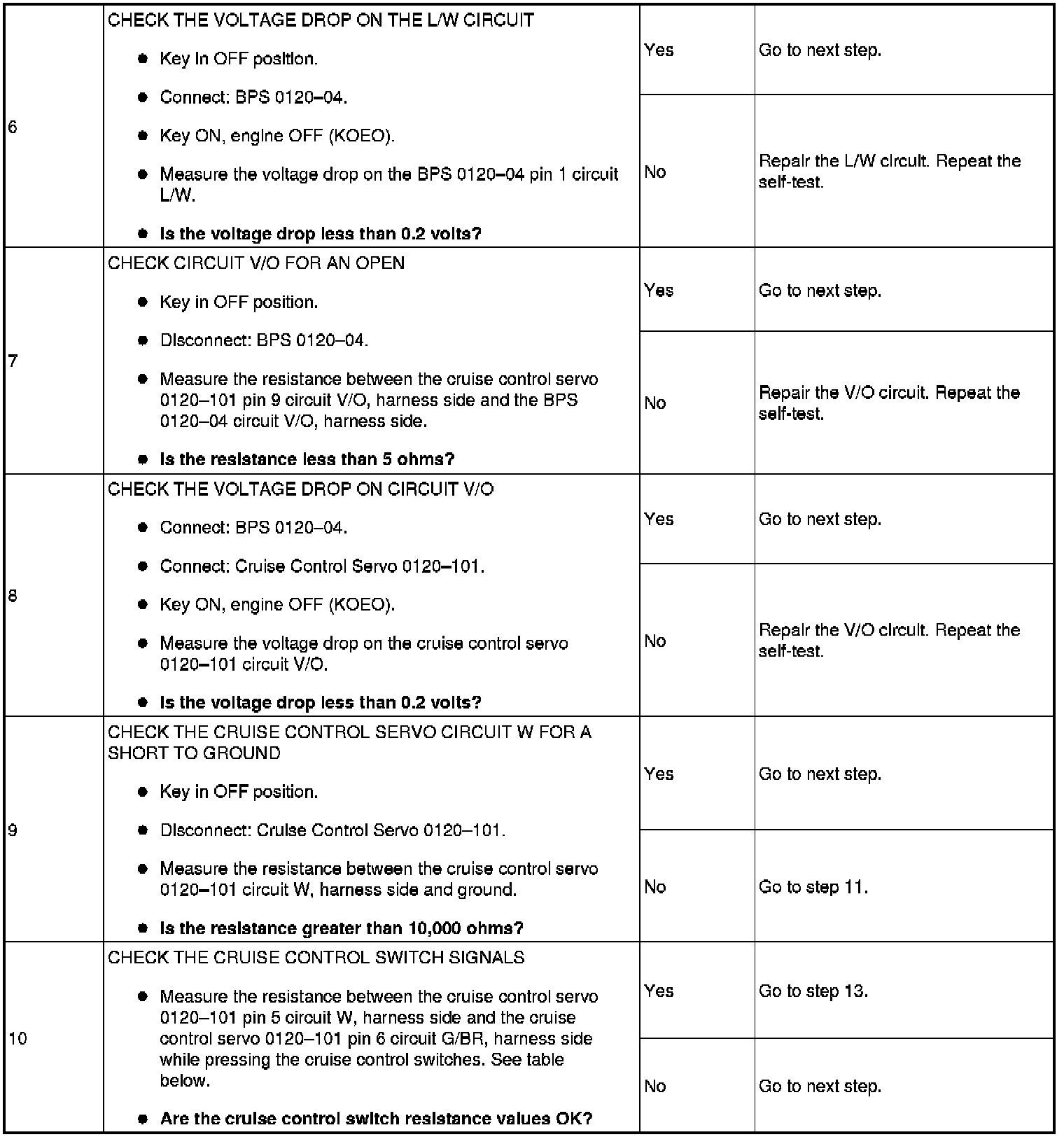

Step 6-Step 10:

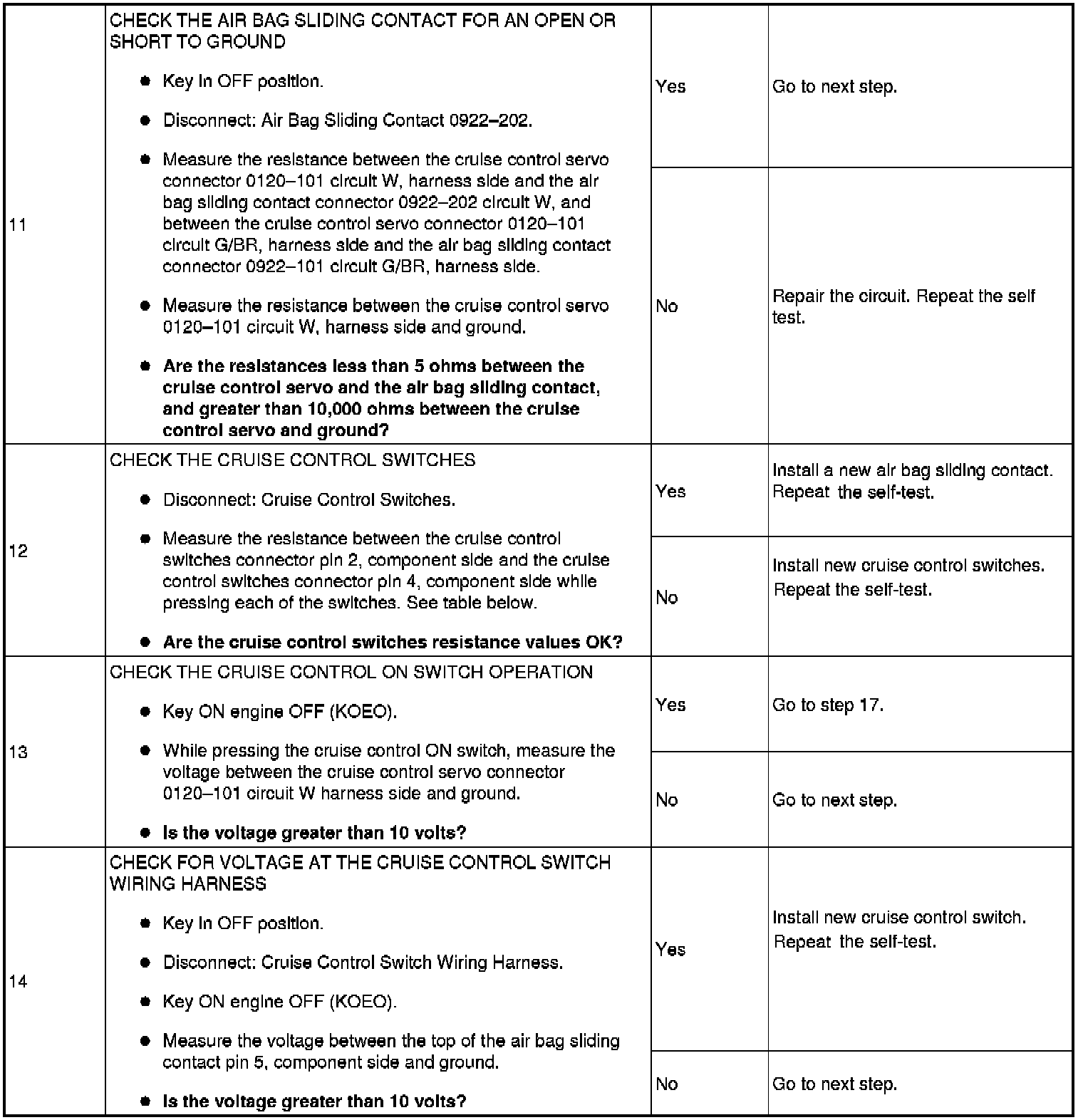

Step 11-Step 14:

Pinpoint Test 1: Cruise Control Is Inoperative - No Flash Codes

Step 1-Step 5:

Step 6-Step 10:

Step 11-Step 14:

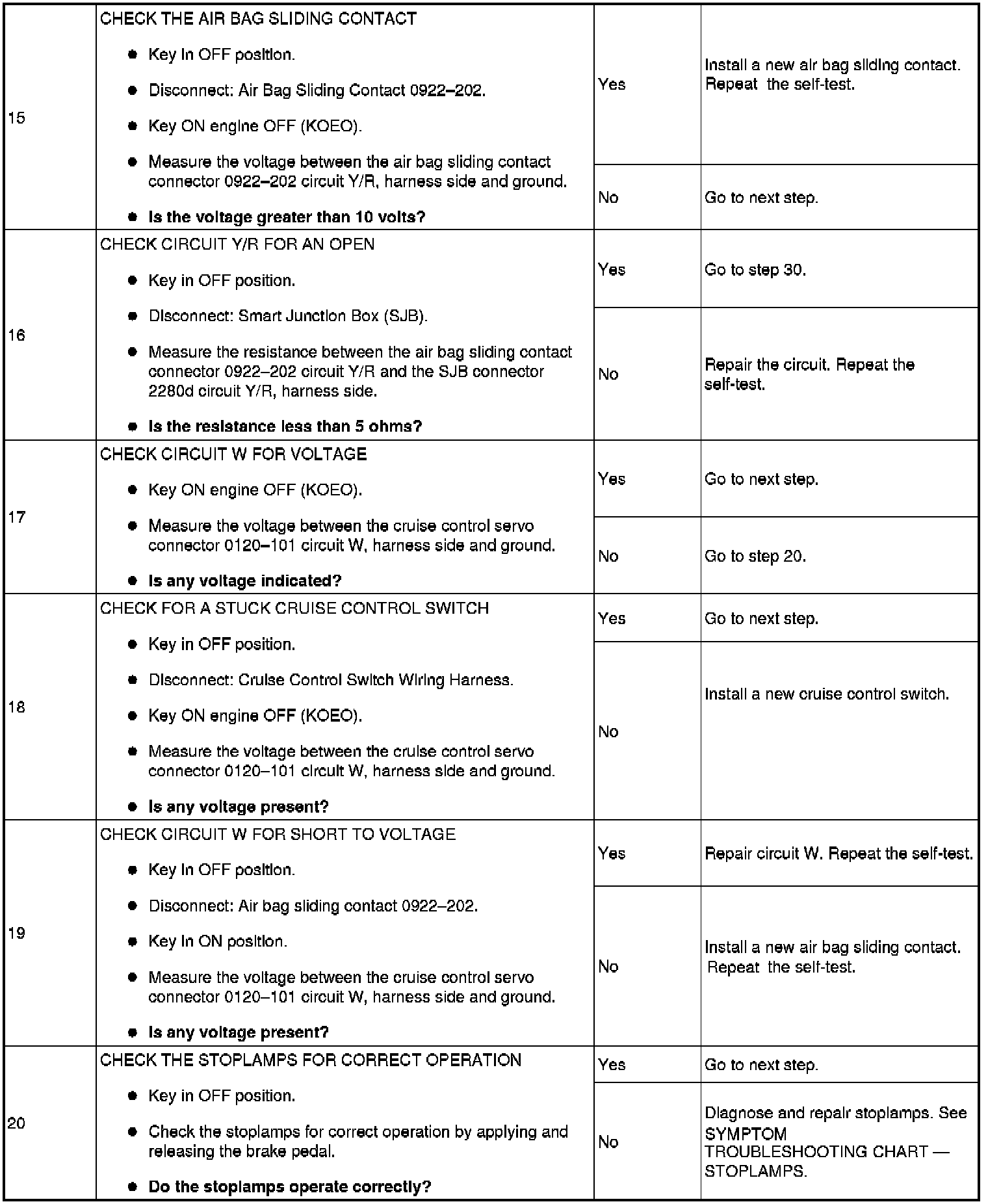

Step 15-Step 20:

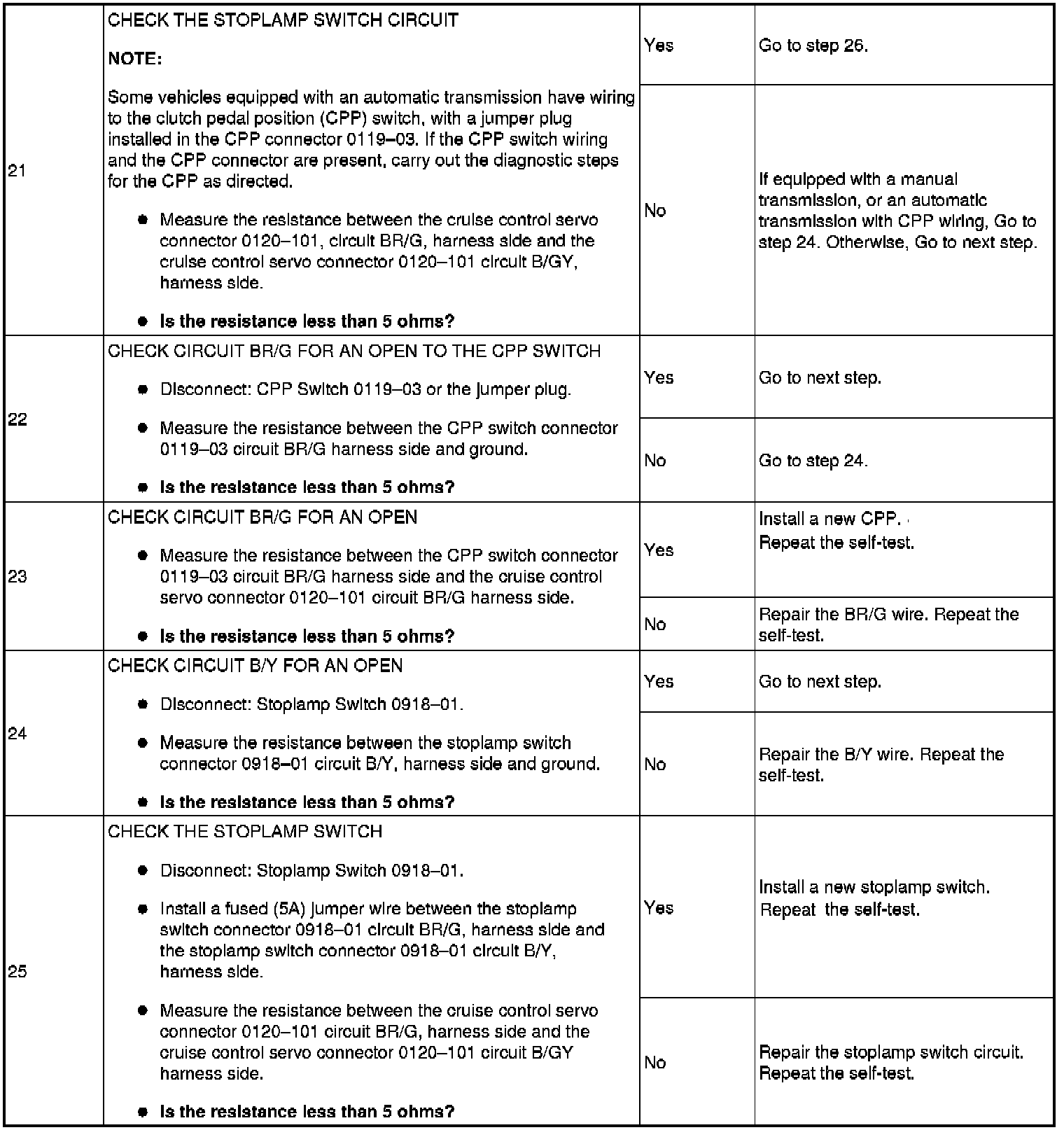

Step 21-Step 25:

Step 26-Step 27:

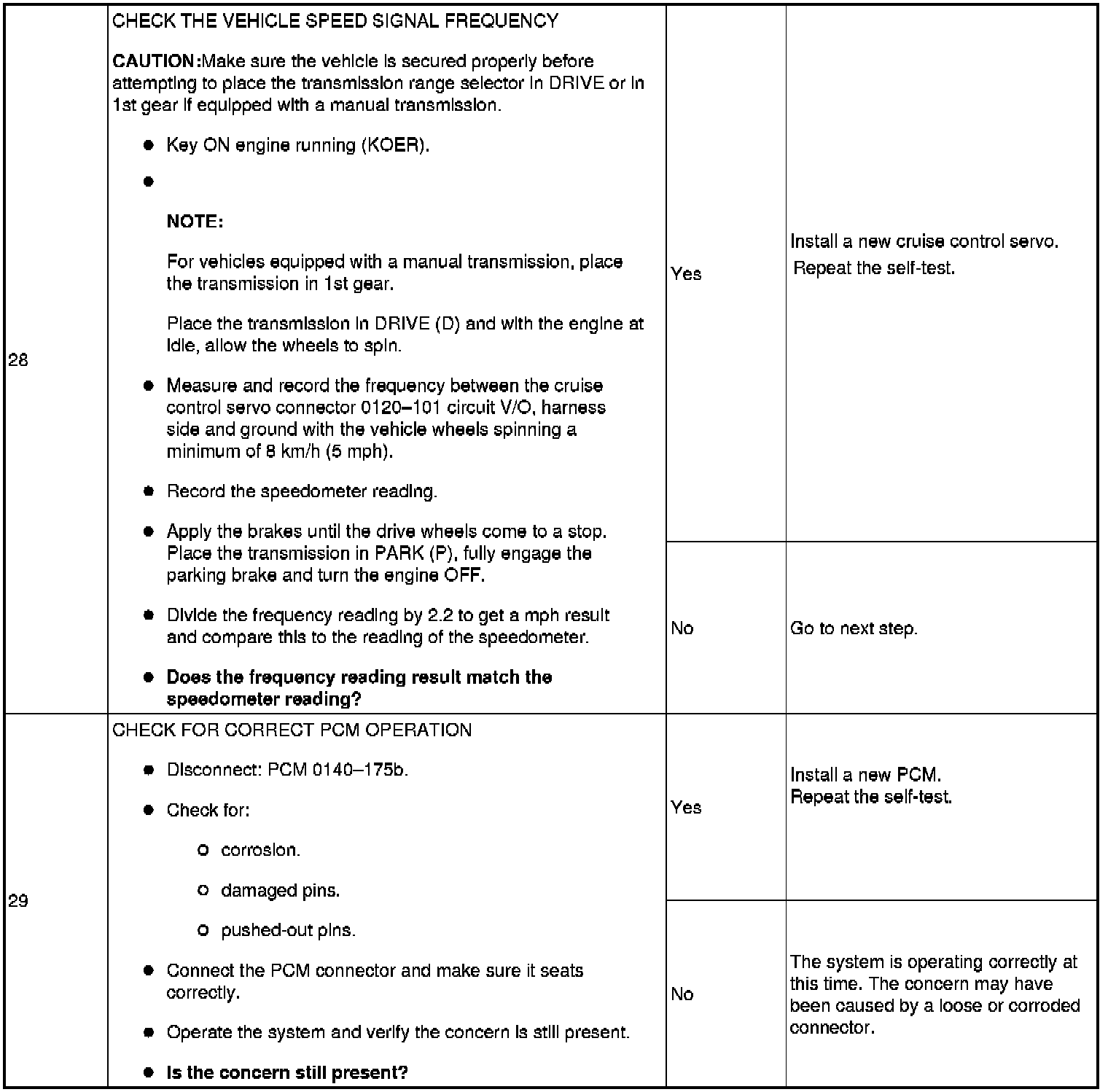

Step 28-Step 29:

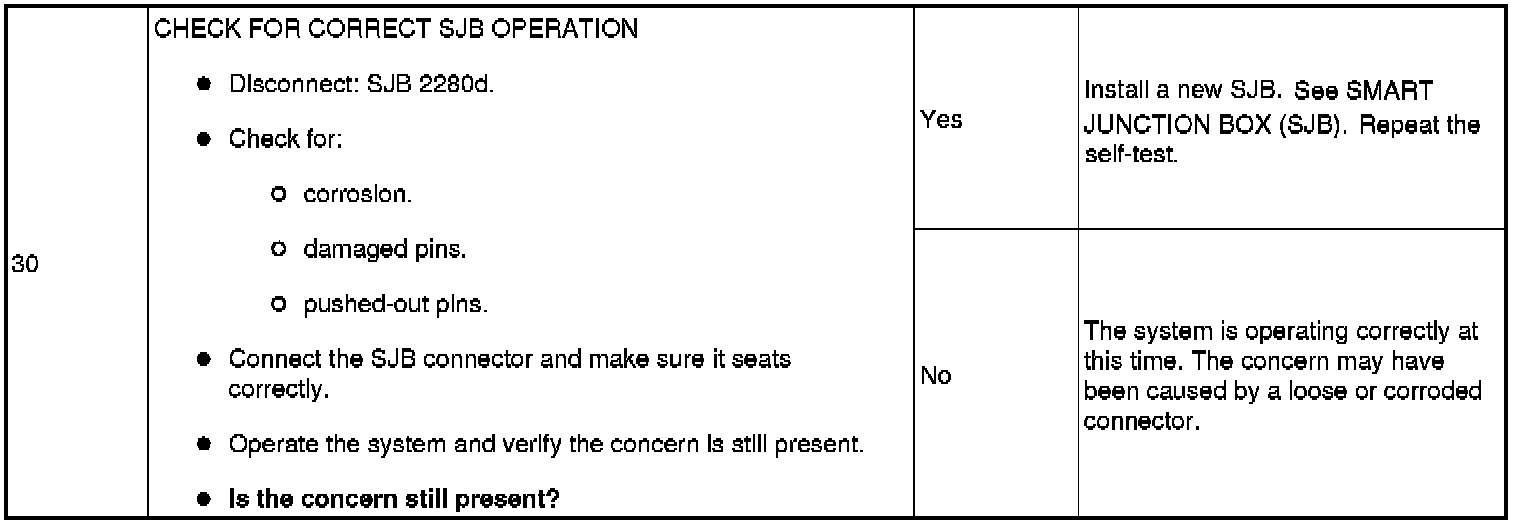

Step 30:
