Engine - Coolant Temperature Sensor/Switch: Service and Repair

-
WATER TEMPERATURE SENDER UNIT REMOVAL / INSTALLATION - 2.3L

1. Disconnect the negative battery cable. See Procedures.

2. Drain the cooling system. See - Removal and Replacement.

1. Disconnect the electrical connector.

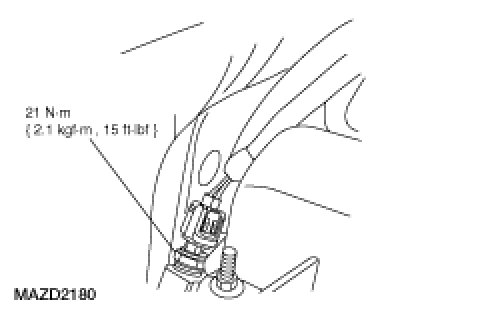

1. Remove the engine coolant temperature sensor.

2.
NOTE:Coat the threads with pipe thread sealant.To install, reverse the removal procedure.
