Engine Oil Pressure: Testing and Inspection

-
OIL PRESSURE SENSOR INSPECTION - 2.3L

1. Remove the oil pressure switch.

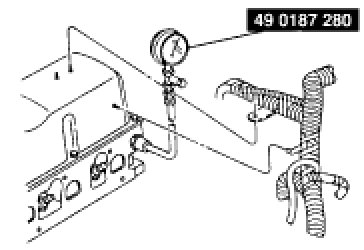

2. Screw oil pressure gauge SST into the oil pressure switch installation hole.






3. Run the engine at 2000 rpm and note the engine readings.

4. If pressure is not within specification (40-60 psi, 276-413 kpa, 2.8-4.2 kgf/cm2), see - Specifications, for further diagnosis.

5. Apply sealant to oil pressure switch threads.

6. Remove oil pressure gauge SST and install switch.
Tightening torque
11-24 Nm {1.1-2.4 kgf-m, 8-18 ft-lbf}
