Oil Pressure Sender: Service and Repair



-
OIL PRESSURE SENSOR REMOVAL / INSTALLATION - 2.3L

1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting

2. Disconnect the battery ground cable. See Procedures.

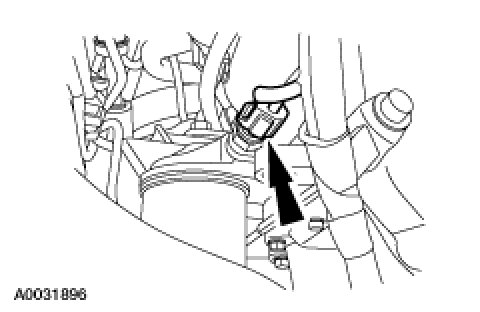

3. Disconnect the wire connector at the sender.

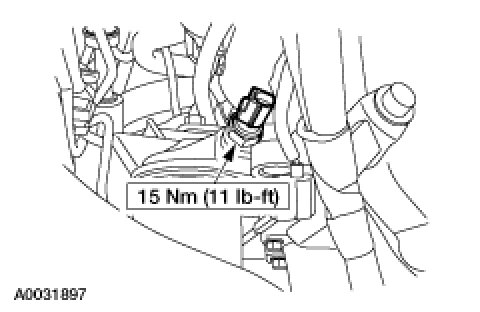

4. Remove the oil pressure sender.

5. To install, reverse the removal procedure.






- Apply sealant to oil pressure sender threads.
