Instrument Panel Register Removal / Installation - LH



-
INSTRUMENT PANEL REGISTER REMOVAL / INSTALLATION - LH

1. Remove the audio unit. See Service and Repair.

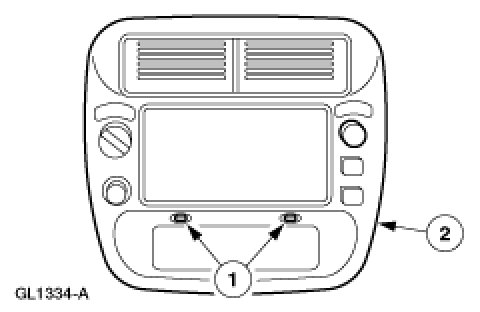

2. Remove the instrument panel center finish panel.
a. Remove the screws.

b. Disengage the retaining clips and partially remove the instrument panel center finish panel.

- Disconnect the electrical connectors and remove the instrument panel center finish panel.






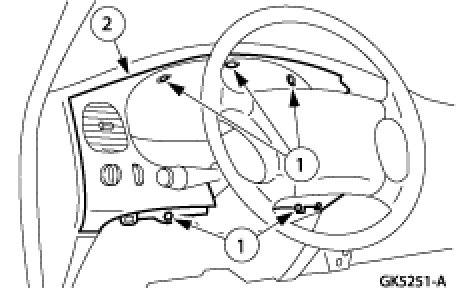

1. Remove the instrument cluster finish panel.
a. Remove the screws.

b. Disengage the retaining clips and partially remove the instrument cluster finish panel.

- Disconnect the electrical connectors and remove the instrument cluster finish panel.

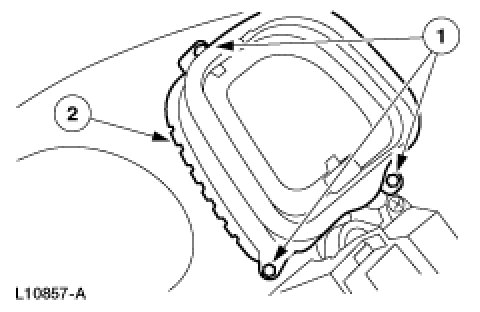

1. Remove the screws and the LH instrument panel register.






1. To install, reverse the removal procedure.
