Vacuum Reservoir HVAC: Service and Repair




VACUUM RESERVOIR TANK AND BRACKET REMOVAL / INSTALLATION

NOTE:The vacuum reservoir tank and bracket is located either on or beneath the RH front fender splash shield.
1. Remove the engine air cleaner (ACL). See - Service and Repair for the 4.0L engine.

2. Remove the RH front fender splash shield.

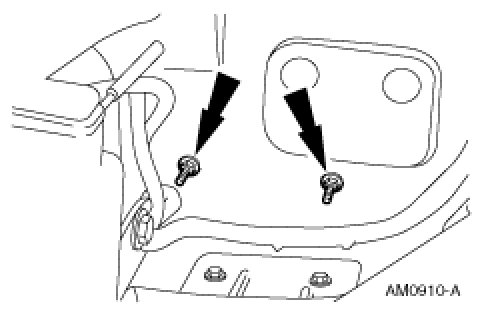

3. Remove the nuts and remove the A/C vacuum reservoir tank and bracket.






4. Disconnect the vacuum supply and outlet hoses.






5. To install, reverse the removal procedure.
Tightening Torque
7-9 Nm { 71-92 kgf-cm, 62-79 in-lbf }.
