Dimmer Switch: Service and Repair

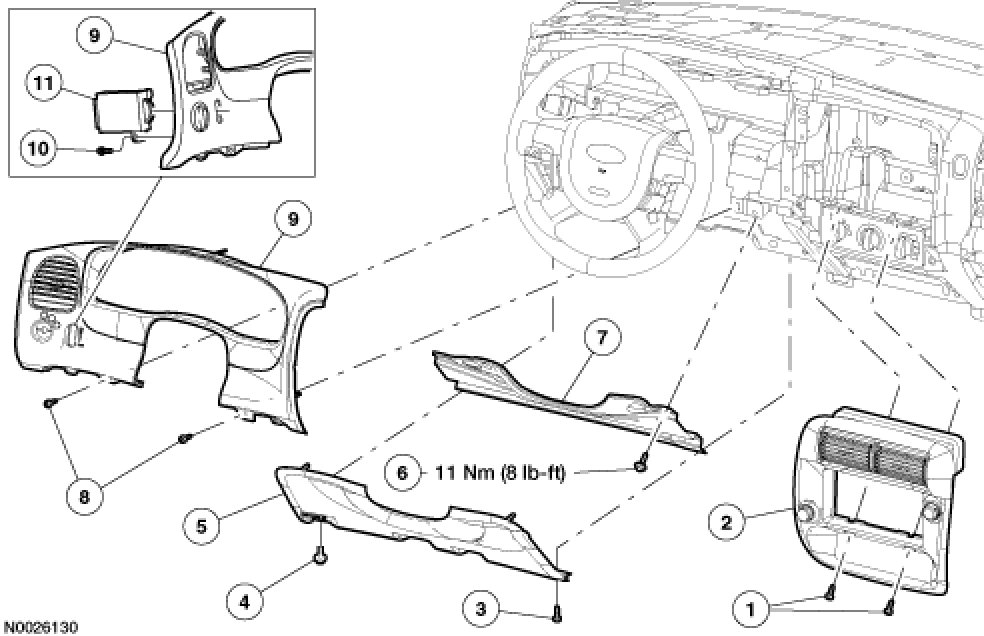

INSTRUMENT PANEL DIMMER SWITCH









Removal and Installation

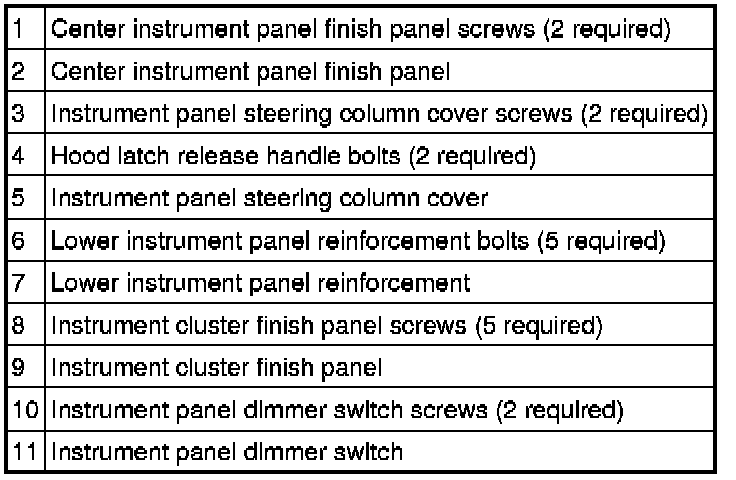

1. Remove the audio unit. For additional information see Service and Repair.

2. Remove the center instrument panel finish panel.

- Remove the 2 screws.
- Disconnect the electrical connectors.

3. Remove the 2 bolts and position aside the hood latch release handle.

4. Remove the 2 screws and remove the instrument panel steering column cover.

5. Remove the 5 bolts and the lower instrument panel reinforcement.

- To install, tighten to 7 N-m (0.7 kgf-m, 62 in-lbf).

6. If equipped, position the column-mounted transmission range selector lever to the lowest position.

7. Remove the instrument cluster finish panel.

- Remove the 5 screws.
- Disconnect the electrical connectors.

8. Remove the 2 screws and the instrument panel dimmer switch.

9. To install, reverse the removal procedure.
