Clutch Bleed Procedure - Bench



-
CLUTCH BLEED PROCEDURE - BENCH





CAUTION:Brake fluid is harmful to painted or plastic surfaces. If the brake fluid is spilled onto a painted or plastic surface, wash it immediately with water.

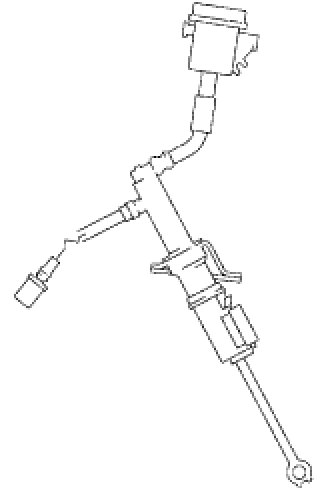

1. Position the clutch master cylinder reservoir above the clutch master cylinder and the quick connect fitting below the clutch master cylinder.

2. Press the internal mechanism of the quick connect fitting to open the valve.

3. Compress and hold the clutch master cylinder push rod.

- Release the quick connect fitting valve.
- Release the clutch master cylinder push rod.

4. Fill the clutch master cylinder reservoir.

- Repeat steps 2 and 3 four times.
