Clutch Bleed Procedure - On-Vehicle

-
CLUTCH BLEED PROCEDURE - ON-VEHICLE

1. Remove the clutch reservoir cap and diaphragm. Check the fluid level. Fill the reservoir to or above the step mark. Install the diaphragm and cap.

2. Press and release the clutch pedal several times to stabilize the clutch hydraulic system.

3. With the vehicle in neutral, position it on a hoist. See Lifting.

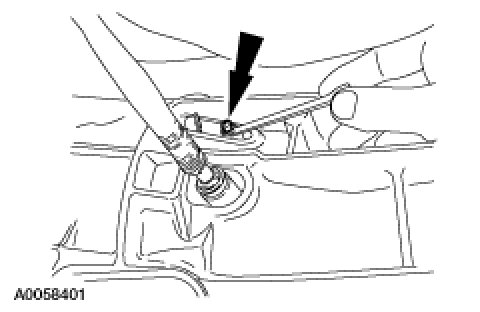

4. Remove the bleeder screw cover and attach a vinyl hose to the bleeder hose. Place the other end of the vinyl hose into a clear container partially filled with brake fluid.

5. Have an assistant press and release the clutch pedal 5 times, then hold the clutch pedal down. With the clutch pedal pressed, loosen the bleeder screw to let air escape the clutch system. Tighten the bleeder screw. Repeat this process until no air comes through the vinyl hose.






6. Tighten the bleeder screw and install the bleeder screw cover.

7. Slowly pump the clutch pedal several times to verify there is no fluid leakage.

8. Press and release the clutch pedal 2 short cycles and 3 full travel cycles.

9. Make sure the clutch reservoir is at the correct level. Refill as necessary.
