Engine Oil: Service and Repair

-
ENGINE OIL REPLACEMENT - 2.3L

1. Warm up the engine to normal operating temperature.

2. Remove the oil filler cap and oil drain plug.

3. Drain the oil into a suitable container.

4. Install a new gasket and the drain plug.
Tightening torque
28 Nm {2.9 kgf-m, 21 ft-lbf}

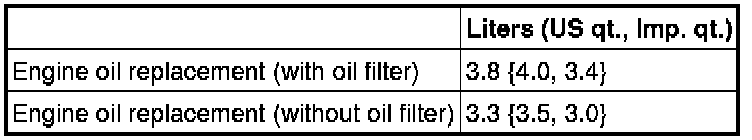

5. Refill the engine with the specified type and amount of engine oil.
