Symptom Related Diagnostic Procedures




SYMPTOM TROUBLESHOOTING CHART - TIRE PRESSURE MONITORING SYSTEM (TPMS)

NOTE:For vehicles with the same tire pressures for front and rear tires, tire rotation will not affect the system.Failure of a TPMS component may not cause the message center to display a fault message or a DTC to be stored. The Symptom Chart is a starting point to begin diagnosis of these concerns.

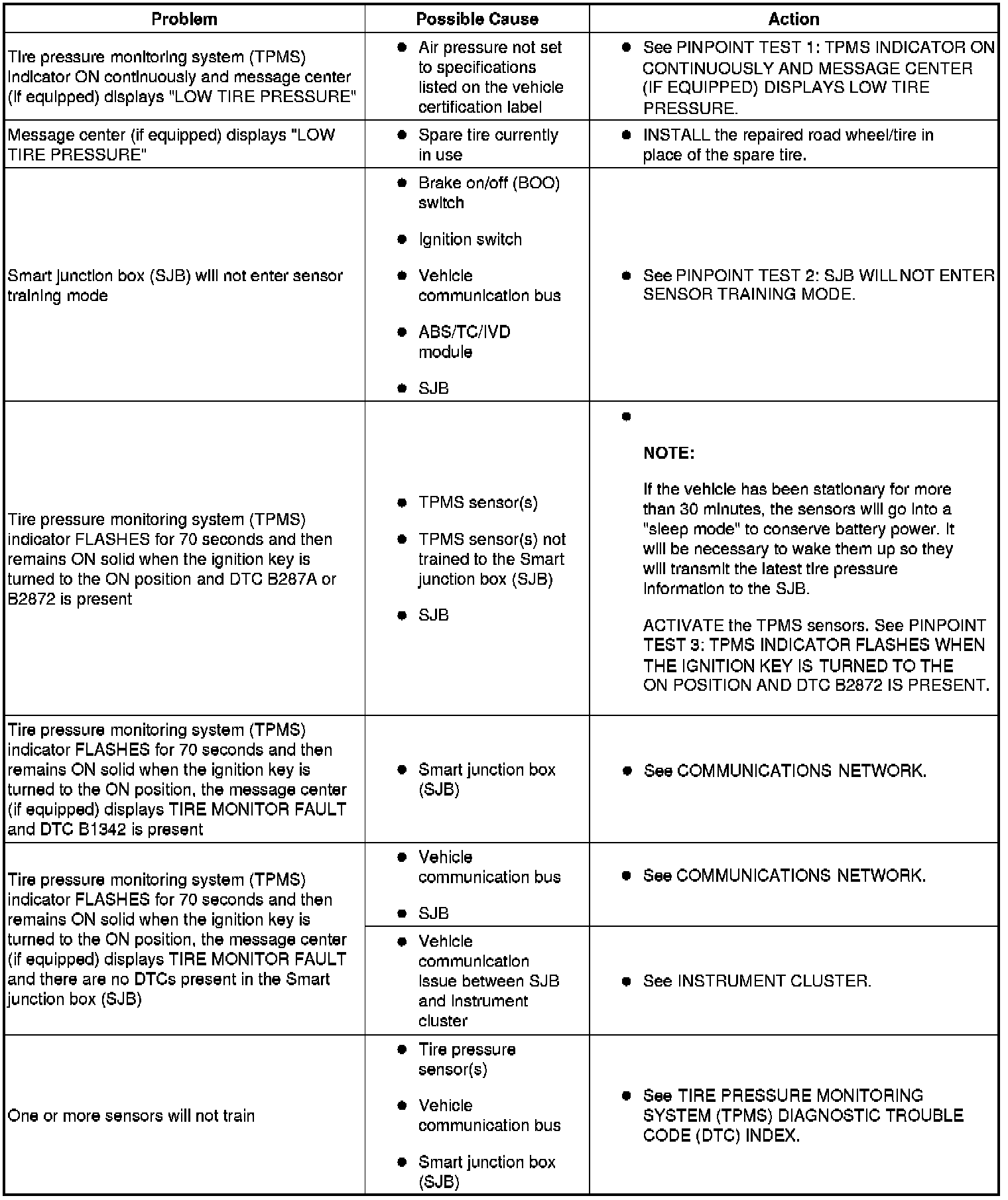

Symptom Troubleshooting Chart:
