Emissions Compliance




EMISSIONS COMPLIANCE

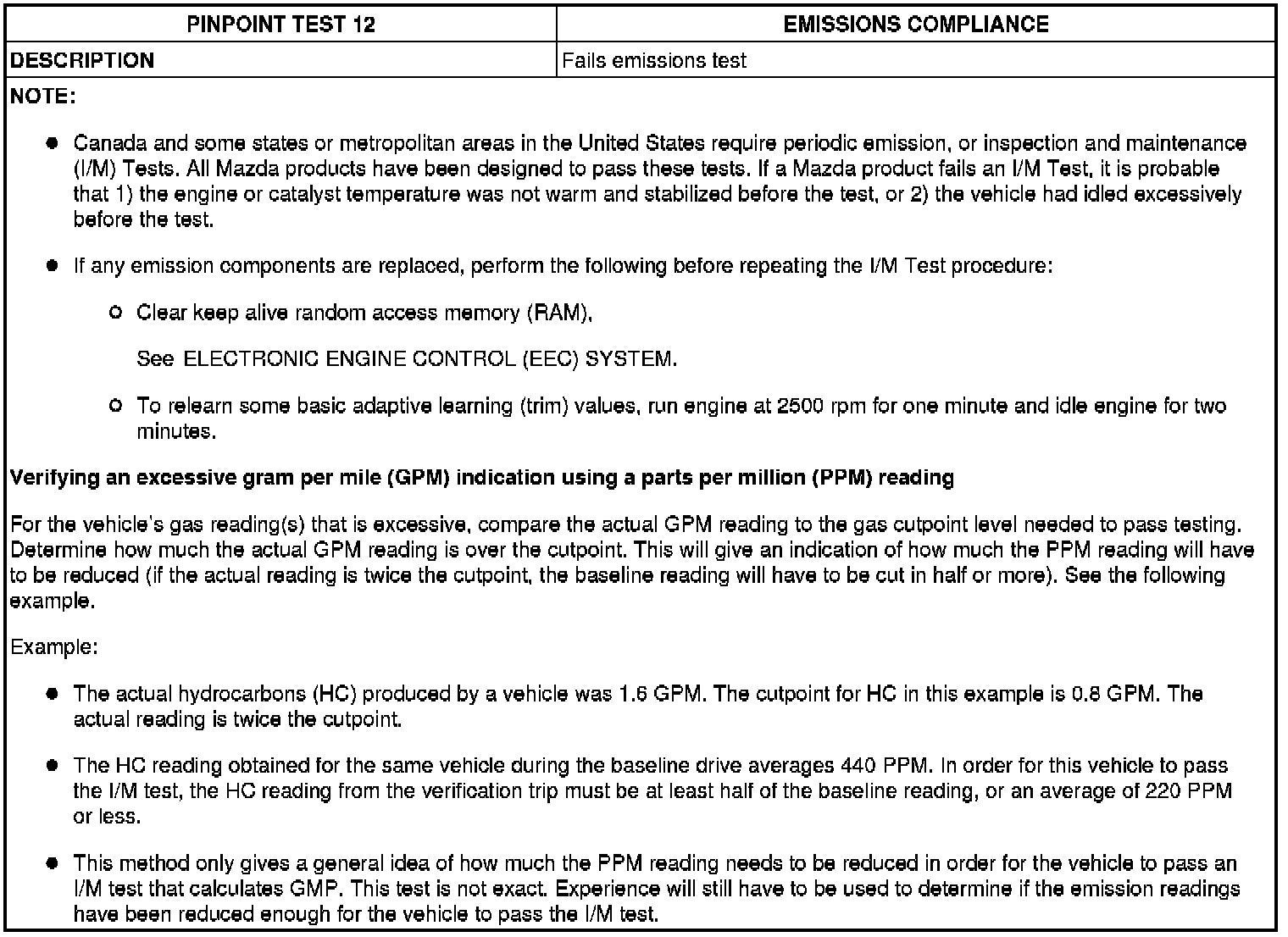

Description:

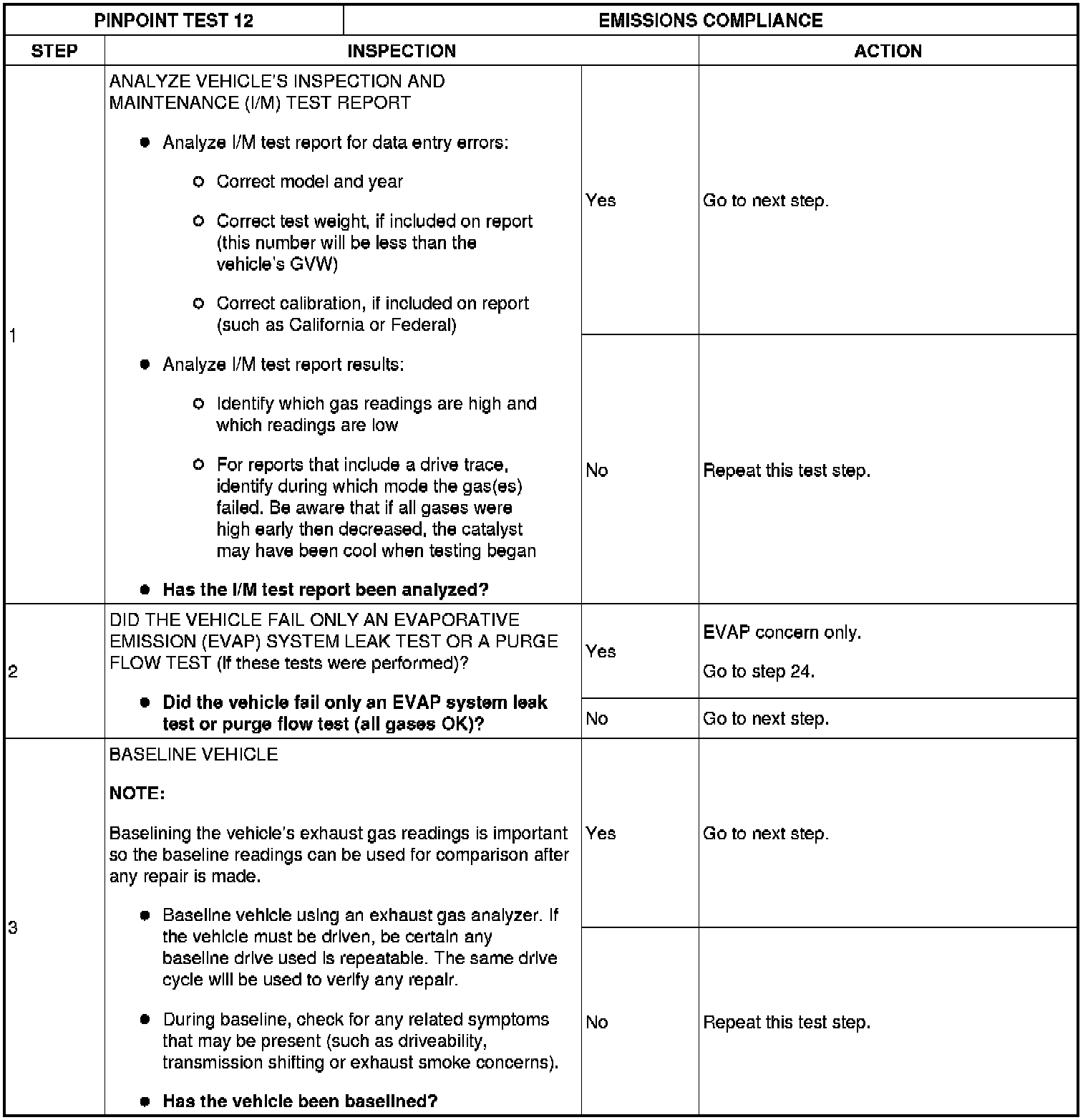

Step 1-Step 3:

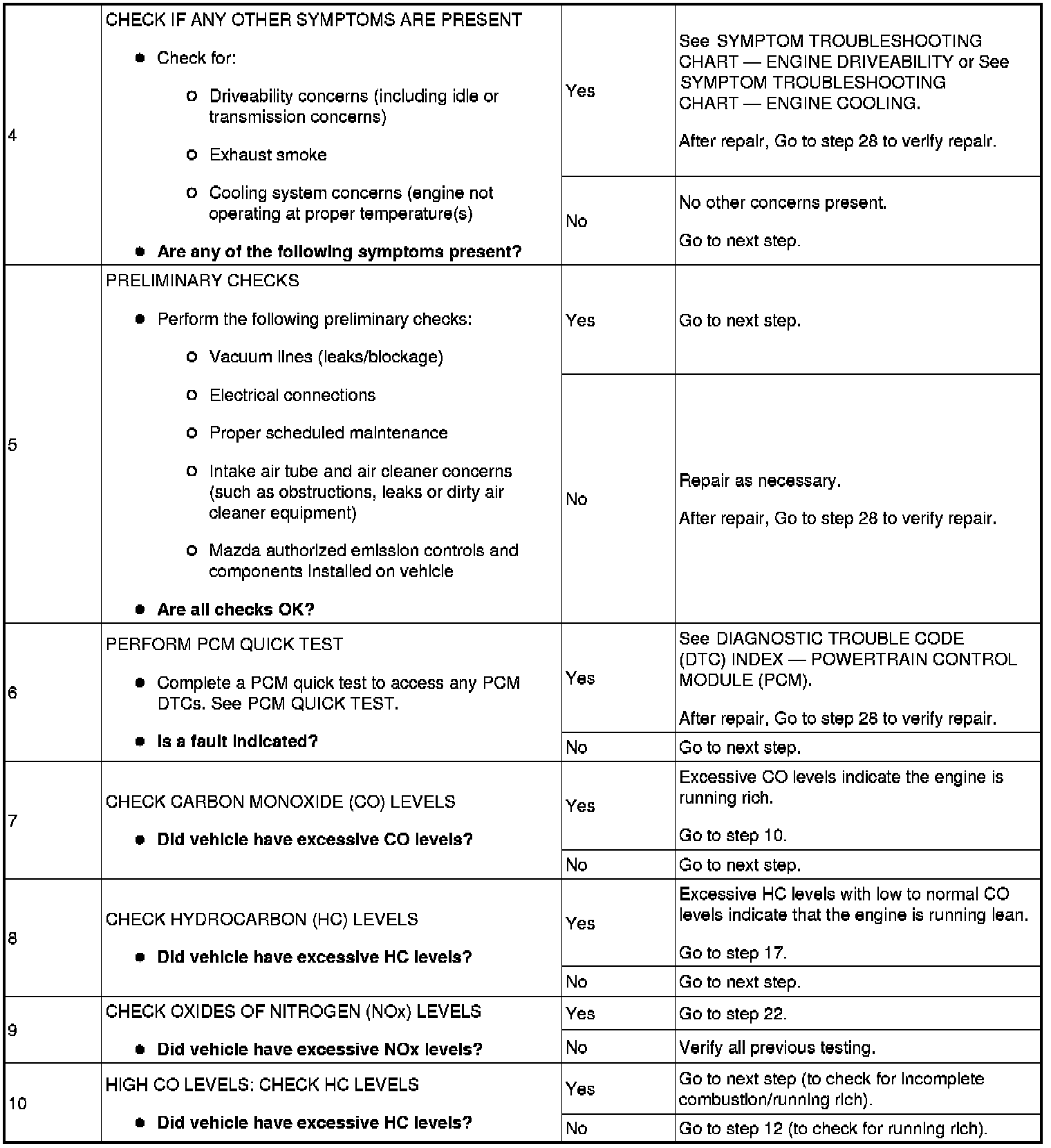

Step 4-Step 10:

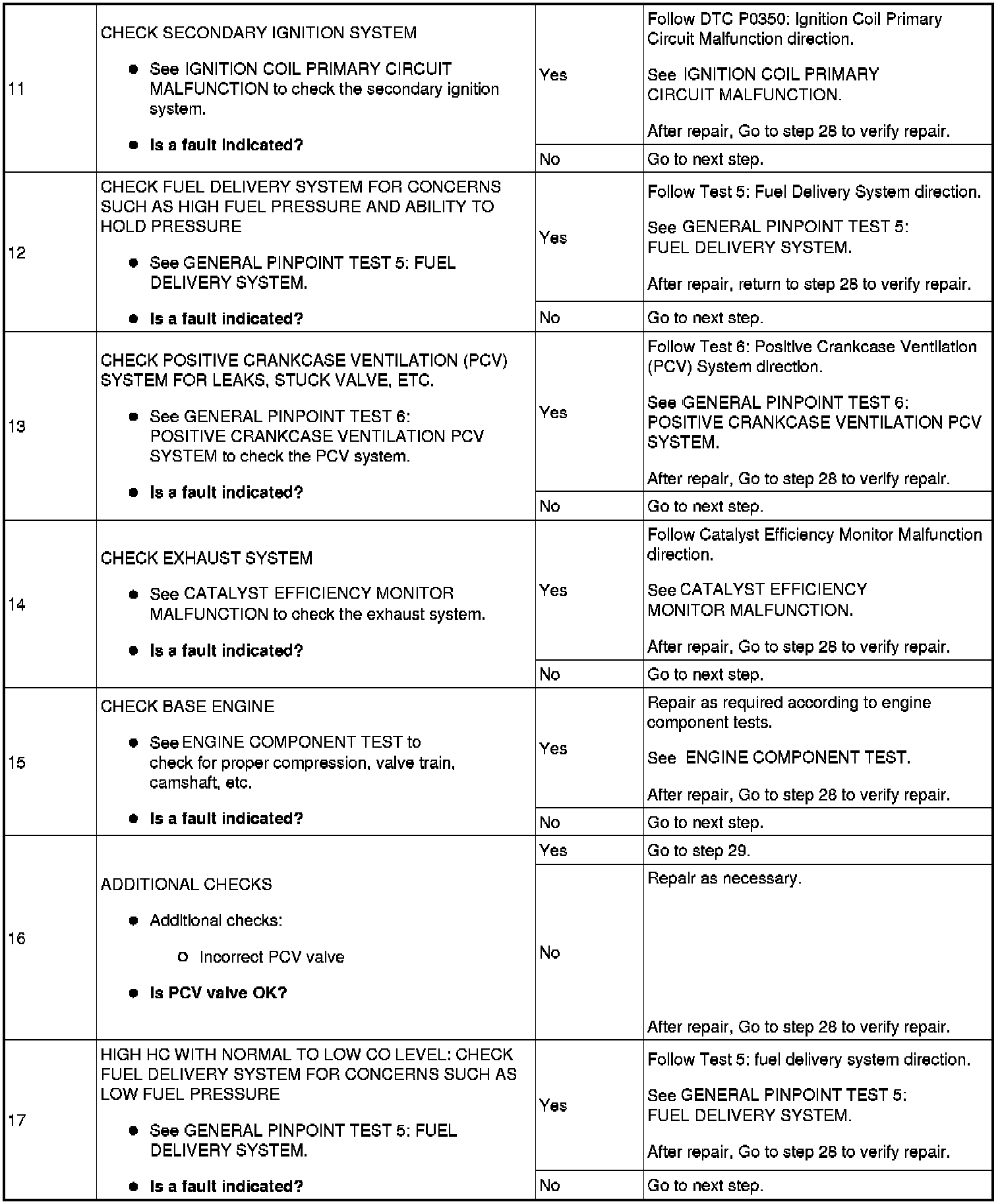

Step 11-Step 17:

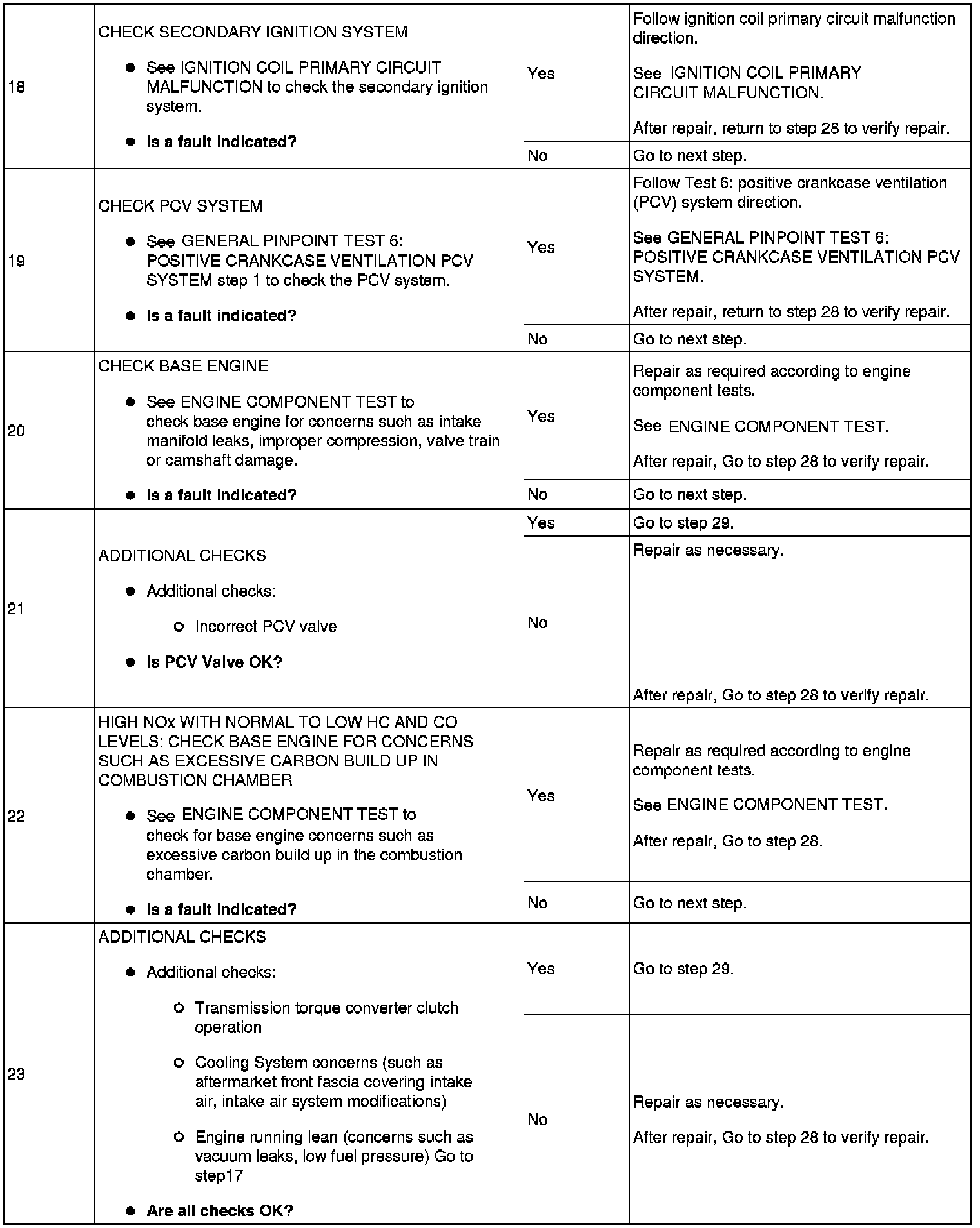

Step 18-Step 23:

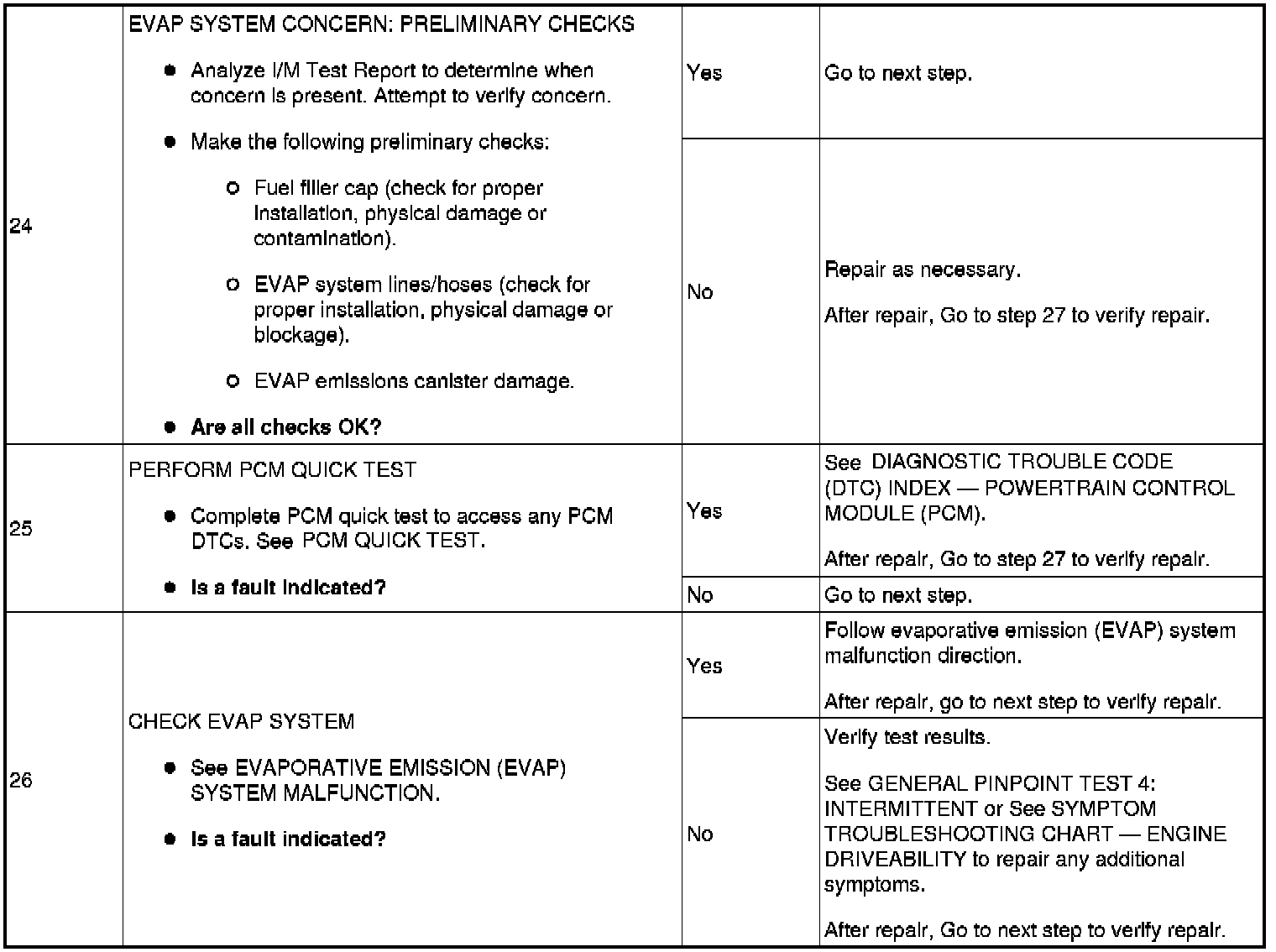

Step 24-Step 26:

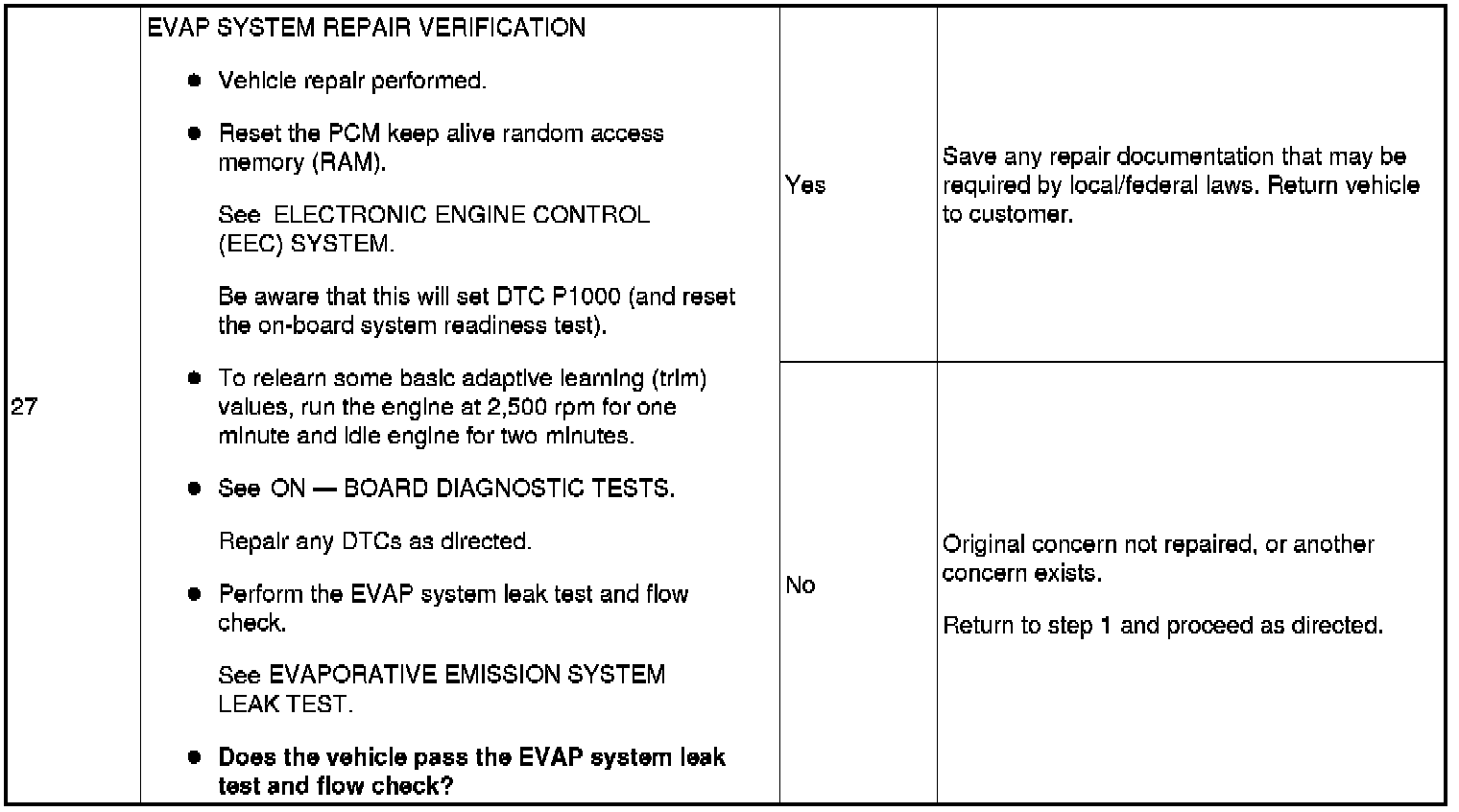

Step 27:

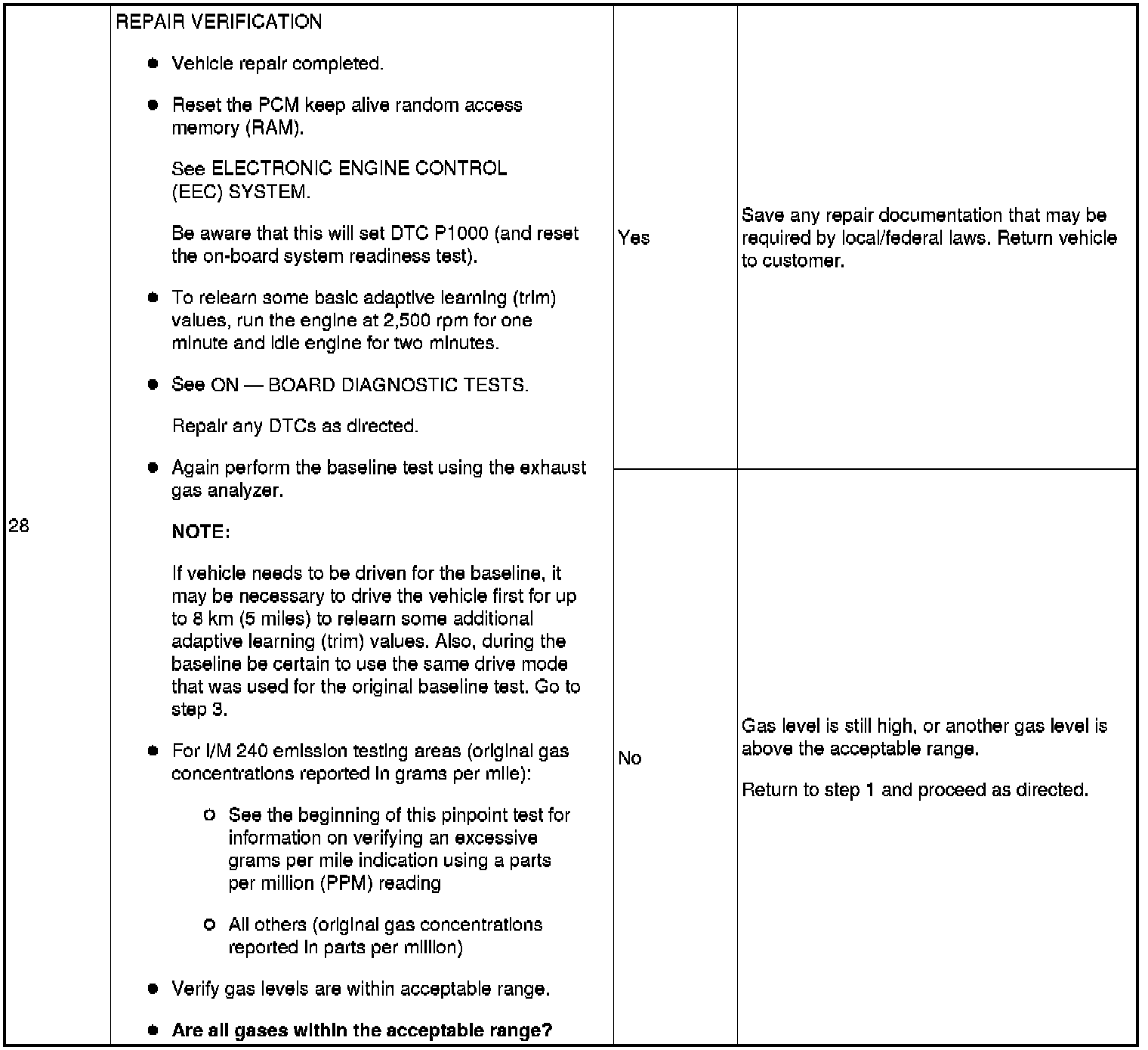

Step 28:

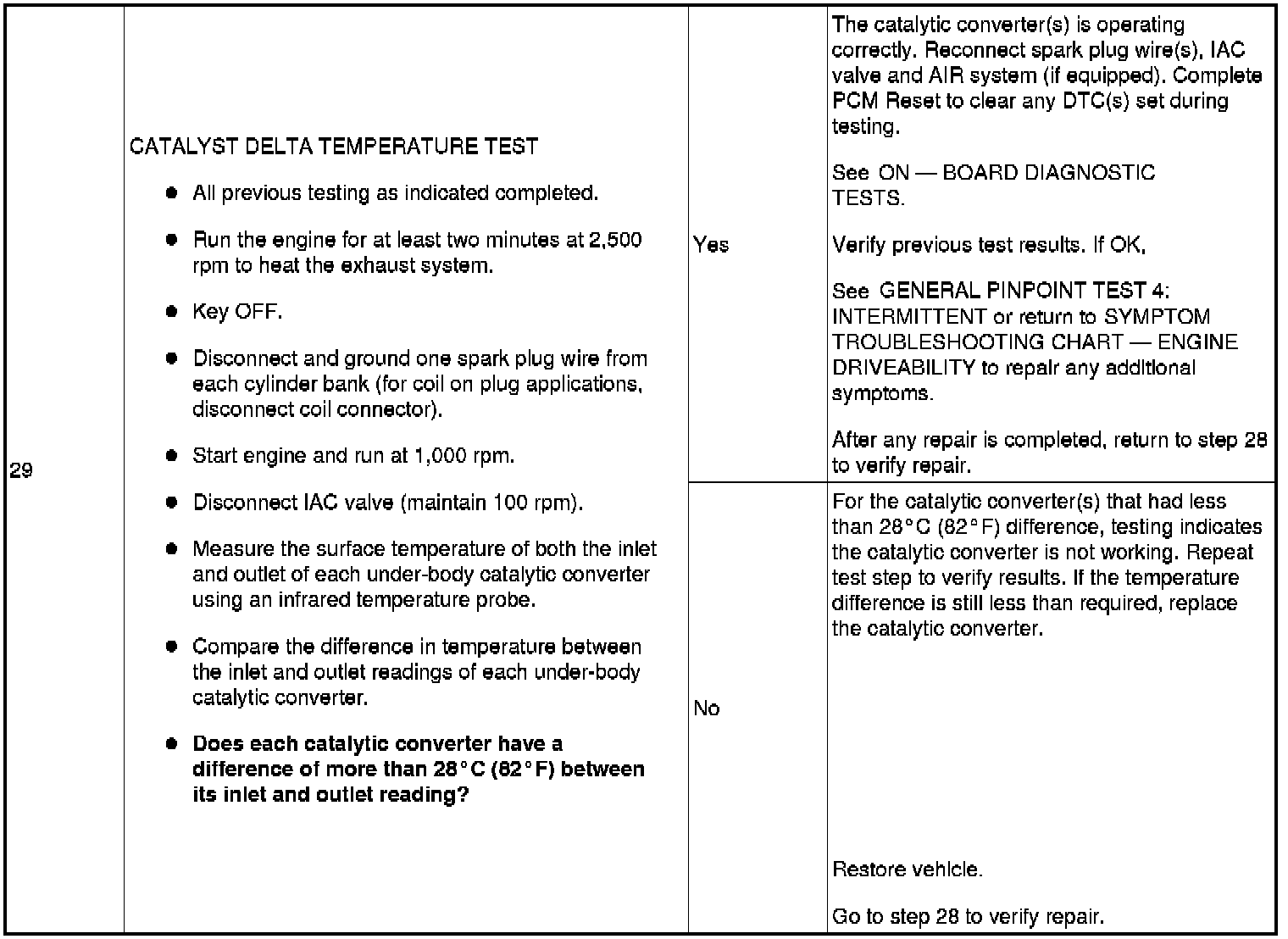

Step 29:
