Refueling Vapor Recovery System: Service and Repair

DUST SEPARATOR REMOVAL / INSTALLATION

1. Remove the evaporative emission (EVAP) canister. See Service and Repair.

2. Disconnect the canister vent solenoid hose assembly.

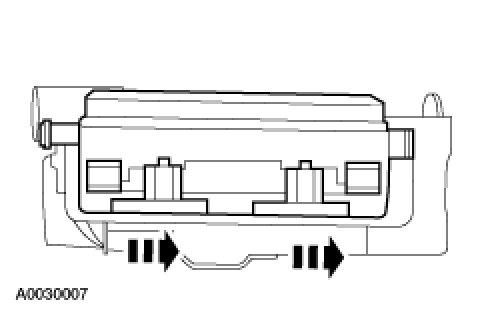

3. Remove the EVAP dust separator.

4. To install, reverse the removal procedure.

- Perform Leak Test. See Component Tests and General Diagnostics.
- Perform the Evaporative Emission Running Loss Monitor Repair Verification Drive Cycle Test. See Drive Cycles.
