Fuel Pump: Testing and Inspection




FUEL PUMP (FP) PRIMARY OR SECONDARY CIRCUIT

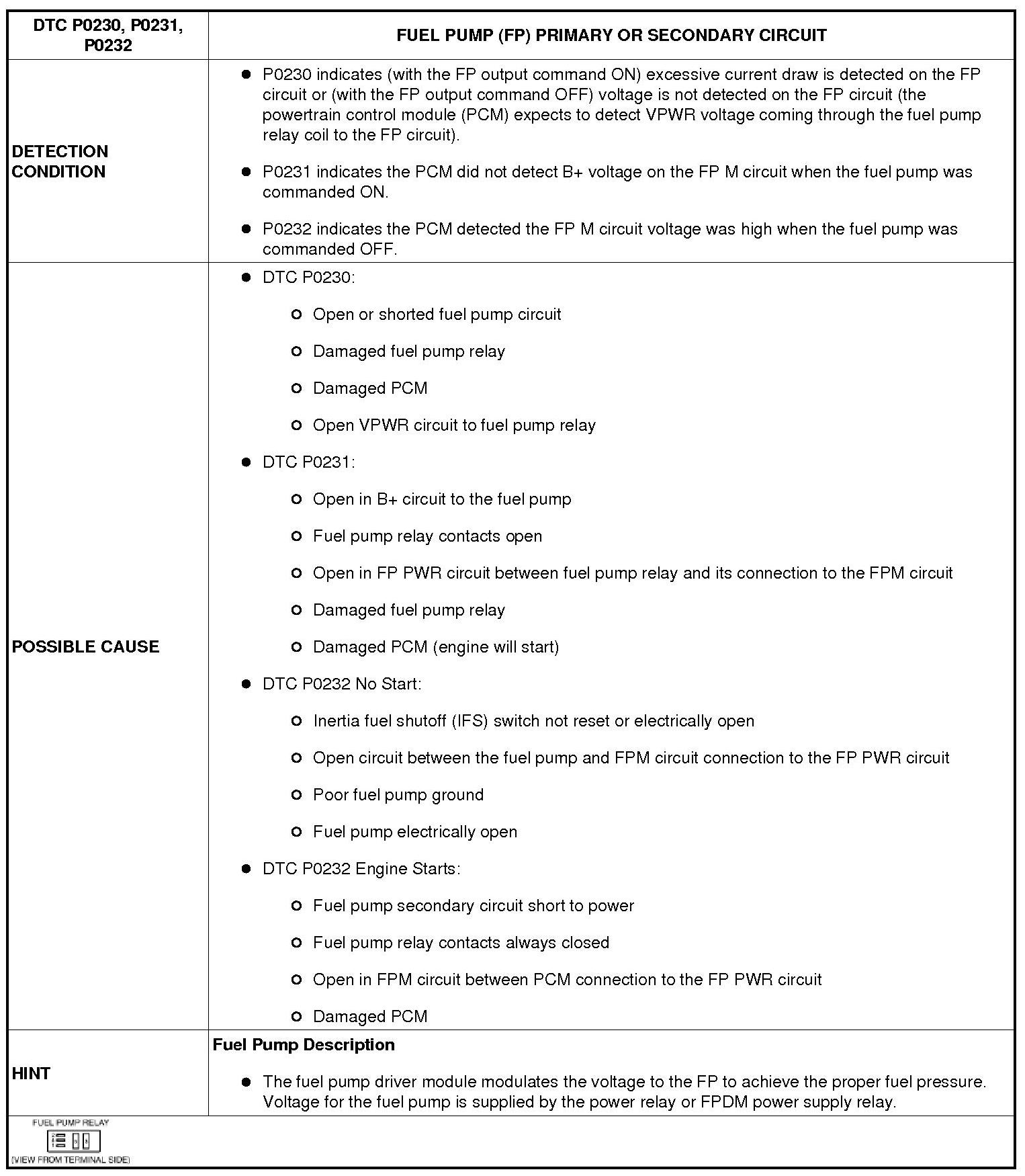

Detection Condition/Possible Cause (Part 1):





Detection Condition/Possible Cause (Part 2):

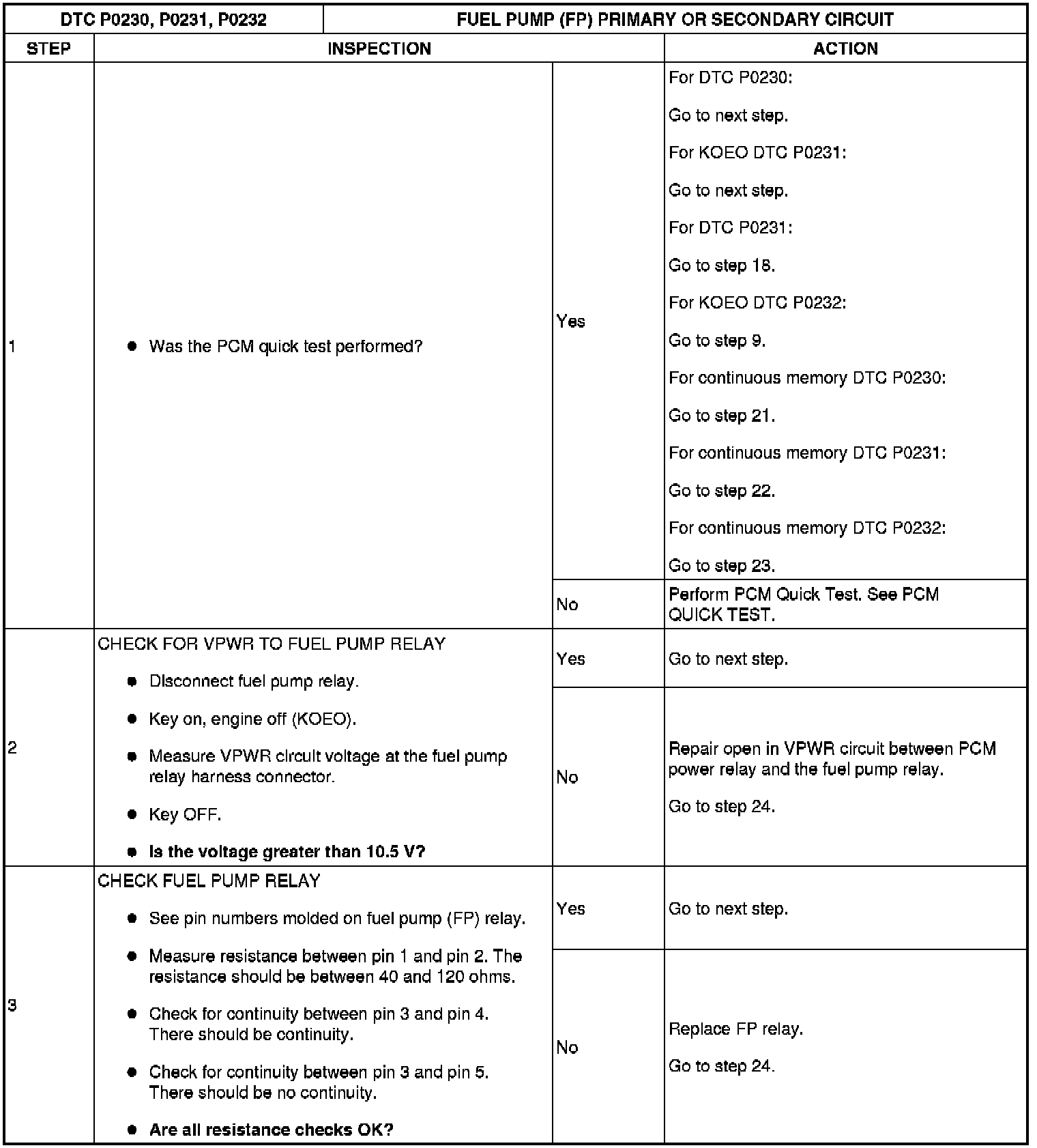

Step 1-Step 3:

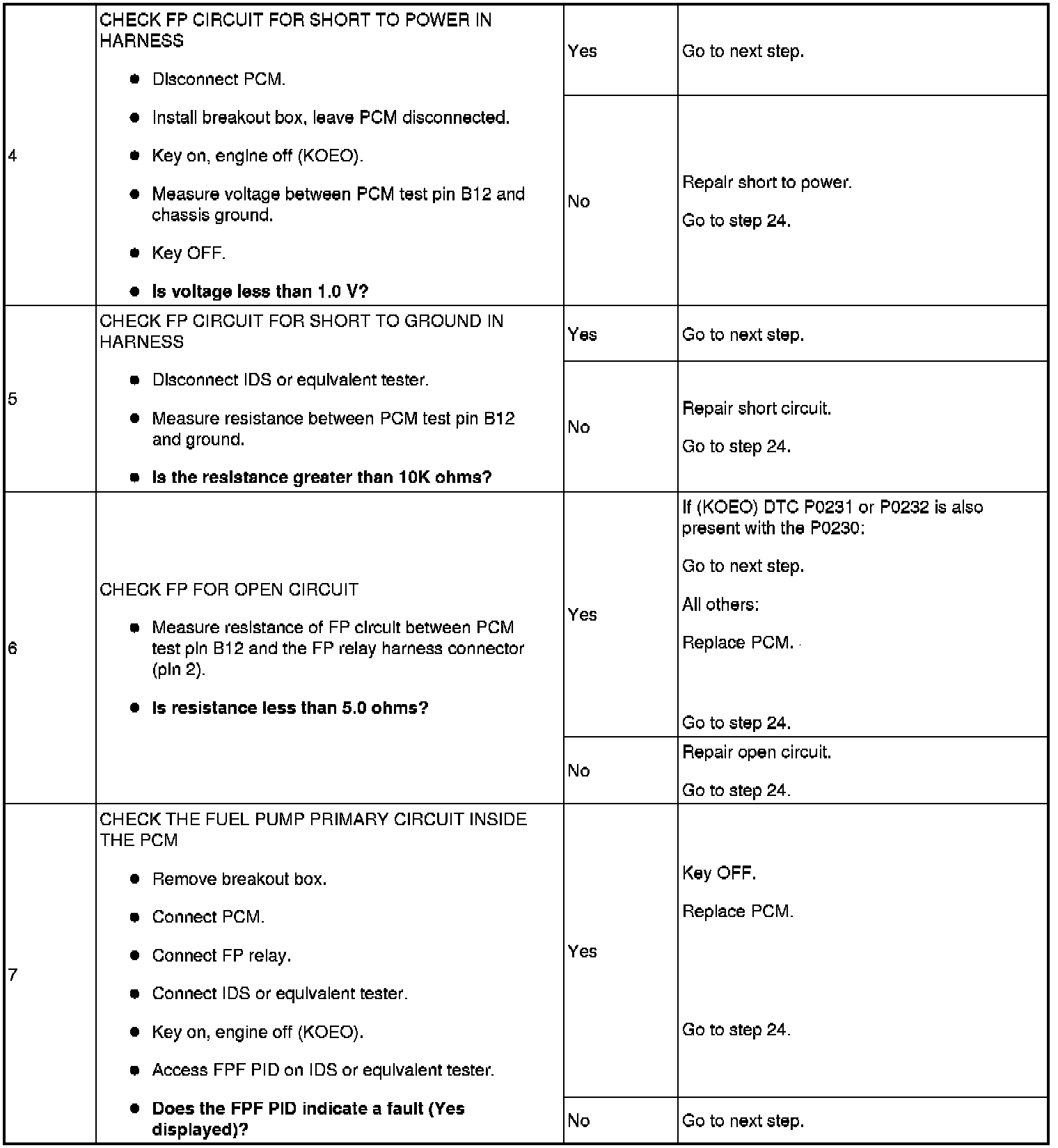

Step 4-Step 7:

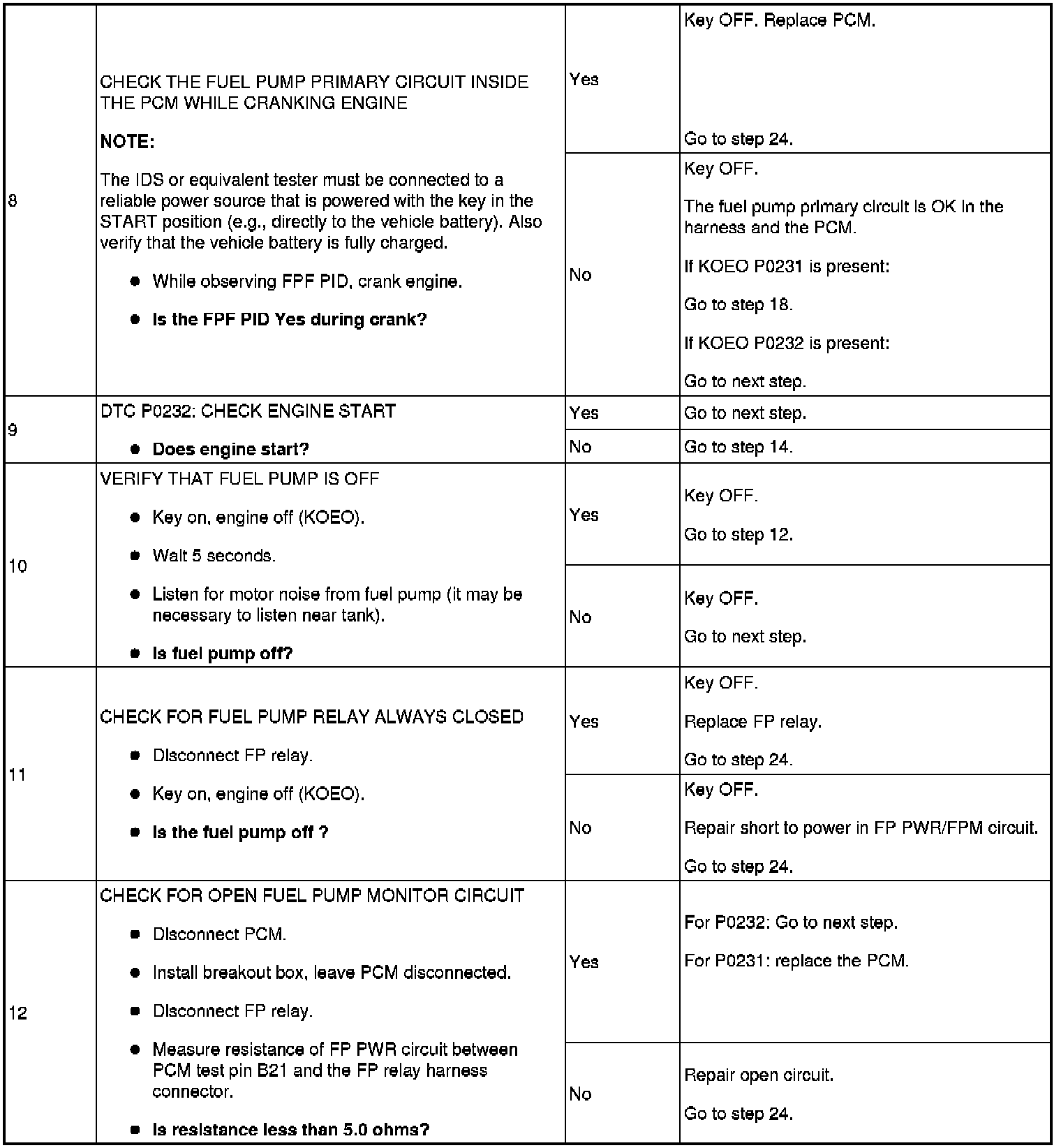

Step 8-Step 12:

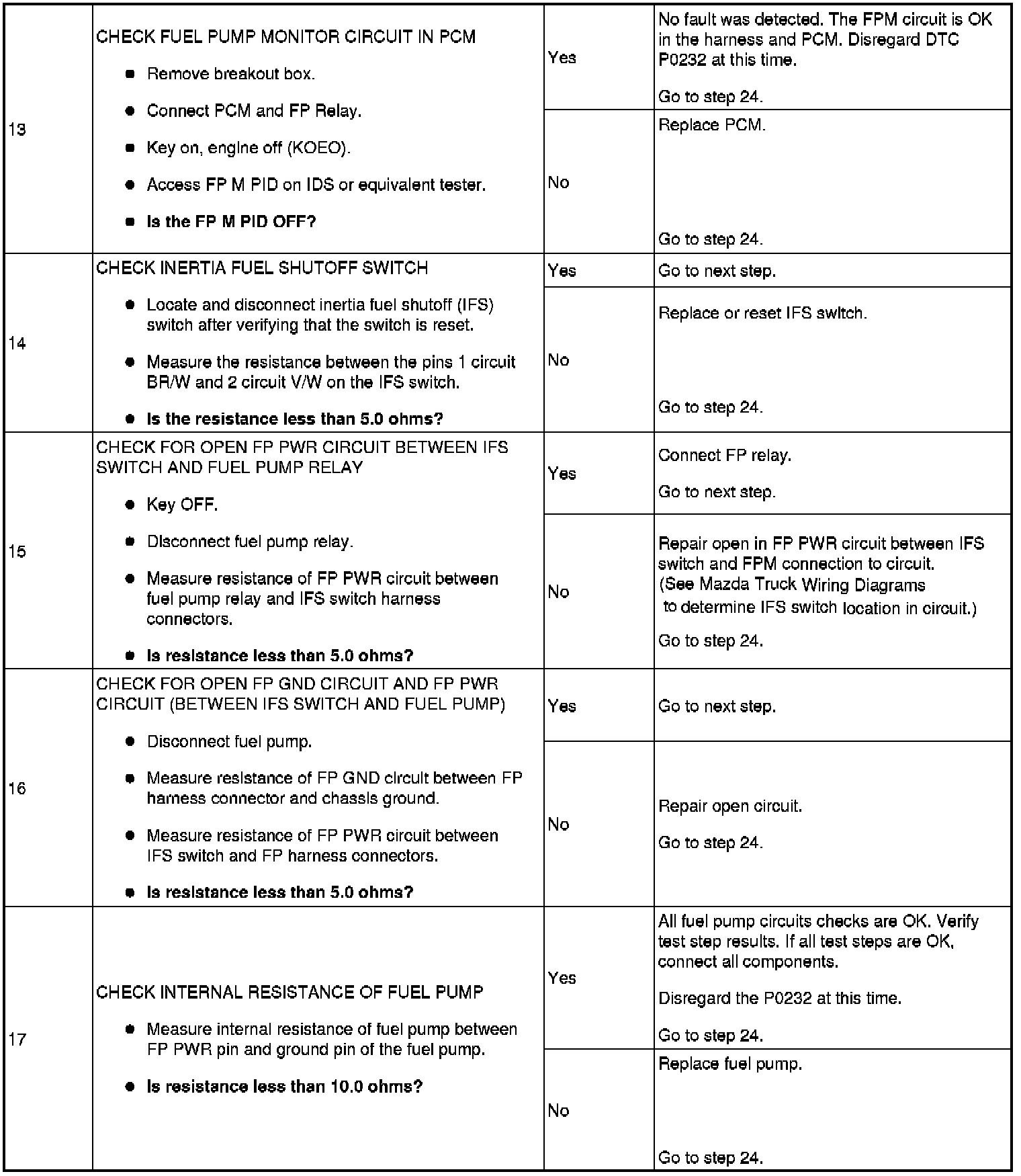

Step 13-Step 17:

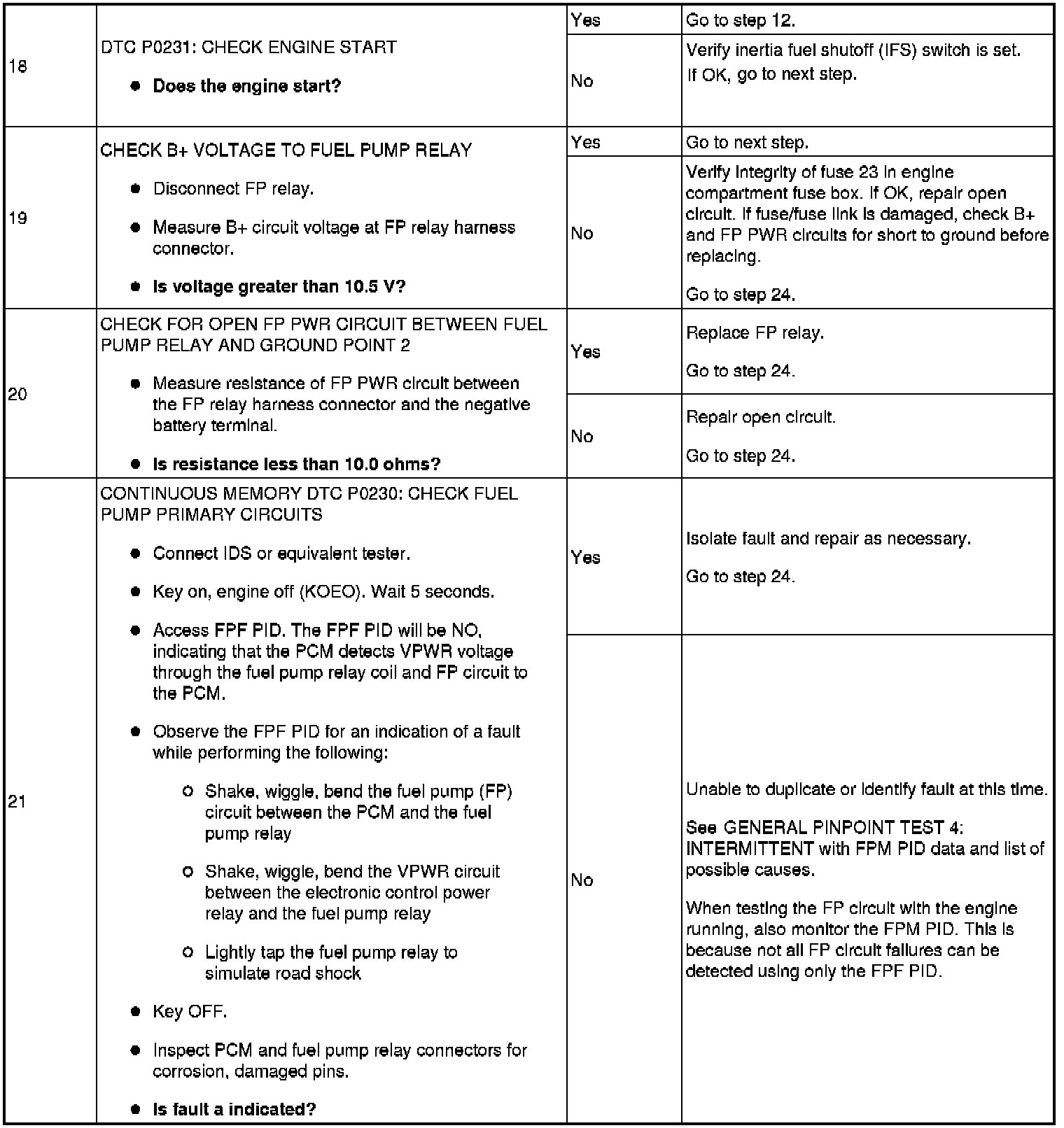

Step 18-Step 21:





Step 22:

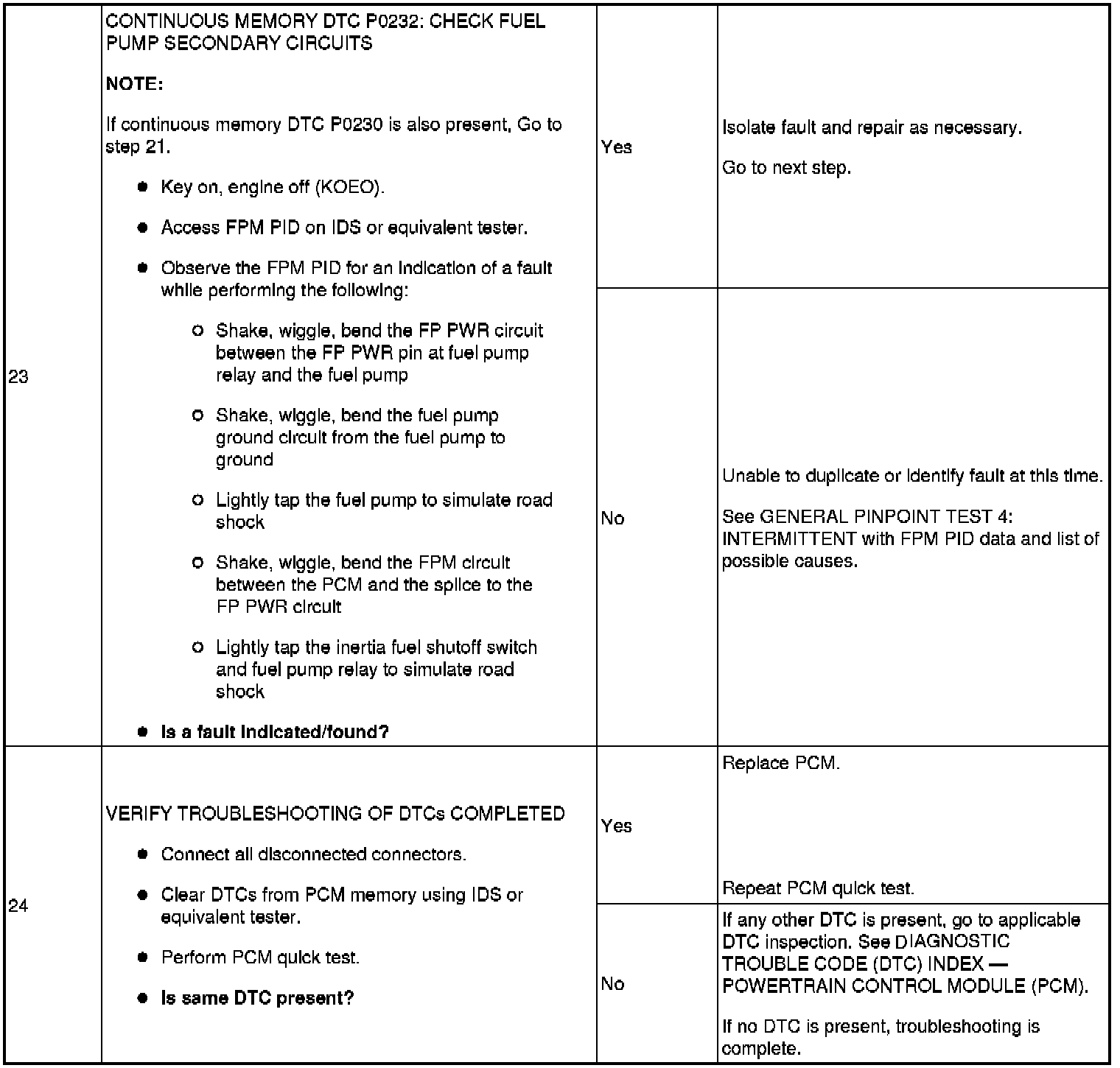

Step 23-Step 24:
