Throttle Cable/Linkage: Service and Repair

-
ACCELERATOR CABLE REMOVAL / INSTALLATION - 2.3L

1. Remove the bolts and the accelerator control splash shield.

2. Disconnect the accelerator cable from the throttle lever.

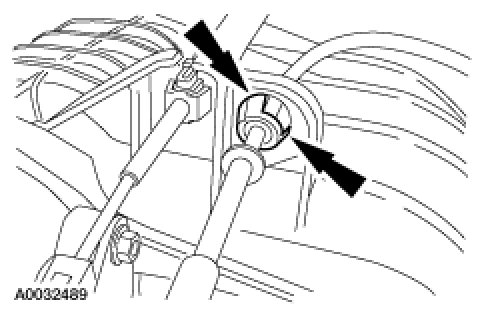

3. Depress the tabs and remove the accelerator cable from the intake manifold.

4. Disconnect the accelerator cable from the accelerator pedal and shaft.

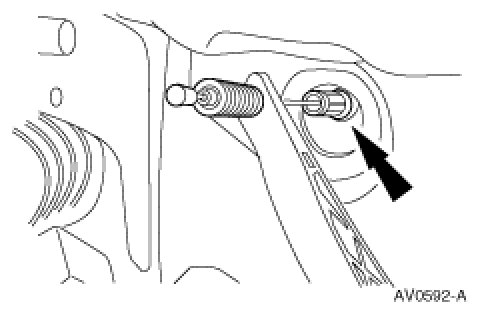

5. Depress the tabs and remove the accelerator cable.

6. To install, reverse the removal procedure.
