Steering Column Multifunction Switch




STEERING COLUMN MULTIFUNCTION SWITCH









Removal and Installation

1. Disconnect the negative battery cable. See Procedures.

2. Remove the ignition switch lock cylinder. See - Ignition Lock Cylinder - Functional or see - Ignition Lock Cylinder - Non Functional

3. If equipped, remove the tilt release lever/ handle.

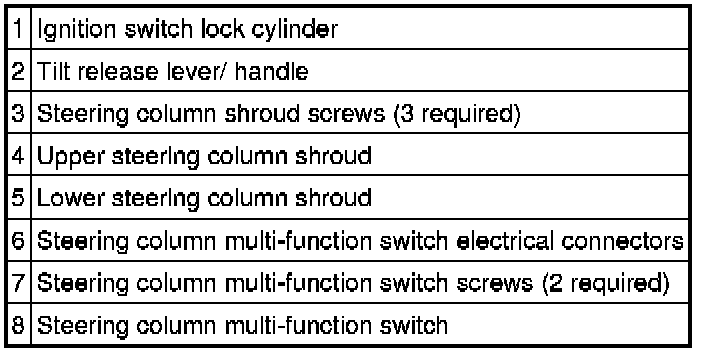

4. Remove the 3 steering column cover screws and upper and lower steering column shrouds.

5. Disconnect the multi-function switch electrical connectors.

6. Remove the 2 multi-function switch screws and the multi-function switch.

- To install, tighten to 3 N-m (0.3 kgf-m, 27 in-lbf).

7. To install, reverse the removal procedure.
