Pinpoint Test 3: The Transmission Control Switch (Over-Drive Do, On/Off) Is Not Operating Properly




AUTOMATIC TRANSMISSION EXTERNAL CONTROLS PINPOINT TEST 3: THE TRANSMISSION CONTROL SWITCH (OVER-DRIVE OD, ON/OFF) IS NOT OPERATING PROPERLY

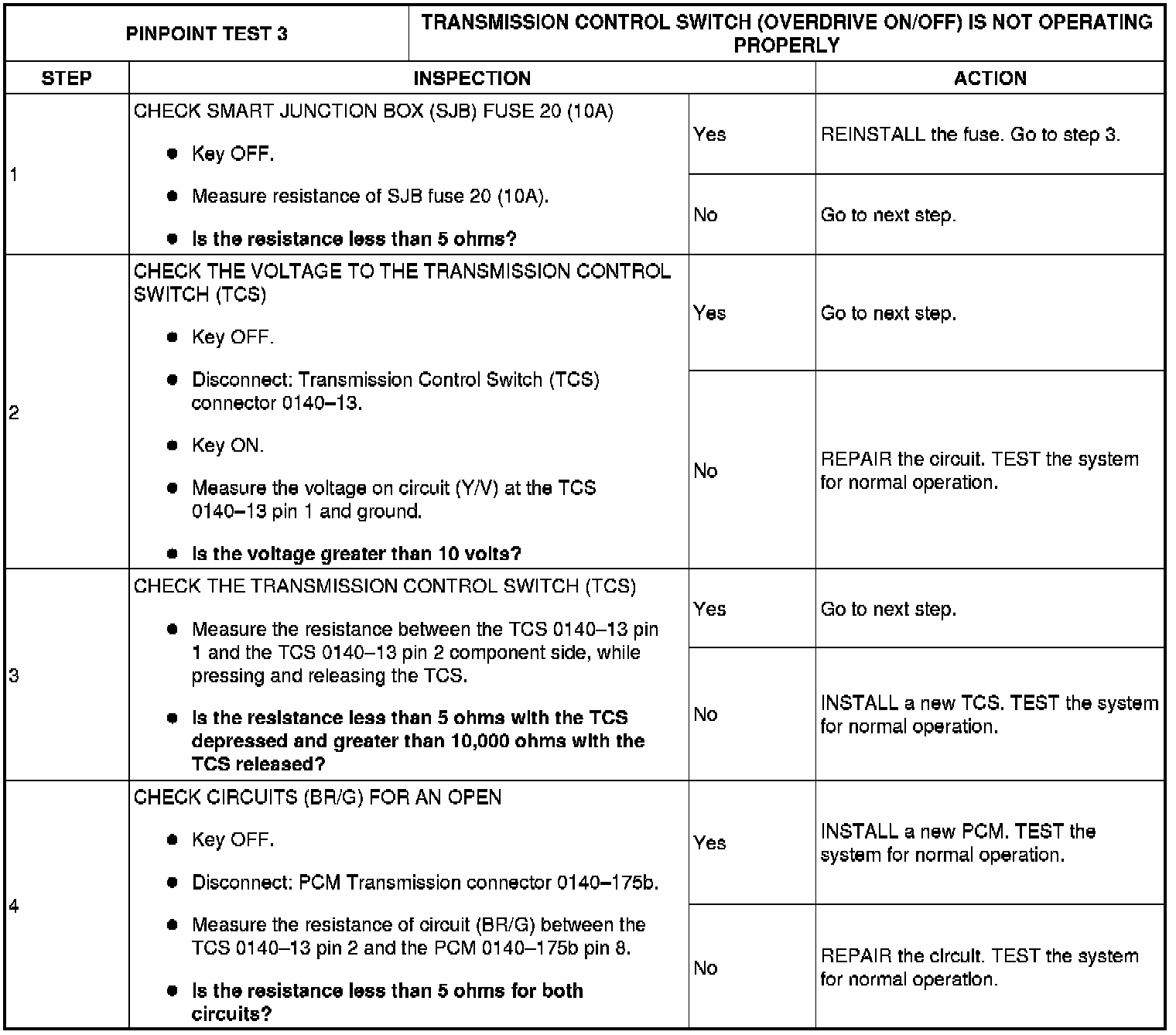

Step 1-Step 4:
