Transmission Temperature Sensor/Switch: Testing and Inspection
TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR 5R44E AND 5R55E ONLYNOTE:See
Automatic Transmission Diagnosis and the Control Valve Body Wire Harness Diagram.

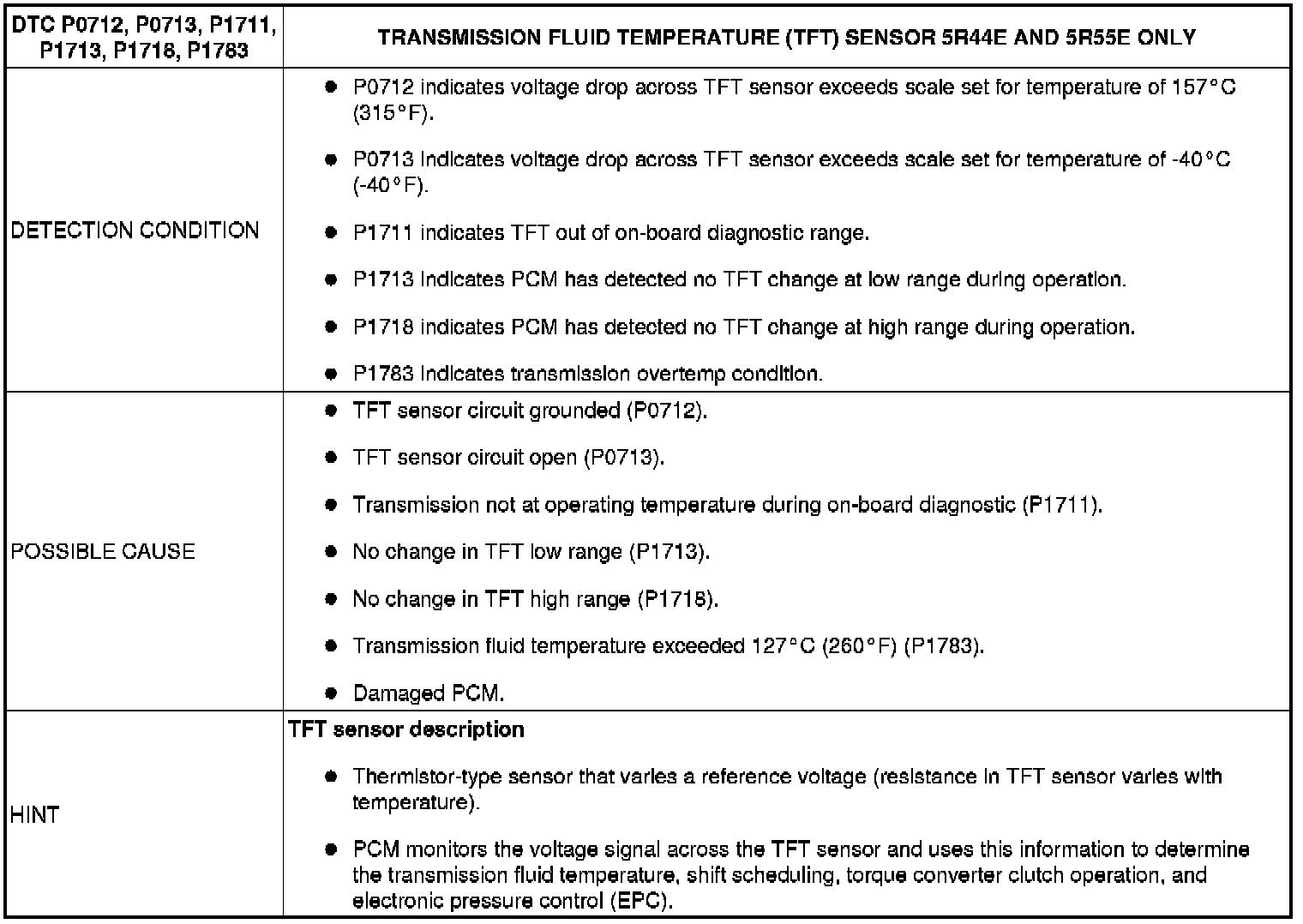

Detection Condition/Possible Cause:

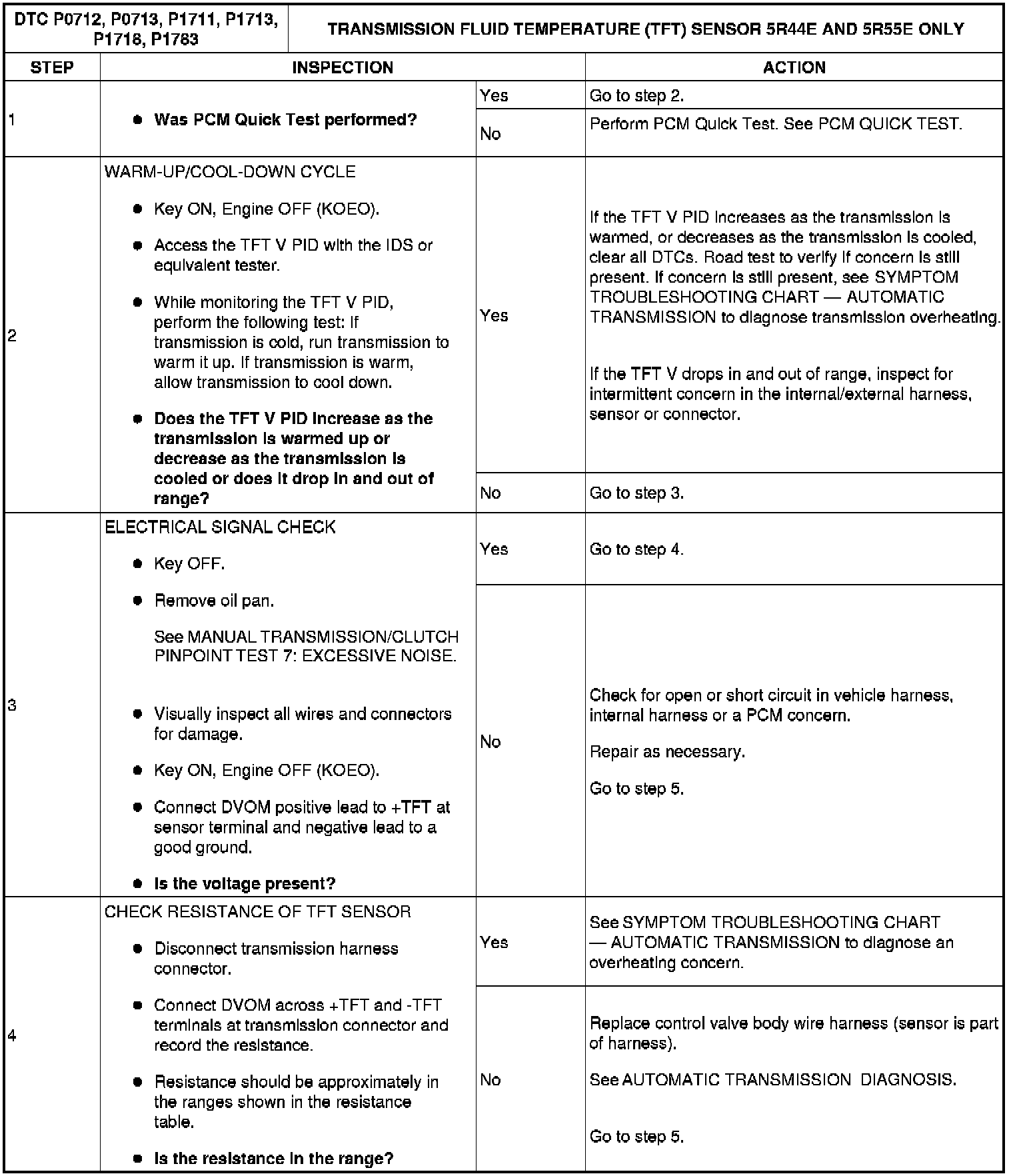

Step 1-Step 4:

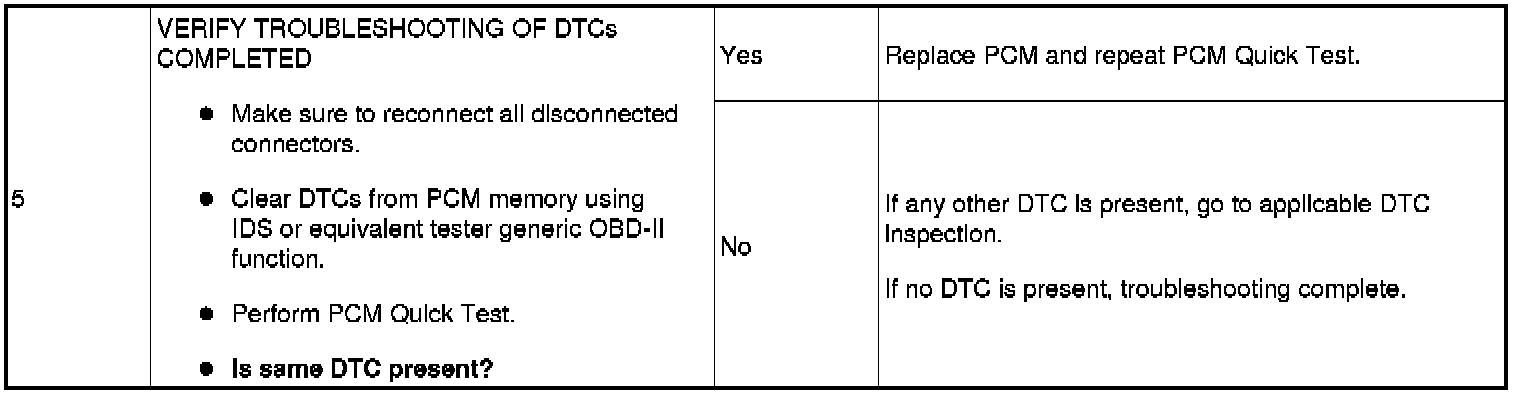

Step 5:
