Clutch Pedal Position Sensor / Switch: Service and Repair
CLUTCH PEDAL POSITION (CPP) SWITCH REMOVAL / INSTALLATION1. Disconnect negative battery cable. See
Procedures.

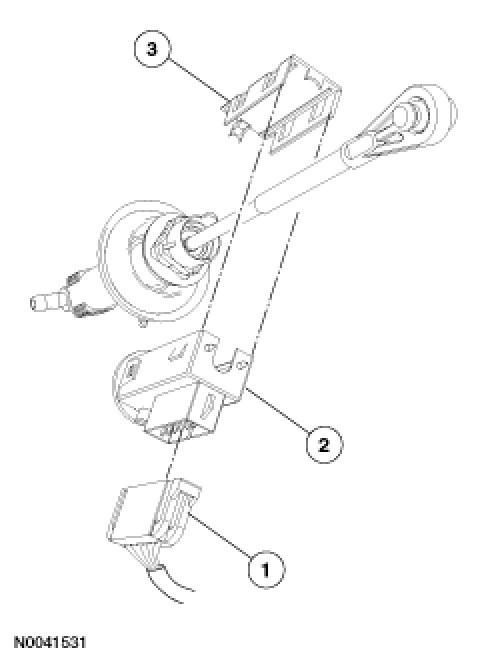

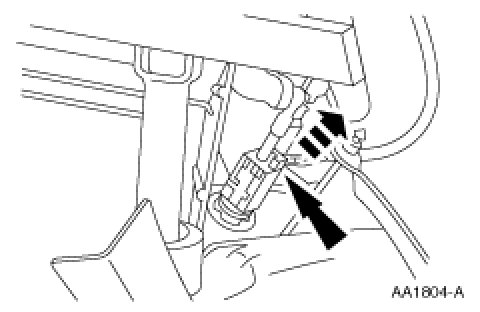

2. Disconnect clutch pedal position (CPP) switch electrical connector.

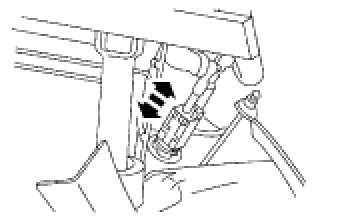

1. Spread the CPP switch apart and remove from the pedal rod.
1. To install, reverse the removal procedure.
