Windshield Washer Reservoir: Service and Repair
WASHER TANK REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the mudguard (RH). (Vehicles without washer fluid-level sensor)
3.
Remove the front bumper. (Vehicles with washer fluid-level sensor)
Removal and Replacement 4.

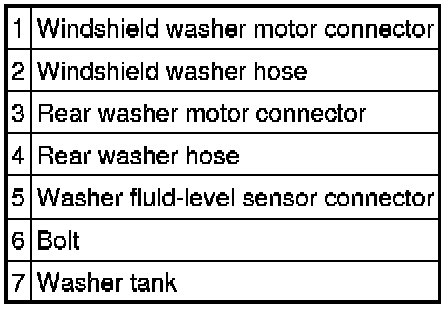

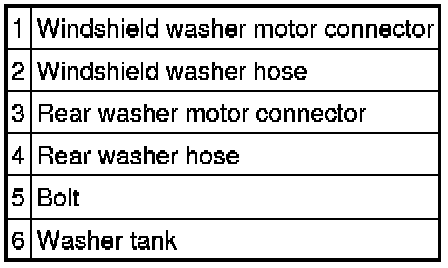

Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
