Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2009
>>
CX-7 FWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B2233
B2233

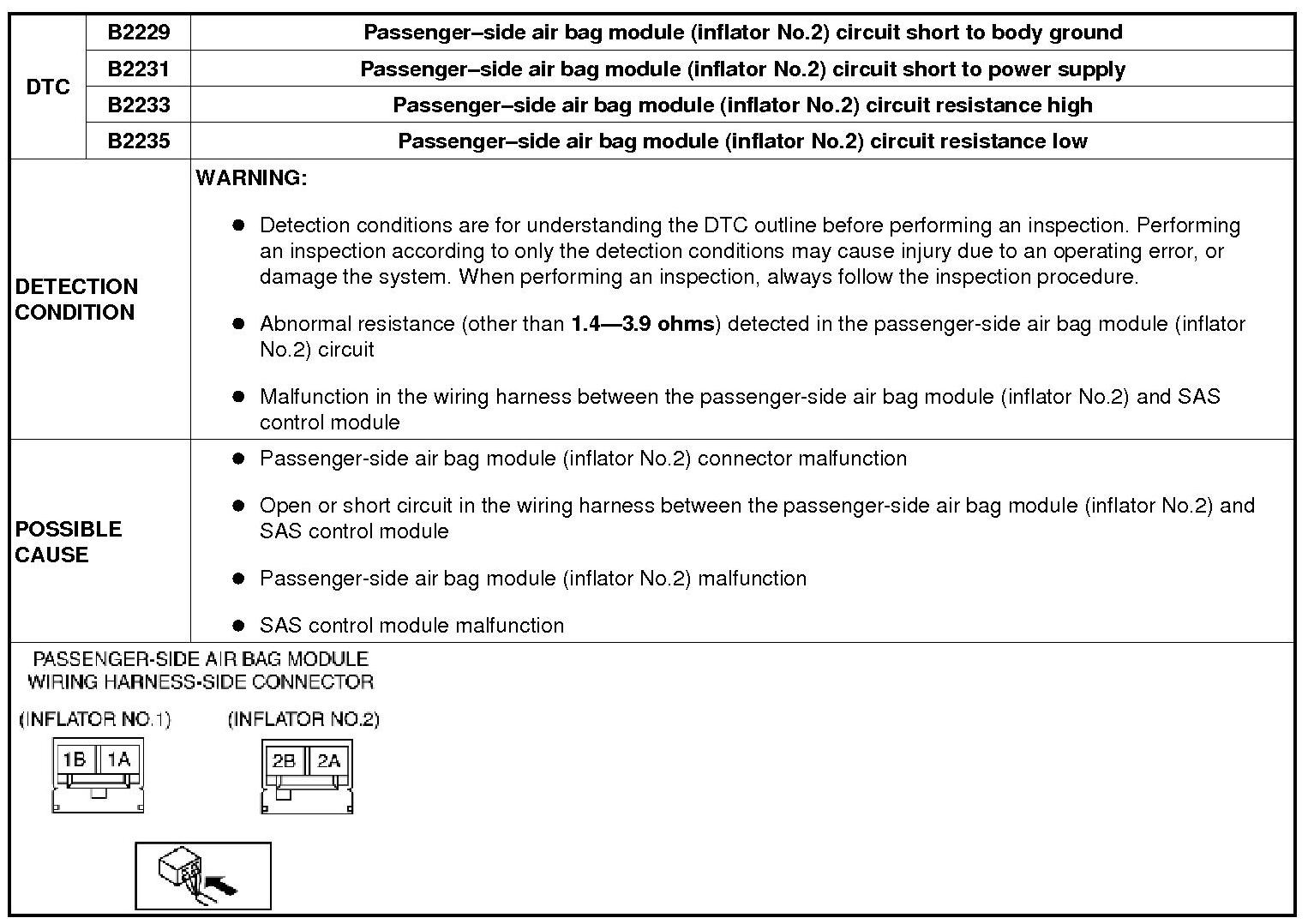

DTC B2229, B2231, B2233, B2235
Detection Condition/Possible Cause:
Diagnostic procedure
Step 1:
Step 2:
Step 3-Step 5:
