DTC P0722 [AW6A-EL, AW6AX-EL]

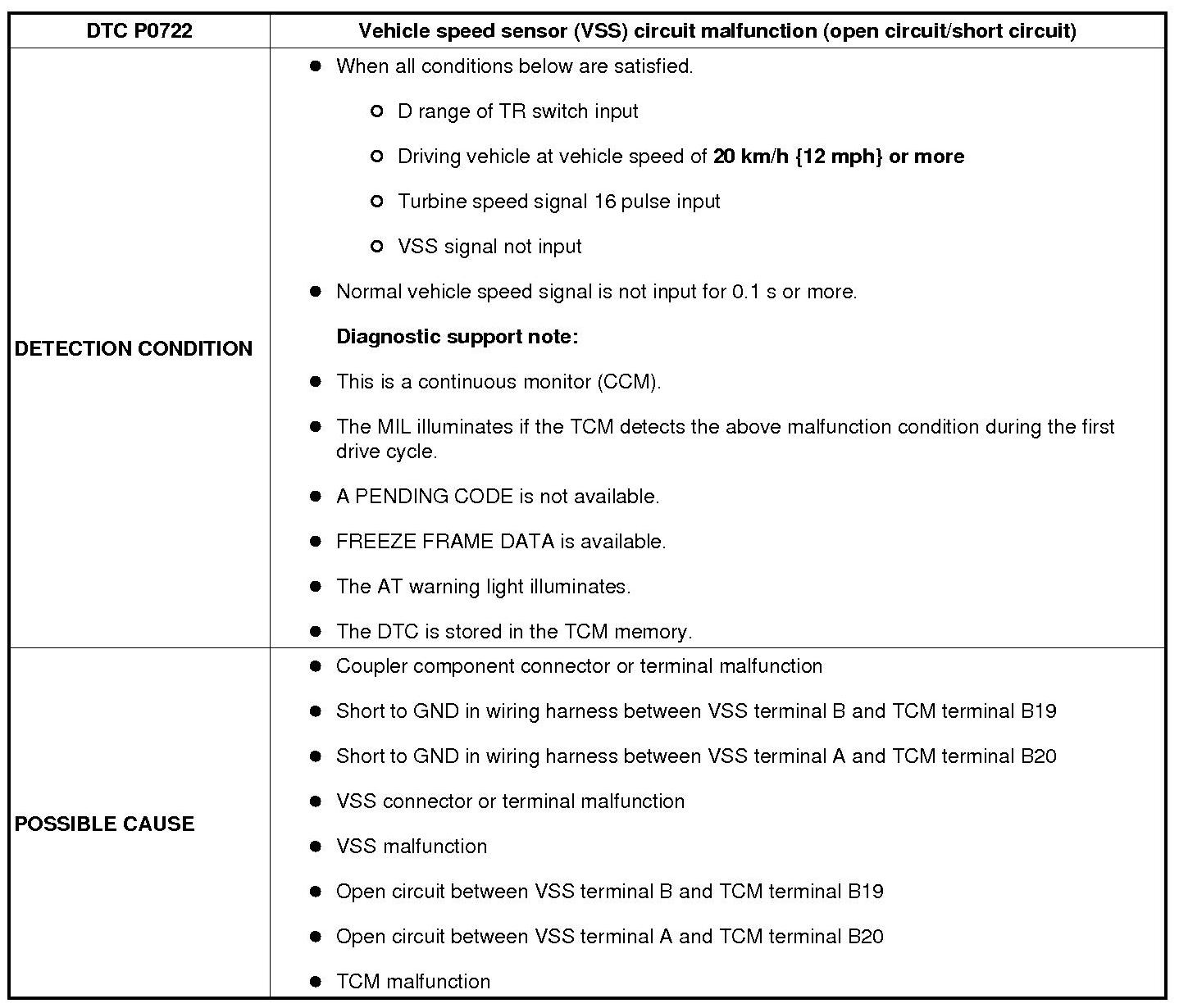

Detection Condition/Possible Cause (Part 1):
Detection Condition/Possible Cause (Part 2):
Diagnostic procedure
Step 1-Step 6:
Step 7-Step 9:
