No.6 Liftgate Turns Over Operation And PLG Buzzer Sounds 1 Time, While Auto Open/Close Function [Power Liftgate (PLG) System]




No.6 LIFTGATE TURNS OVER OPERATION AND PLG BUZZER SOUNDS 1 TIME, WHILE AUTO OPEN/CLOSE FUNCTION [POWER LIFTGATE (PLG) SYSTEM]

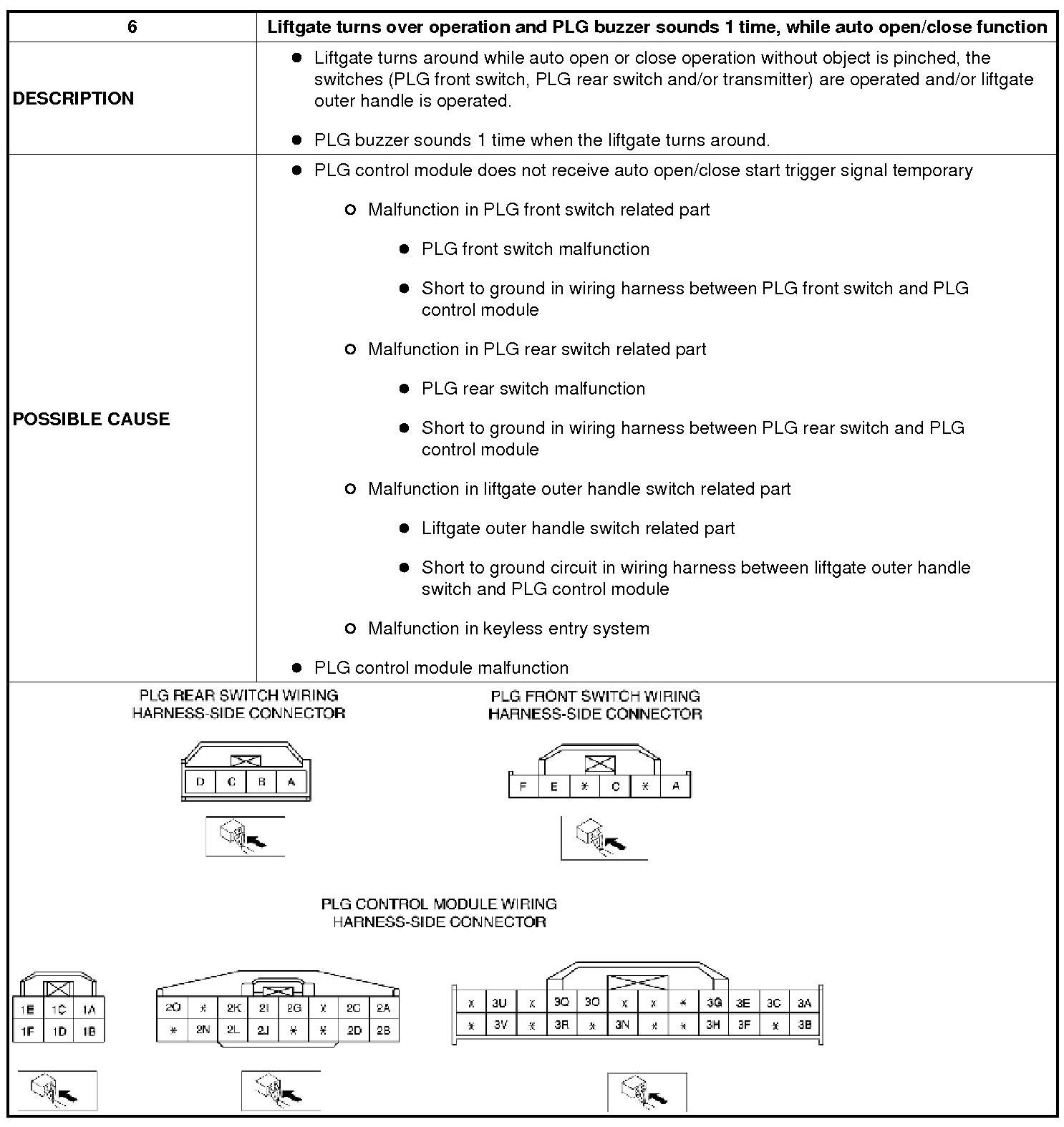

Description/Possible Cause:





When performing an asterisked (*) troubleshooting inspection, slightly shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, verify that the connectors, terminals and wiring harnesses are connected correctly and undamaged. Diagnostic procedure

Step 1-Step 5:

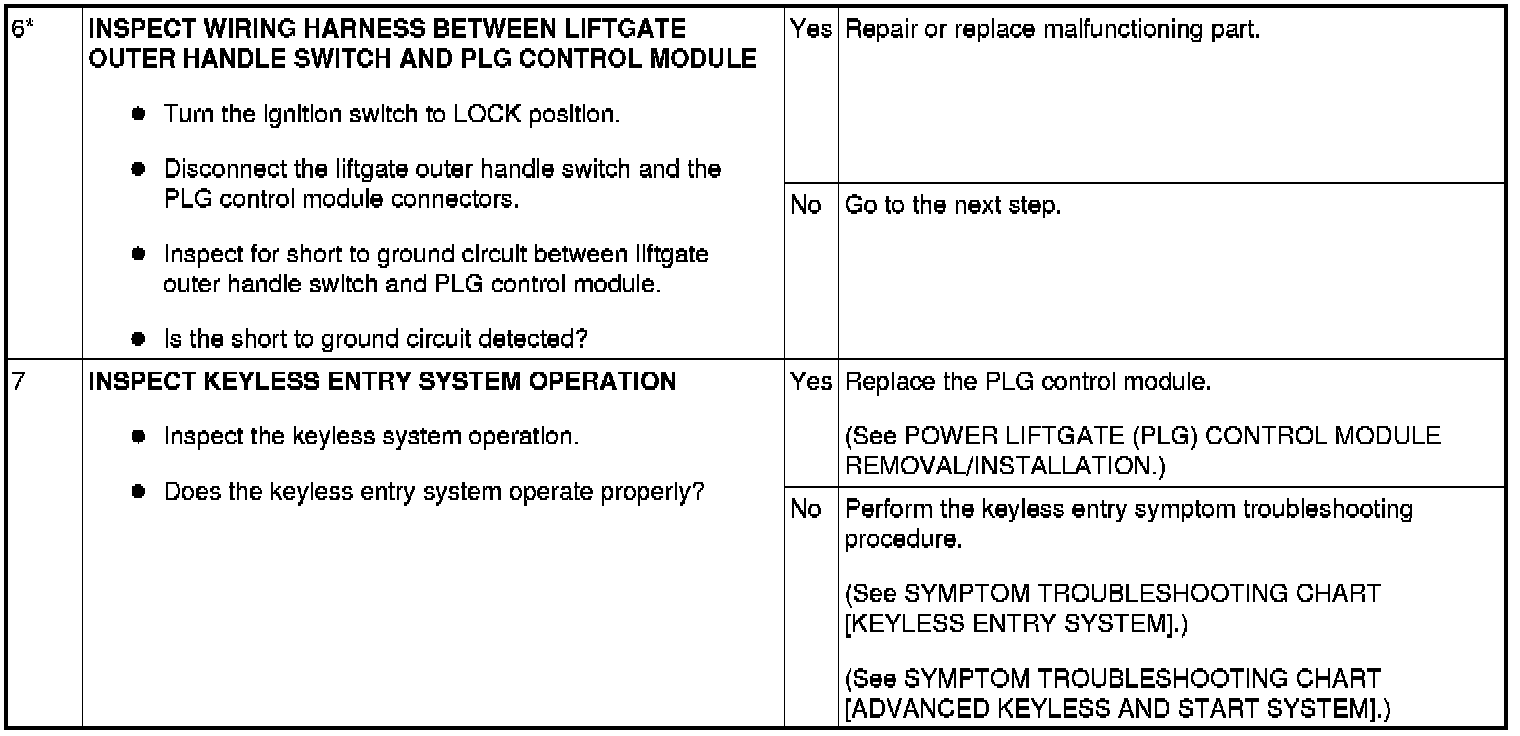

Step 6-Step 7:
