Windshield Washer Hose Removal/Installation




WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

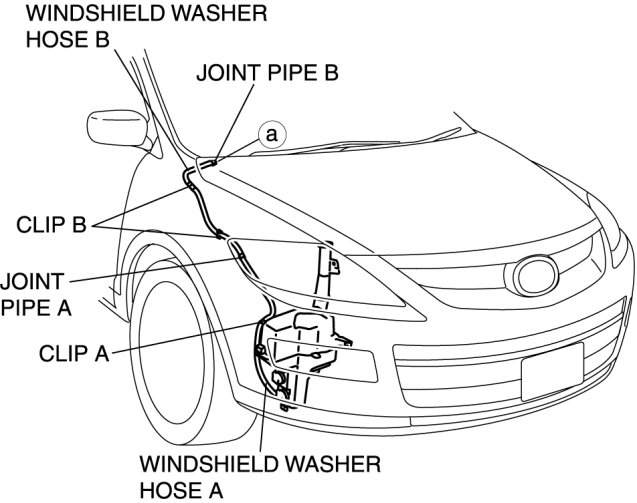

1. Remove the splash shield (RH). Service and Repair

2. Disconnect windshield washer hose A from the windshield washer motor.






3. Remove windshield washer hose A from clip A.

4. Disconnect joint pipe A and remove windshield washer hose A.

5. Detach clips B.

6. Disconnect joint pipe A and B and remove windshield washer hose B.

7. Remove the windshield wiper arm and blade. Windshield Wiper Arm And Blade Removal/Installation

8. Remove the cowl grille. Cowl Grille Removal/Installation

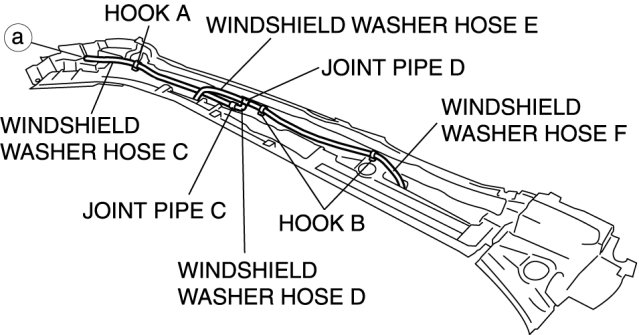

9. Remove windshield washer hose C from hook A.






10. Disconnect joint pipe B and C, than remove windshield washer hose C.

11. Disconnect joint pipe C and remove windshield washer hose D.

12. Disconnect windshield washer hose E from the windshield washer nozzle.

13. Disconnect joint pipe D and remove windshield washer hose E.

14. Remove the windshield washer hose F from the hooks B.

15. Disconnect windshield washer hose F from the windshield washer nozzle.

16. Disconnect joint pipe D and remove windshield washer hose F.

17. Install in the reverse order of removal.
