Front Fender: Service and Repair
FRONT FENDER PANEL REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
Removal and Replacement 2.
Remove the front
bumper.
Removal and Replacement 3.
Remove the front combination lights.
Service and Repair 4.
Remove the side step molding.
5.

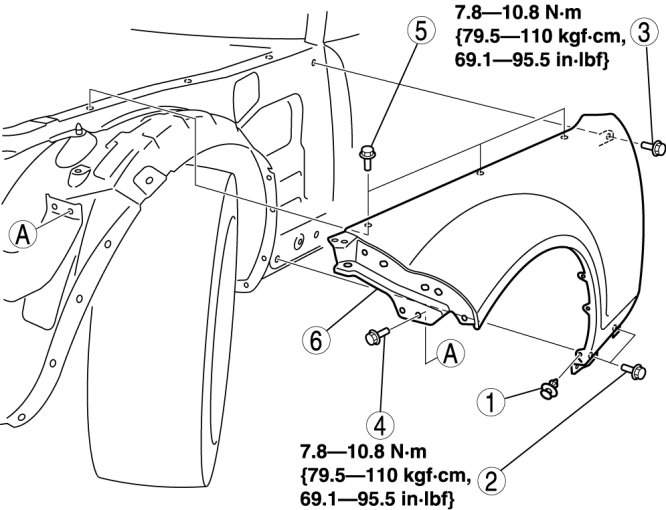

Remove in the order indicated in the table.
6.
Install in the reverse order of removal.
