Power Mirror Switch: Service and Repair

POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the door trim. Removal and Replacement

4. Remove the handle pull. Overhaul

5. Remove the armrest. Overhaul

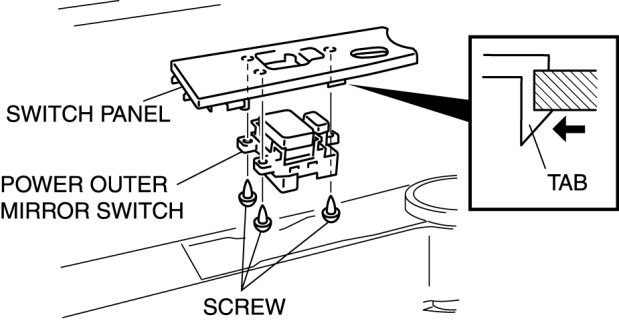

6. Remove the switch panel from the door trim by depressing the tab.

7. Remove the screws and the power outer mirror switch.

8. Install in the reverse order of removal.
