Power Retractable Hardtop Control Module Bracket Removal/Installation




POWER RETRACTABLE HARDTOP CONTROL MODULE BRACKET REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the following parts:
a. Console Console Removal/Installation

b. Quarter trim Quarter Trim Removal/Installation

c. Scuff plate Scuff Plate Removal/Installation

d. Tire house trim Tire House Trim Removal/Installation

e. Aeroboard Service and Repair

f. Front seat back bar garnish Seat Back Bar Garnish Removal/Installation

g. Back trim Back Trim Removal/Installation

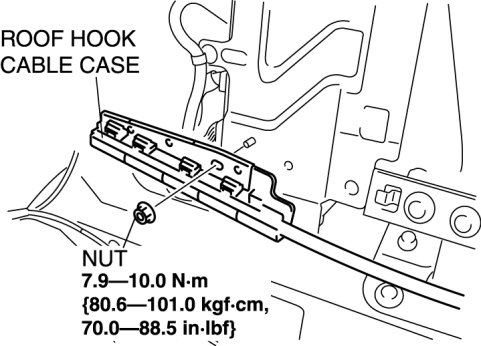

4. Remove the roof hook cable case.

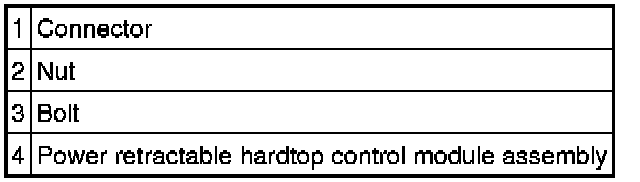

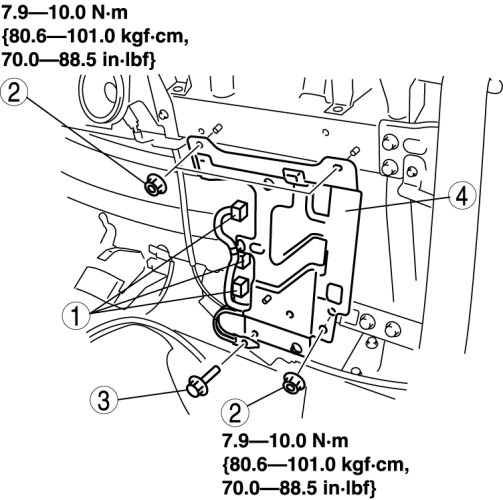

5. Remove in the order indicated in the table.

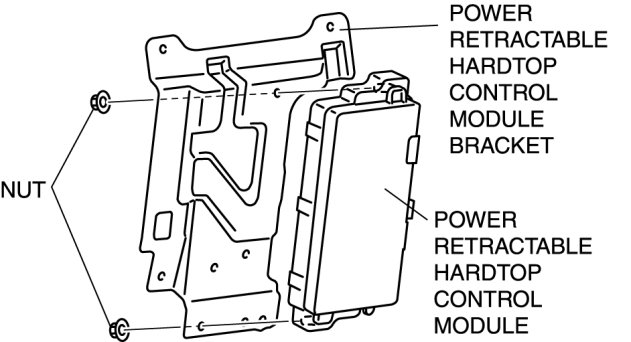

6. Remove the nuts.






7. Remove the power retractable hardtop control module from the power retractable hardtop control module bracket.

8. Install in the reverse order of removal.
