Power Retractable Hardtop Control Module Removal/Installation

POWER RETRACTABLE HARDTOP CONTROL MODULE REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See Removal and Replacement)

3. Remove the service hole cover (LH) of the back trim.

4. Partially peel back the power retractable hardtop cover.

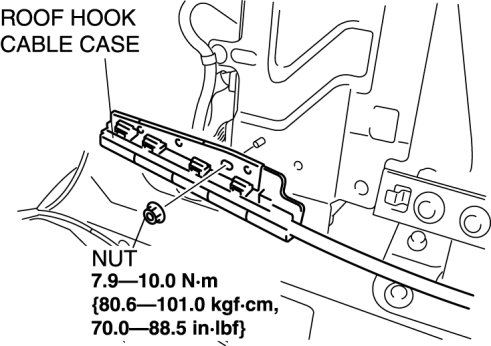

5. Remove the roof hook cable case.

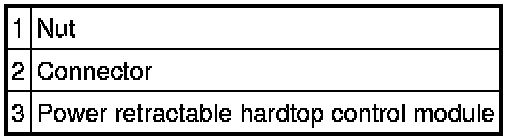

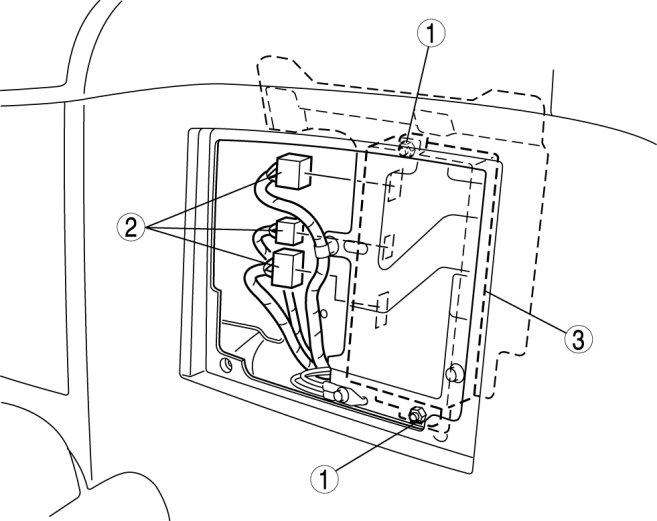

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.
