Cruise Control Switch: Testing and Inspection

CRUISE CONTROL SWITCH INSPECTION [LF]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable and wait for 1 min or more. Removal and Replacement

3. Remove the driver-side air bag module. Driver-Side Air Bag Module Removal/Installation

4. Disconnect the cruise control switch connector.

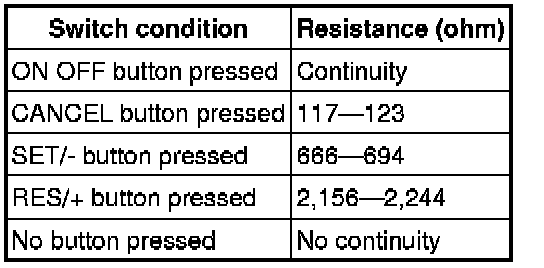

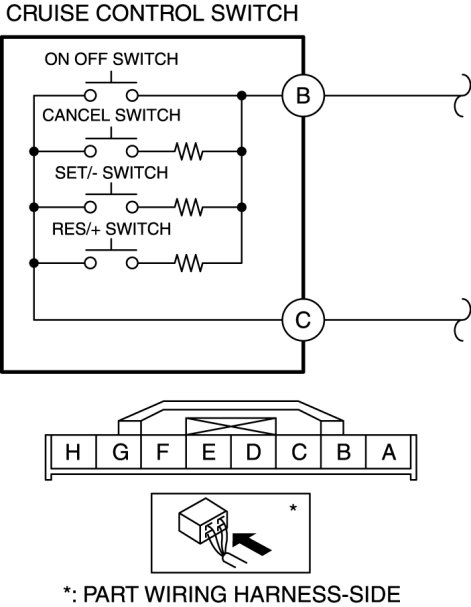

5. Inspect for resistance and continuity between terminals B-C using a tester.

- If not as specified, replace the cruise control switch. Service and Repair
