Heater Core Case: Service and Repair
AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
Removal and Replacement 3.
Remove the airflow mode actuator.
[Full-Auto Air Conditioner] [Manual Air Conditioner] 4.

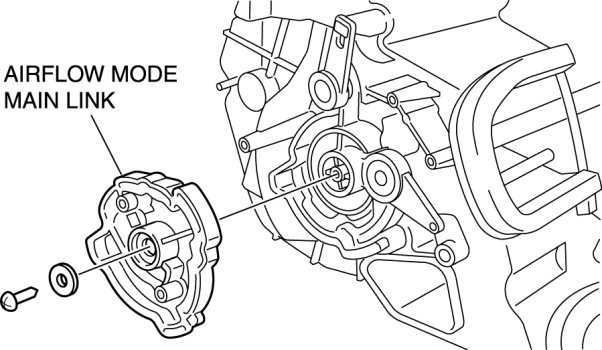

Remove the airflow mode main link as shown in the figure.
5.
Install in the reverse order of removal.
