Solar Sensor: Service and Repair
SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] 1.
Remove the battery cable.
2.
Disconnect the negative battery cable.

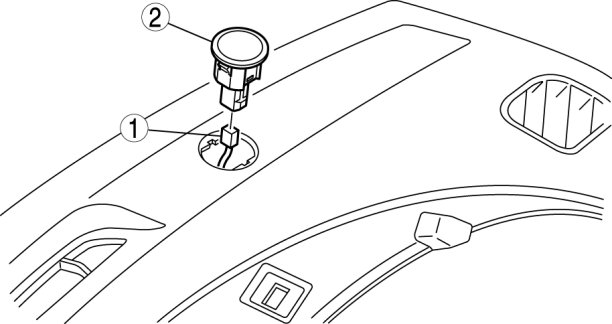

Removal and Replacement 3.
Pry the solar radiation sensor from the dashboard using a flathead screwdriver wrapped with protective tape.
4.
Remove in the order indicated in the table.
5.
Install in the reverse order of removal.
