Turn Signal Switch: Testing and Inspection
LIGHT SWITCH INSPECTION 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
Removal and Replacement 3.
Remove the column cover.
Service and Repair 4.
Remove the light switch.
Service and Repair 5.

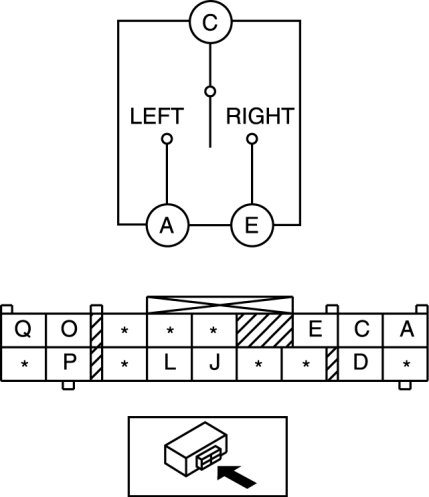

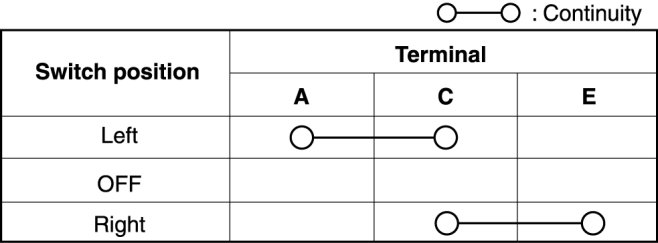

Verify that the continuity between the light switch terminals is as indicated in the table.
Turn Switch
