Jacking Positions

JACKING POSITIONS

WARNING:
- Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.

- Use safety stands to support the vehicle after it has been lifted.

NOTE:
- To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.

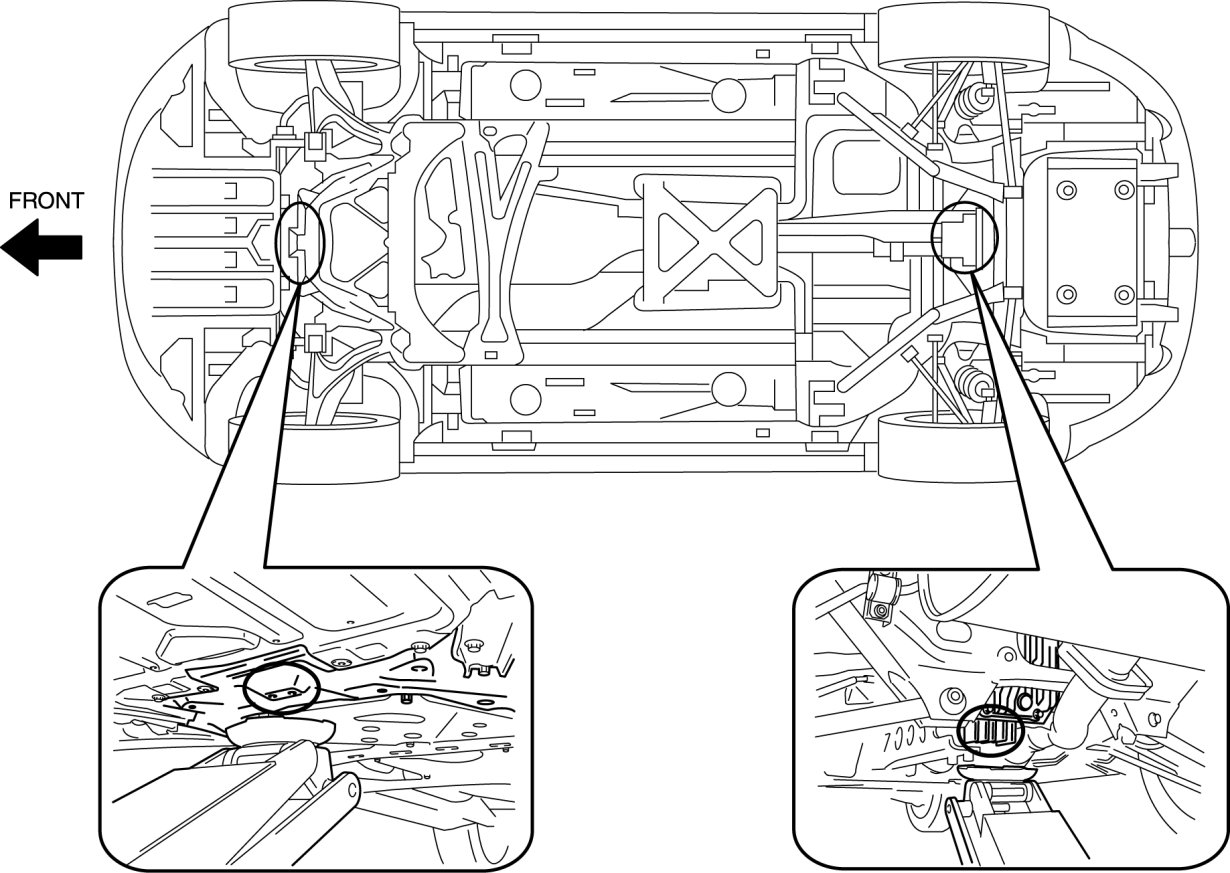

Front
- Near the center of the front crossmember.

Rear
- At the center of the rear differential.
