Manifold Pressure/Vacuum Sensor: Service and Repair
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REMOVAL/INSTALLATION [LF] 1.
Remove the battery cover.
2.
Disconnect the negative battery cable. (See
Removal and Replacement)
3.
Remove the dynamic chamber.
Service and Repair 4.

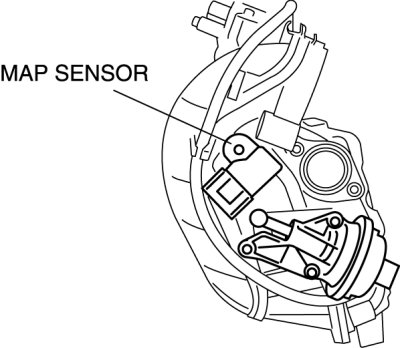

Remove the MAP sensor.
5.
Install in the reverse order of removal.
-
MAP sensor tightening torque
-
2.7-3.7 Nm {28-37 kgf-cm, 24-32 in-lbf}
