No.31 M Range Pos Light Is Off In M Range and/or In D Range With Direct Mode/M Range Pos Light On In D Range Not In Direct Mode




NO.31 M RANGE POSITION INDICATOR LIGHT DOES NOT ILLUMINATE IN M RANGE AND/OR IN D RANGE WITH DIRECT MODE/M RANGE POSITION INDICATOR LIGHT ILLUMINATES IN D RANGE WHILE NOT IN DIRECT MODE [SJ6A-EL]

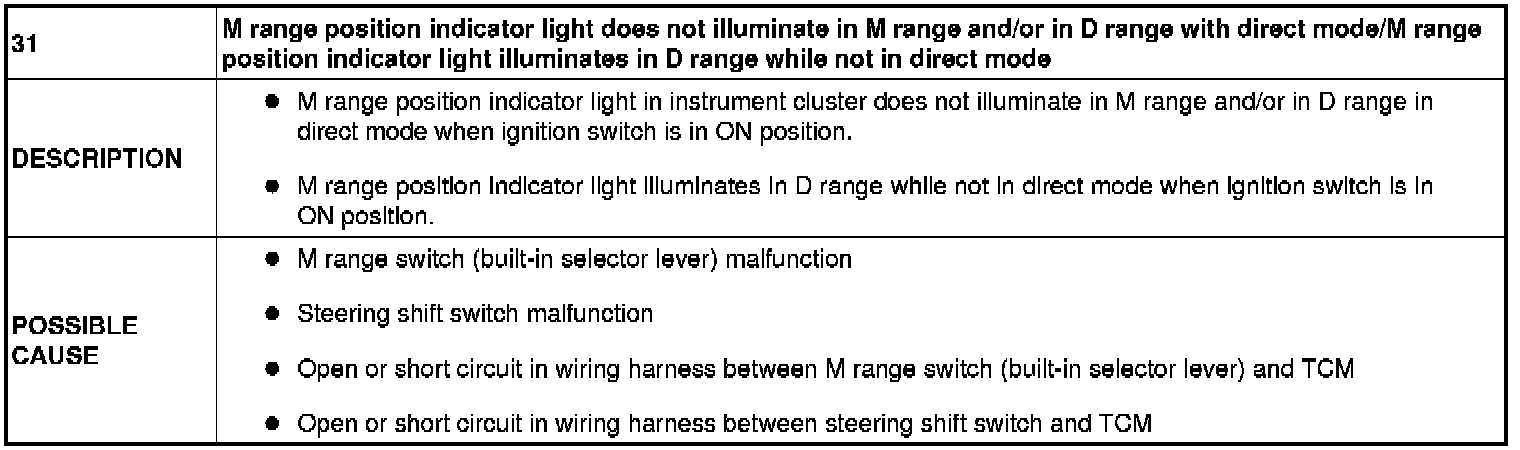

Description/Possible Cause:

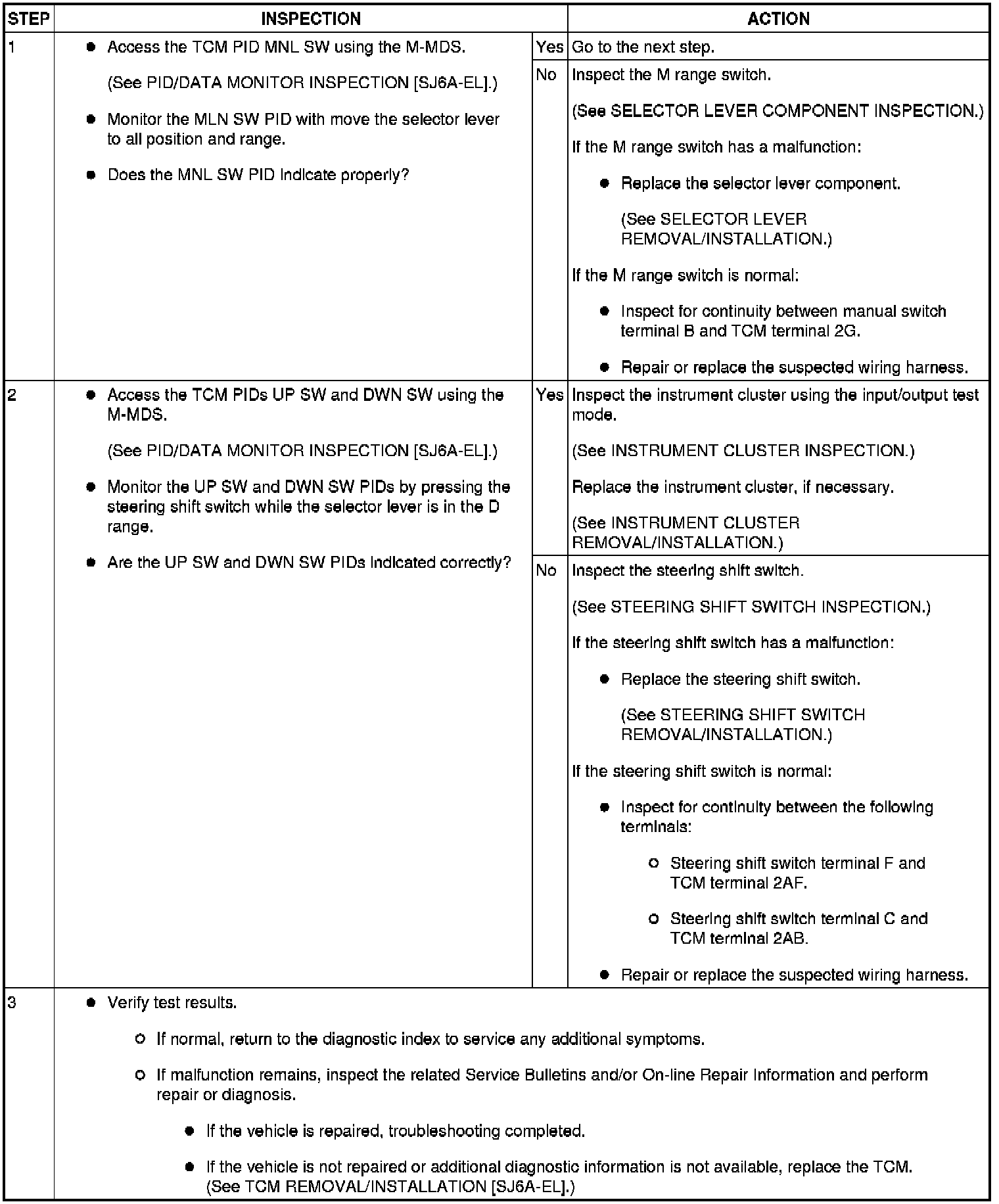

Diagnostic procedure

Step 1-Step 3:
