1ST/2ND Gear Component, 5TH/6TH Gear Component and Countershaft Assembly
1ST/2ND GEAR COMPONENT, 5TH/6TH GEAR COMPONENT AND COUNTERSHAFT ASSEMBLY 1.
Assemble in the order indicated in the table.

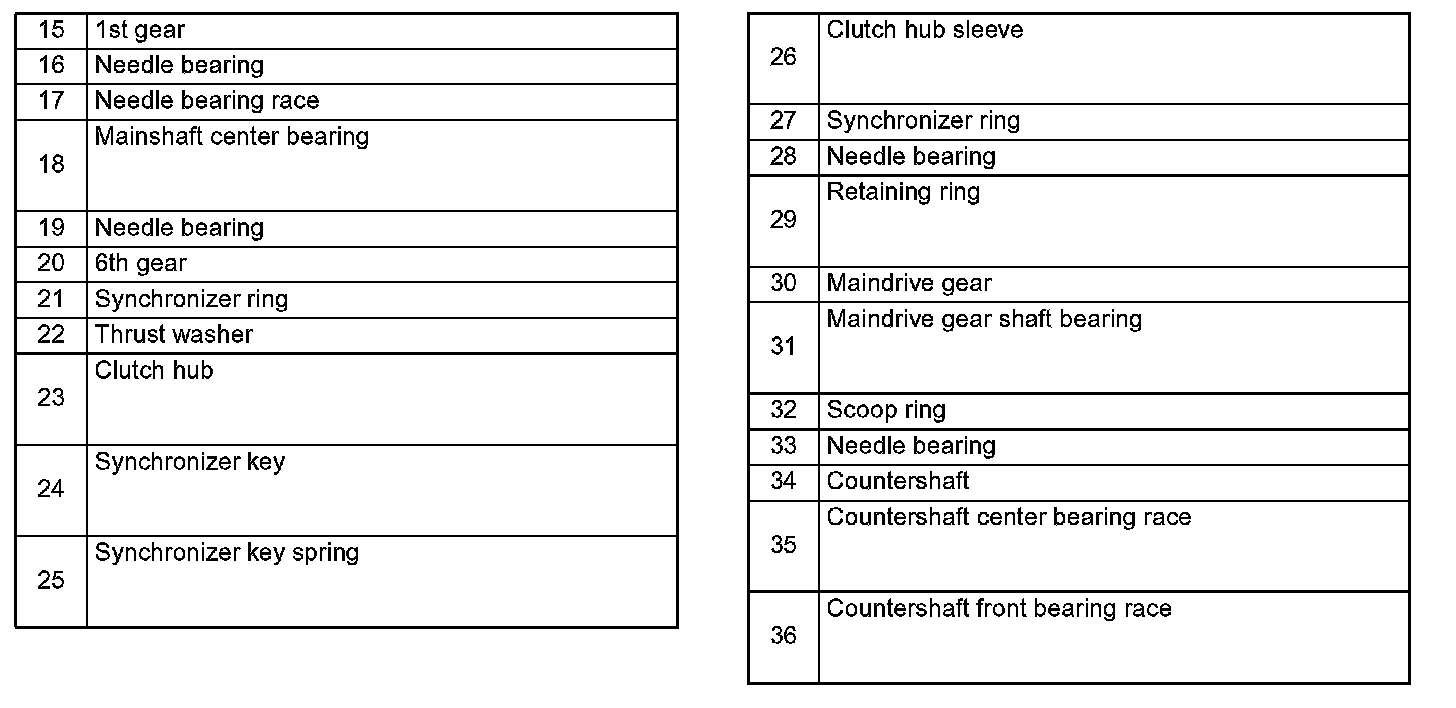

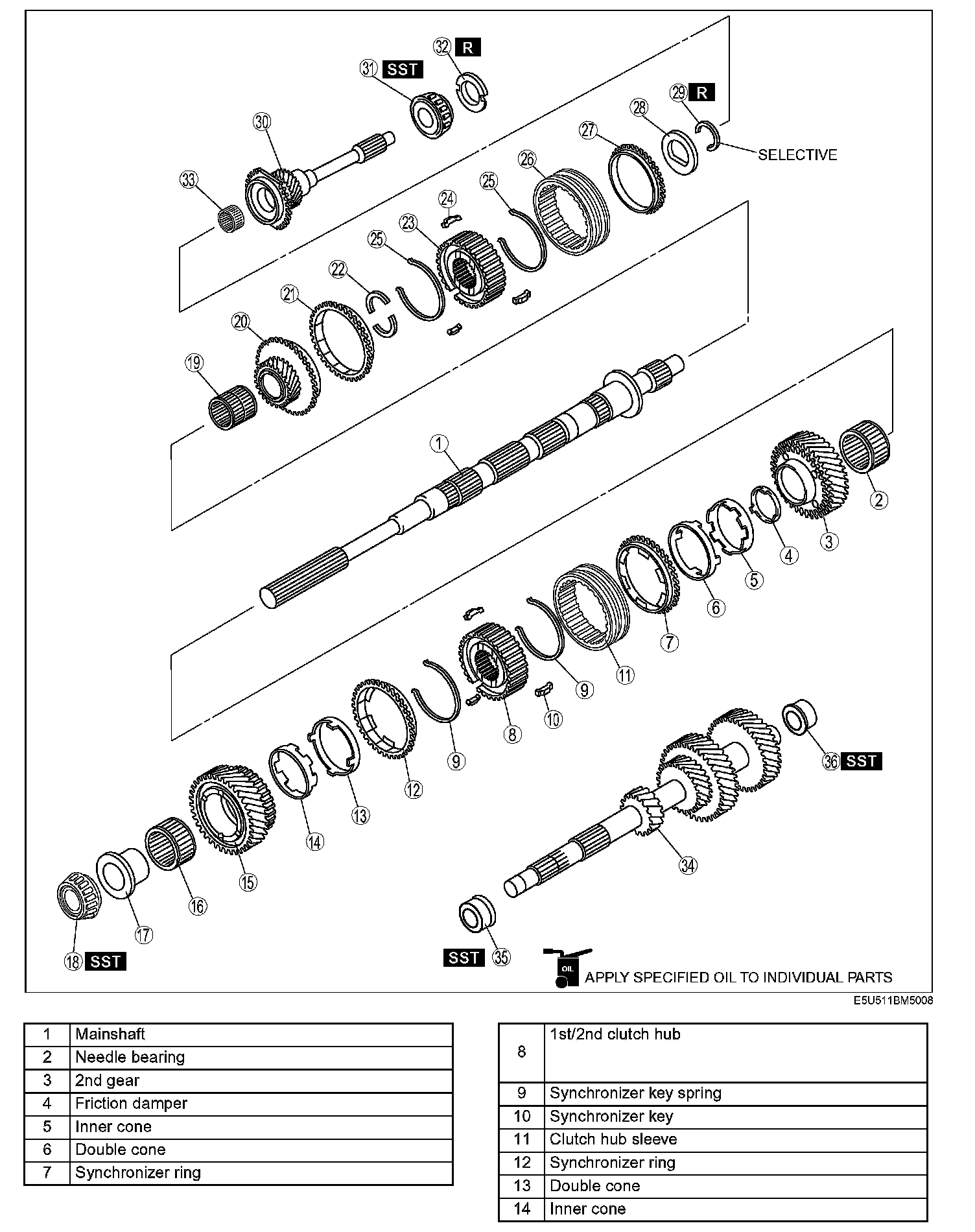

1ST/2ND Gear Component, 5TH/6TH Gear Component and Countershaft Assembly (Part 1):
1ST/2ND Gear Component, 5TH/6TH Gear Component and Countershaft Assembly (Part 2):
