5TH/6TH Clutch Hub Component Assembly Note

5th/6th Clutch Hub Component Assembly Note

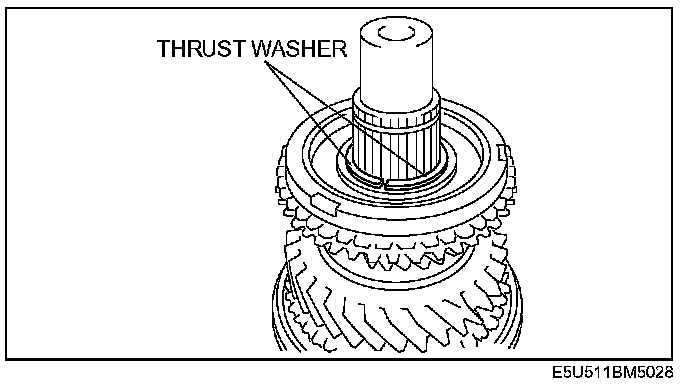

1. Place the thrust washers onto the 6th gear.

Note: Apply petroleum jelly making sure the thrust washer does not deviate.





2. Assemble the 5th/6th clutch hub component.

Caution:

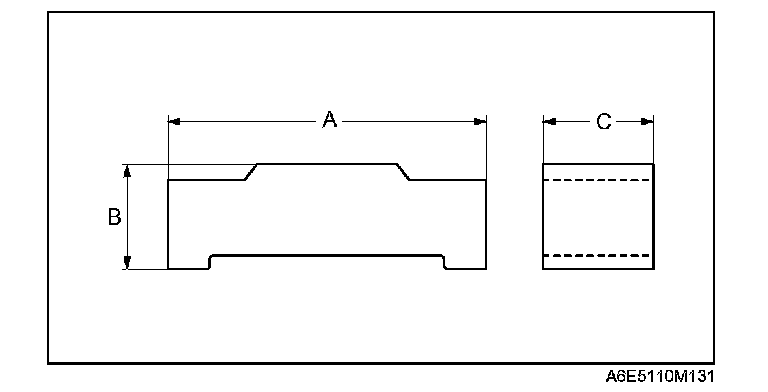

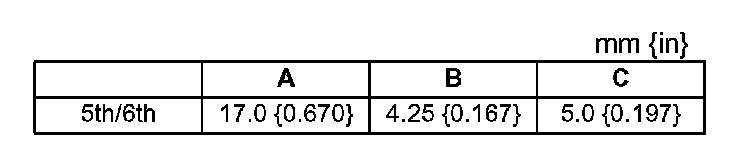

^ The standard synchronizer key dimensions are as follows:

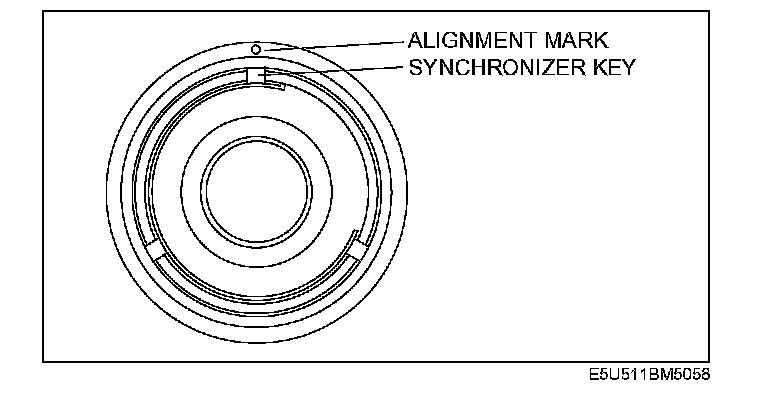

^ Align the clutch hub sleeve alignment mark with the clutch hub synchronizer key installation position and assemble.

3. Install the 5th/6th clutch hub component to the mainshaft.
4. Install the retaining ring.

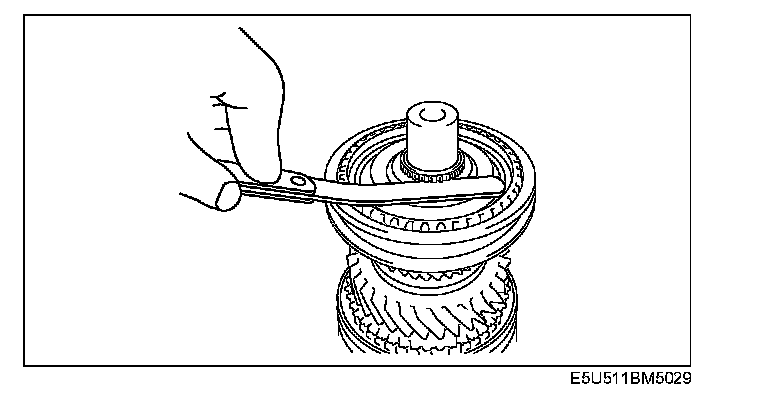

5. Measure the clearance between retaining ring and groove of the mainshaft.
^ If not within the specification, adjust by choosing the proper retaining ring.

5th/6th clutch hub end play:
0 - 0.05 mm (0 - 0.0019 in)

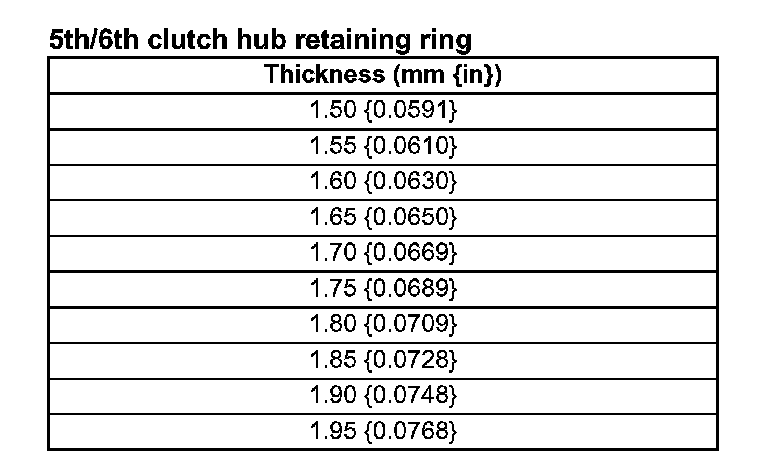

5th/6th clutch hub retaining ring
