Counter Lever Shaft Assembly Note
Counter Lever Shaft Assembly Note

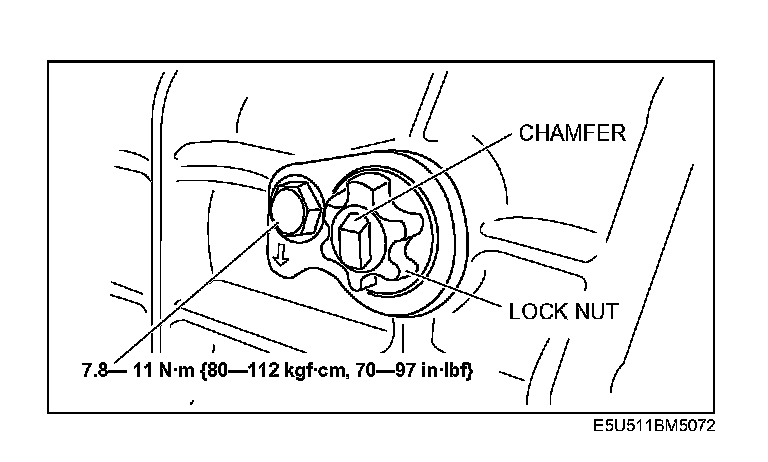

1. Install the counter lever shaft component.
Caution:
^ If the counter lever shaft has been replaced or the locknut is loose, assemble the counter lever shaft with the chamfer side of the shaft pointed straight upward.
^ Apply sealant to the threads of the locknut.
^ If there is an abnormality in the 3rd/4th shift stroke after assembling, loosen the locknut and readjust.
Locknut tightening torque:
37.3 - 51.9 N-m (3.81 - 5.29 kgf-m, 27.6 - 38.2 ft-lbf)
