Extension Housing Assembly Note
Extension Housing Assembly Note 1.

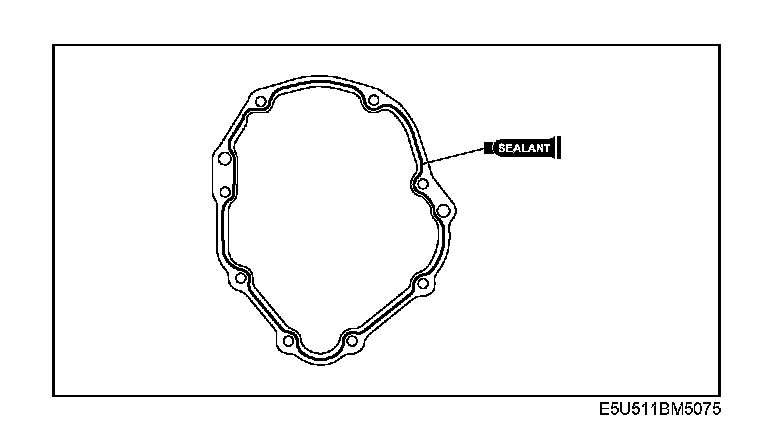

Apply sealant to the contact surfaces of the extension housing and transmission case as shown in the figure.
2.
Install the extension housing to the transmission case.
Tightening torque:
31.4 - 46 N-m (3.21 - 4.69 kgf-m, 23.2 - 33.9 ft-lbf)
