Oil Seal (Control Rod) Assembly Note

Oil Seal (control rod) Assembly Note

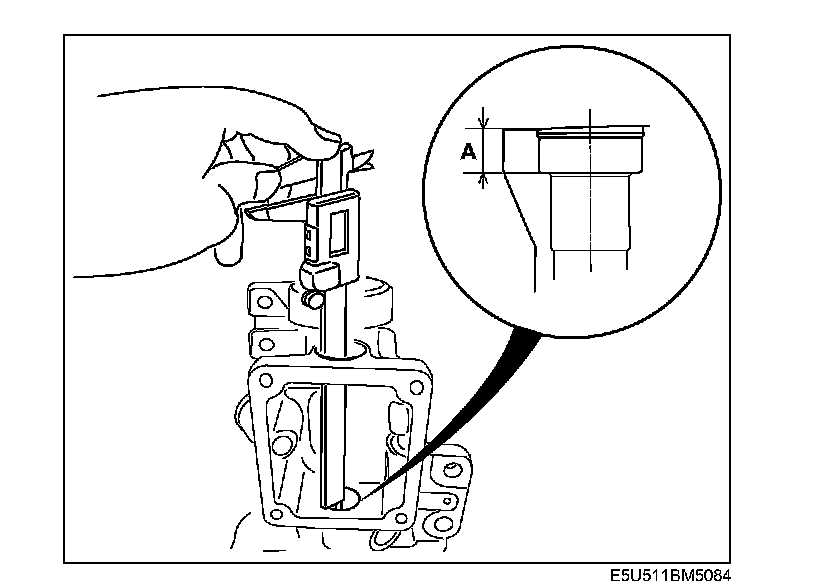

1. Measure the depth A of the oil seal installation hole as shown in the figure.
2. Calculate the oil seal installation depth B.

Formula: B = A - (6.5-7.5 mm (0.158-0.295 in))

B: Depth of the oil seal installation position
A: Depth of the oil seal installation hole

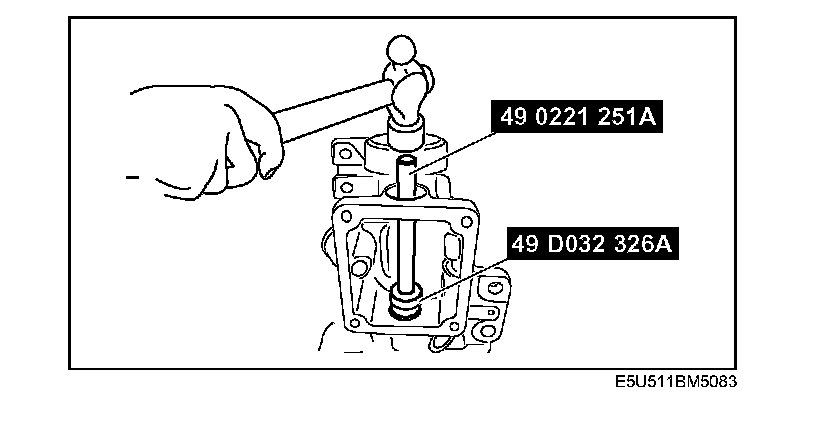

3. Install the oil seal using the SST through the sealing cap hole as shown in the figure.

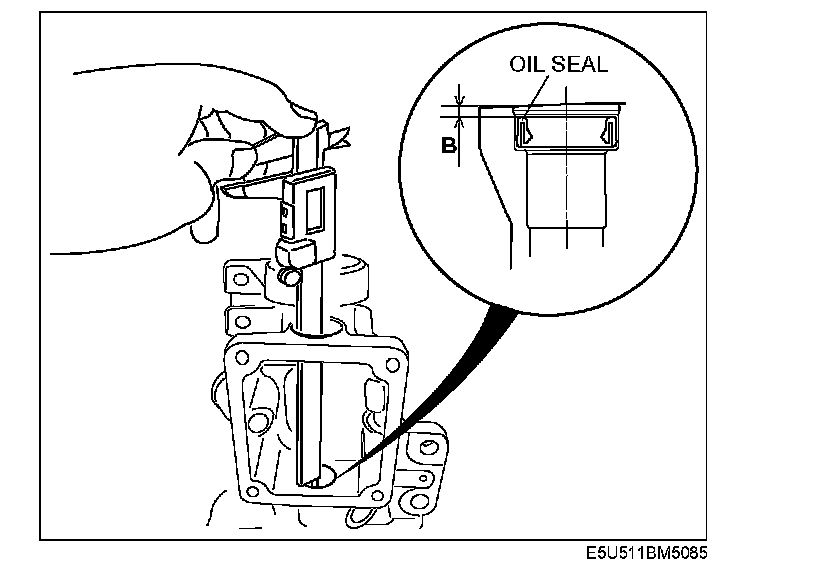

^ Verify that the depth B is within the calculated value in step 2.
