Sealing Cap Assembly Note

Sealing Cap Assembly Note

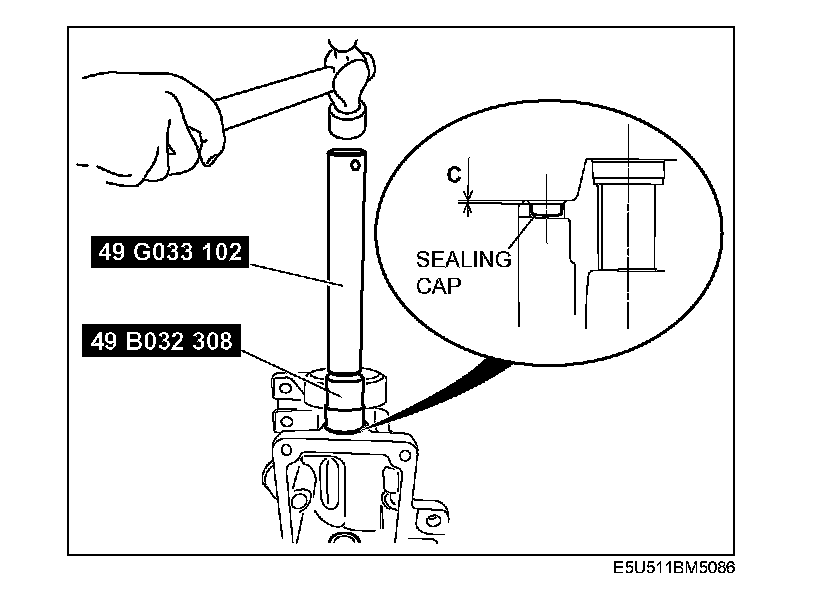

1. Install the sealing cap using the SST.

Caution: Apply silicone sealant to the sealing cap.

Installation depth C:
2.0 - 4.0 mm (0.079 - 0.157 in)
